Shimano 105
Di2 ST-R7170

Shimano 105
Di2 FD-R7150

Shimano 105
Di2 RD-R7150

Shimano 105
BR-R7170

Shimano 105
FC-R7100

Shimano 105
CS-R7101

Fizik
Saddle

Bearing Pedals
Free include
Compare With
- Price
- Weight
- Shifters
- Front Derailleur
- Rear Derailleur
- Crankset
- Brakes
- Frame
- Fork
- Wheelset
- Handlebar
-
$2,699.00
- About 7.99kg(17.6lbs)
- Shimano 105 Di2 R7170
- Shimano 105 Di2 R7150
- Shimano 105 Di2 R7150
- Shimane 105 R7100
- Shimano 105 R7170
- T800+T1000 Carbon Fiber Reinforcement
- T800+T1000 Carbon Fiber Reinforcement
- T800+T1000 Carbon Fiber Reinforcement
- T800+T1000 Carbon Fiber Reinforcement

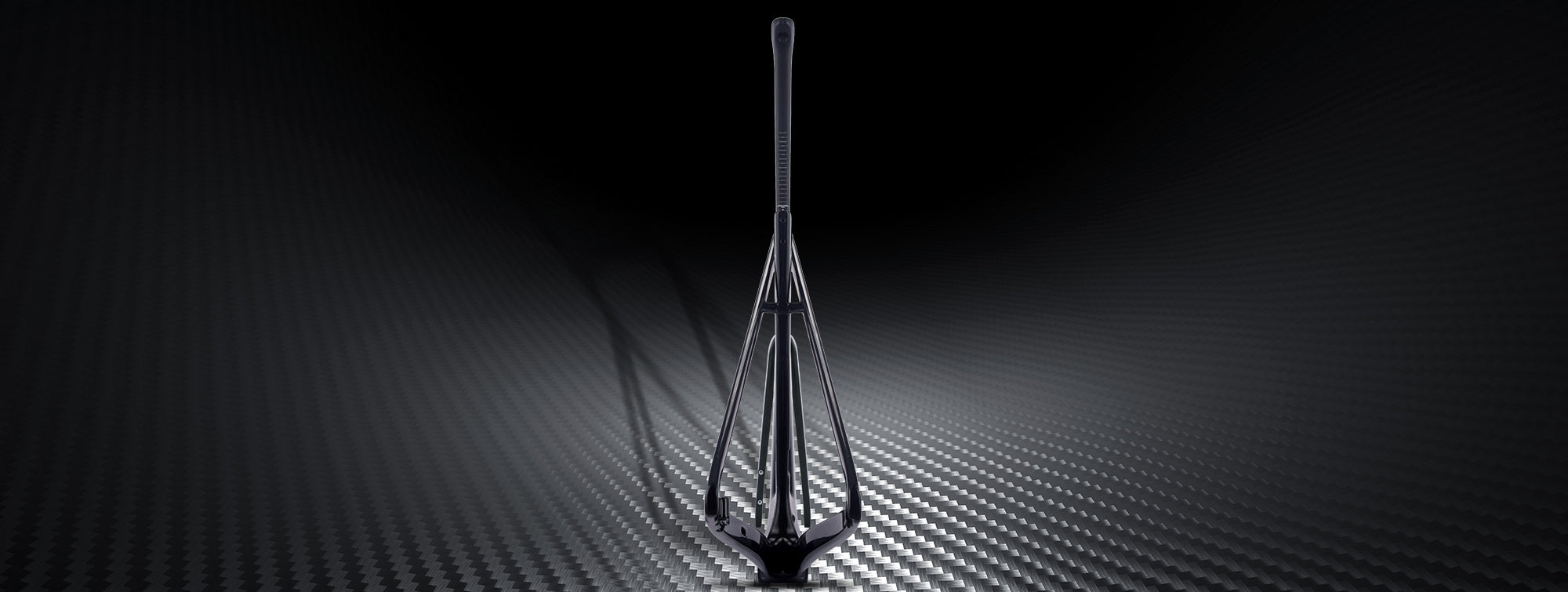

Stronger carbon fiber material structure
Ultra-Lightweight, High-Strength & Impact-Resistant for Ultimate Riding Performance.
T800 carbon fiber is combined with T1000 carbon fiber reinforcement

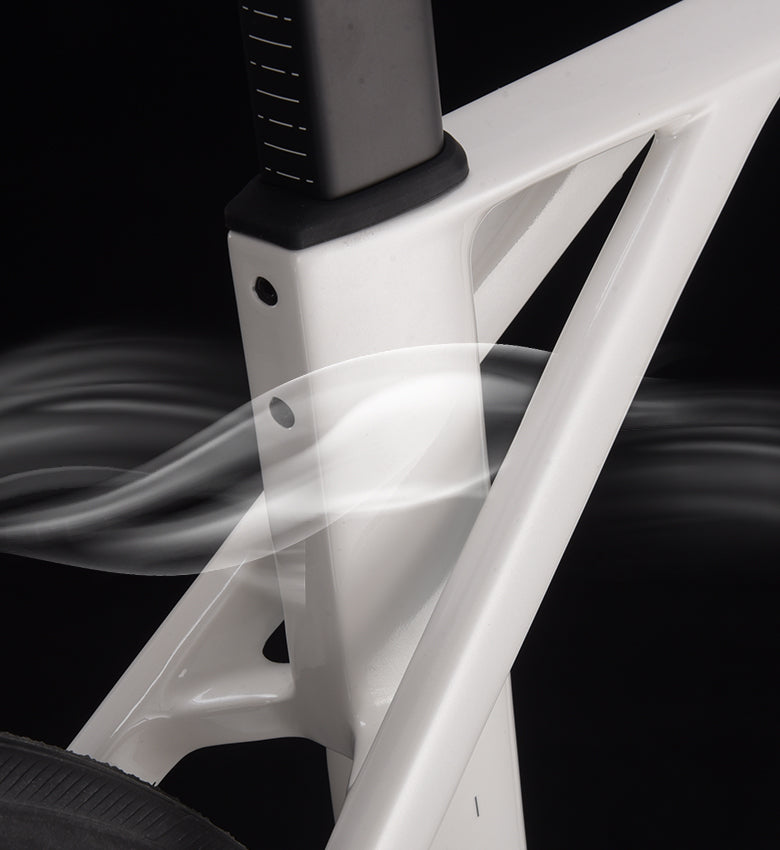

Revolutionary Aerodynamic Design: Upgraded Sava Blade Wind - Cutting Frame
The T1000 - grade carbon fiber reinforcement effectively increases the frame's rigidity while reducing its overall weight, improving riding efficiency and making the ride more precise and stable.
The Sava Blade frame features an innovative tube shape design and connection angles. Meticulously crafted based on aerodynamic principles, it guides airflows, reduces turbulent wind resistance, cuts down energy consumption, and makes cycling more effortless.

Fizik Saddle

Ergonomic seat cushion
SHIMANO 105 Di2 ST-R7170

Shimano 105 Di2 ST-R7170
SHIMANO 105 hydraulic disc levers with Di2 shifting ensure precise, intuitive gear changes.Adjustable reach and custom buttons offeroptimal ergonomics.

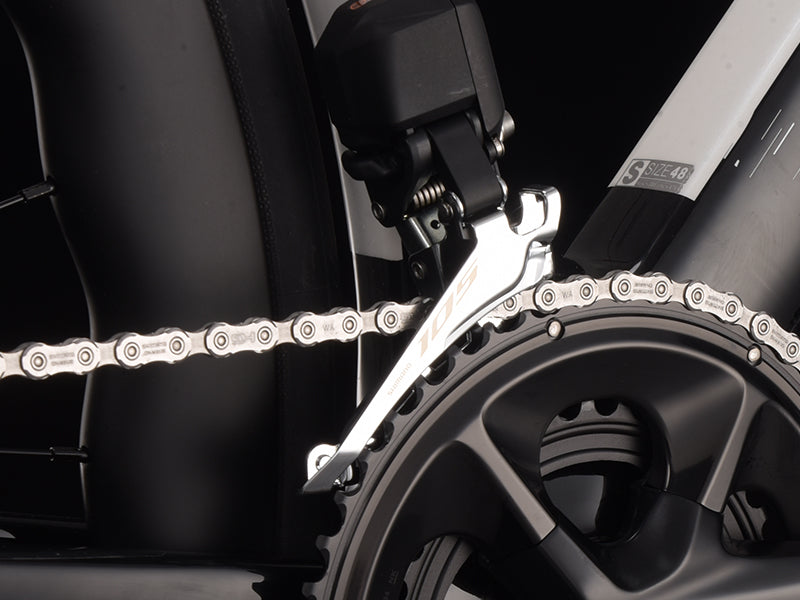

Shimano 105 Di2 FD-R7150

Shimano 105 Di2 FD-R7150

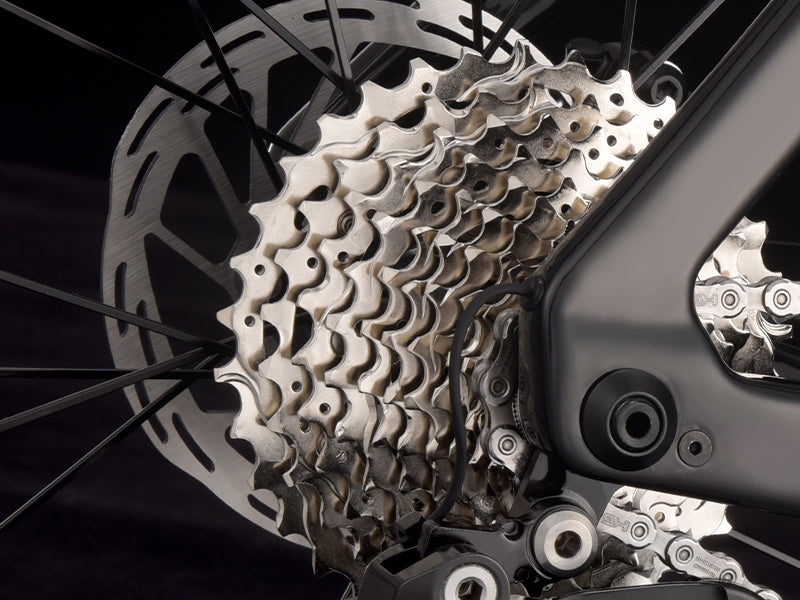

SHIMANO 105 CS-R7101

SHIMANO 105 CS-R7101

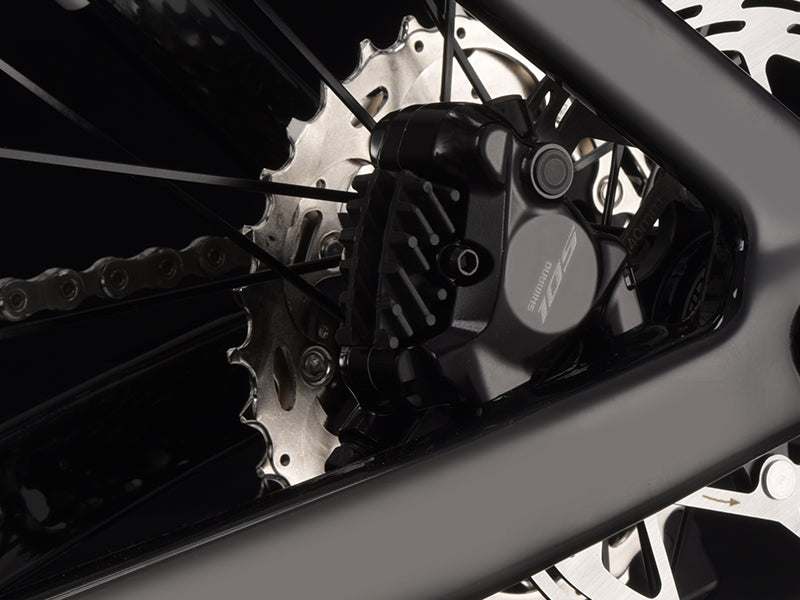

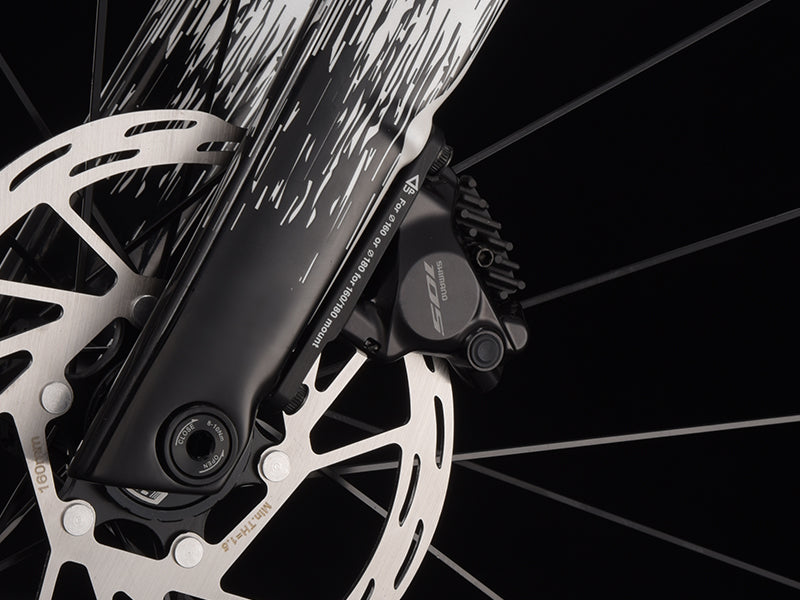

Shimano 105 BR-R7170

Shimano 105 BR-R7170

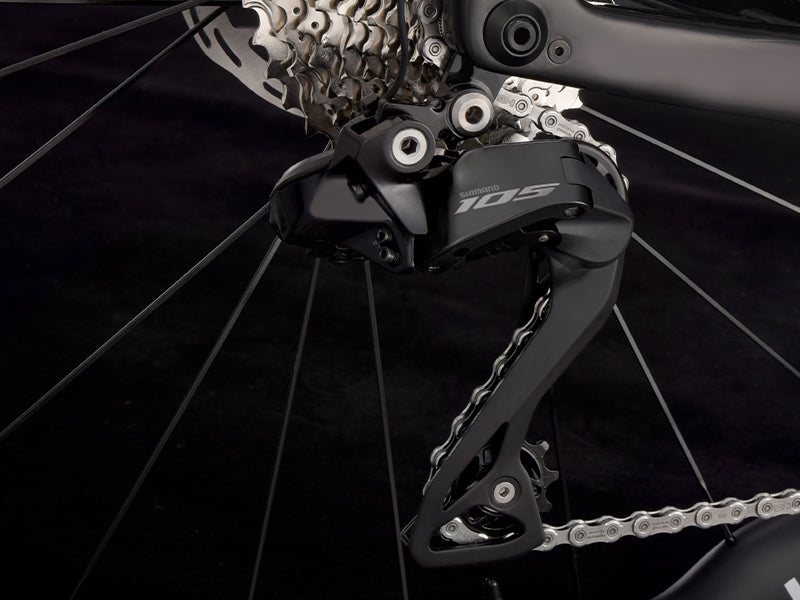

SHIMANO 105 Di2 RD-R7150

SHIMANO 105 Di2 RD-R7150
Shimano-105-BR-R7170

Shimano-105-BR-R7170
Shimano 105 FC-R7100

Shimano 105 FC-R7100

Ergonomic seat cushion

Shimano 105 Di2 ST-R7170
SHIMANO 105 hydraulic disc levers with Di2 shifting ensure precise, intuitive gear changes.Adjustable reach and custom buttons offeroptimal ergonomics.

Shimano 105 Di2 FD-R7150

SHIMANO 105 CS-R7101

Shimano 105 BR-R7170

SHIMANO 105 Di2 RD-R7150

Shimano-105-BR-R7170

Shimano 105 FC-R7100

Parameter | 450(XS) | 480(S) | 500(M) | 520(L) | 540(XL) |
---|---|---|---|---|---|
Recommend Height | 153 - 165cm (5‘0’‘ - 5‘5’‘) | 165 - 175cm (5‘5’‘ - 5’9’‘) | 175 - 180cm (5‘9’‘ - 5‘11’‘) | 180 - 190cm (5‘11’‘ - 6’3’‘) | Above 190cm (Above 6‘3’‘) |
A Seat Tube (mm) | 450 | 480 | 500 | 520 | 540 |
B Top Tube (mm) | 505.77 | 522.4 | 539 | 555.6 | 572.9 |
C BB Drop(mm) | 70 | 70 | 70 | 70 | 70 |
D Chainstay(mm) | 405 | 405 | 405 | 405 | 405 |
E Scat Angle (°) | 75.4° | 74.8° | 74.2° | 73.6° | 73° |
F Head Angle(°) | 71° | 71.9° | 72.5° | 72.9° | 72.9° |
G Front Center(mm) | 580.76 | 579.9 | 585.8 | 592.7 | 603.6 |
H Head Tube Length (mm) | 100 | 118 | 136 | 154 | 173 |
I Fork Offset(mm) | 49 | 49 | 45 | 45 | 45 |
J Reach (mm) | 375.55 | 380.78 | 386.36 | 391.32 | 396.72 |
K Stack (mm) | 499.95 | 521.37 | 539.69 | 558.24 | 576.40 |
L Frok Lenght(mm) | 370.6 | 370.6 | 370.6 | 370.6 | 370.6 |
M Wheelbas (mm) | 974.32 | 974.6 | 980.5 | 987.5 | 998.5 |
N Standover(mm) | 734 | 756 | 778.76 | 794.92 | 813.43 |
