- Full carbon road bike, T1000 carbon frame, fork, wheels, handlebar, seatpost
- R13 Aerodynamic frame
- Ultra-light(7.885kg,17.4lbs)
- Integrate carbon fiber handlebar
- Full internal cable routing
- SHIMANO 105 Di2 R7170 Groupset,Shimano 105 Di2 Derailleur system, Shimano 105 Di2 (ST-R7170) Hydraulic Shift/Brake Levers, Shimano 105 Hydraulic Disc Brake system, Shimano Di2 Internal Battery (BT-DN300), 2 x Shimano Di2 Wires (EW-SD300), Shimano 105 Crankset, Bottom Bracket, Shimano 105 Cassette (CS-R7100), Shimano EW-EC300 Charging Cable
- Semi-wireless
- KMCX12 Chain
- Fizik saddle
- 700*25C IRC tires
Name |
Electronic shifting road bike R13-R7170-24S |
Brand |
SAVA |
Weight |
7.81kg(17.2lbs) (The weight will vary by about 5% depending on the size) |
Frame Size |
49cm ,52cm,54cm,56cm |
Frame |
R13, T1000 carbon fiber, internal cable 700C*540*142 |
Fork |
R12, T1000 carbon fiber, internal routing 700C*100 |
Front Hub |
SHIMANO HB-RS470. 28H |
Rear Hub |
SHIMANO FH-RS470. 10/11-SPD |
Rims |
Carbon fiber 25MM 700C*28H*38 |
Thru Axle |
Hollow type, front M12*100, rear M12*142 |
Tire |
IRC JETTY SK/KT 700*25C 60TPI |
Inner tube |
IRC 700C TPU 700*25C nozzle (F/V) 60MM |
Headset |
Jingye Bearing 52+52 Bearing + Top Cover + Screws |
Handlebar |
T1000 carbon fiber integrated handlebar 420*31.8 |
Seatpost |
R13 T1000 carbon fiber. Special-shaped 350MM |
Crankset |
SHIMANO FC-R7100.105 12-SPEED. 2. 170MM, 50-34T |
Bottom bracket |
SHIMANO SM-BB71-41B PRESS FIT TYPE |
Left shift lever |
SHIMANO 105 ST-R7170(L), BR-R7170(F), FOR 140MM. 800MM |
Right shift lever |
SHIMANO ST-R7170(R), BR-R7170(R)25MM. 1500MM |
Front derailleur |
SHIMANO FD-R7150. 105 12-SPEED. CS-ANGLE: 61-66. GEAR: 50-52T, CL: 44.5MM |
Rear derailleur |
SHIMANO RD-R7150. 105 12-SPEED. W/TL-EW300 |
Flywheel |
SHIMANO 105 CS-R7100. 12-SPEED, 11-12-13-14-15-17-19-21-24-27-30-34T |
Disc brake rotor |
SHIMANO SM-RT70 SS 140MM |
Chain |
KMCX12 |
Pedals |
Sanyun CS-201A BS reflective PP black body + black aluminum frame + 10B21 axis + loose bead structure |

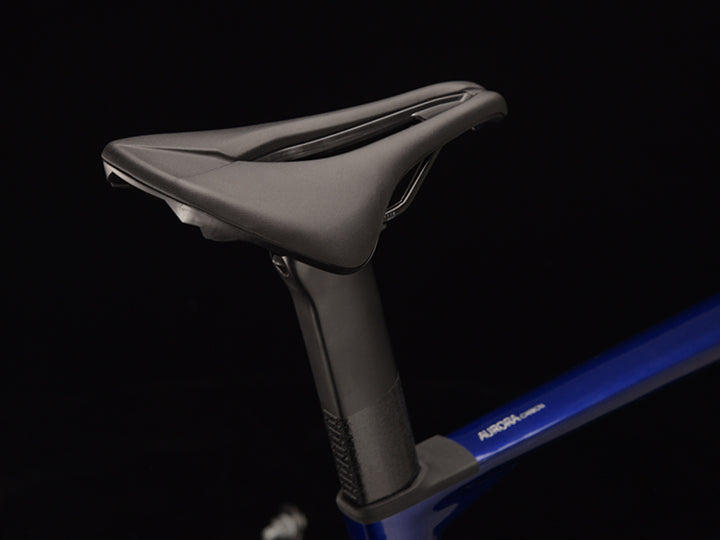

Saddle |
Fizik |
Battery |
SHIMANO, EW-SD300, 600MM, EW-SD300, 1200MM |
Recommend size:
Frame size | Recommend size (cm) | Ft+In |
49cm | 160cm-166cm | 5'3''-5'5'' |
52cm | 167cm-175cm | 5'6''-5'9'' |
54cm | 175cm-180cm | 5'9''-5'11'' |
56cm | 180cm-190cm | 5'11''-6'3'' |
58cm | above 190cm | above 6'3'' |
Geometry:
1.Bikes ship from :
Locations:
a. Shipping from the US warehouse can only be sent to the US (Except Hawaii, and Puerto Rico).
b. Shipping from European warehouses can only be sent to European countries
c. Shipped from Chinese factory, can be shipped to the world
Some bikes ship from China :
Notice:After we received your order. It usually takes 6-8 working days for production, assembly, debug, packing, and sent out
USA :Free Shipping. About 6-8 working days
Shipping Way:By SF/UPS/DHL/FEDEX/TNT,EMS air express
Tax: Free
CA:Free Shipping.About 10-15 working days
Shipping Way:By SF/UPS/DHL/FEDEX/TNT,EMS air express
Tax :About 90-120 CAD,buyer pay
Mexico:Free Shipping .About 10-15 working days,
Shipping Way:By DHL/TNT/FEDEX/UPS air express
Tax:buyer pay
EU Countries:Shipping fee:$200 .About 12-18 working days,
Shipping Way:By /DPD/UPS/DHL air express,
Tax :Free
AU:Shipping fee:$200.About 15-25 working days,
Shipping Way:By EMS/Zoom2 Dedicated logisitcs
Tax :Free
UK:Shipping fee:$200 .About 12-18 working days,
Shipping Way:By DPD/Royal Mail air express
Tax :Buyer pay
South America: Shipping fee $480 .About 20-30 working days,
Shipping Way:By DHL/UPS/FedEx
Tax:Buyer pay
Asia:Free Shipping.About 6-12 working dyas,
Shipping Way:By SF/EMS,Dedicated logistitcs,
Tax :Free
Africa:Shipping fee:$250 About 20-35 working days,
Shipping Way:By Dedicated logistics,
Tax :buyer pay
Some bikes ship from US warehouse:
Available Countries:USA
Shipping fee:Free
Shipping Time:About 3-5 working days
Tax :Free
Some bikes ship from EU warehouse:
Available Countries:Austria,Belgium,Czech Republic,Poland,Portugal,Romania,Serbia,Denmark,Slovakia,Slovenia,Spain,Sweden,Switzerland,Turkey,Finland,France,Greece,Hungary,Italy,Norway,Netherl
Shipping fee: Free
Shipping Way:DPD About 3-7 workding days
Tax:Free

"Rejecting the Use of a Single Bicycle Frame for the Entire Bike"
We have independently invested in modeling after team research and multiple testing phases for various bicycle models,primarily to enhance safety performance and riding experience.

Carbon Fiber Streamlined Bicycle Frame Structural Design
Enhancing Aerodynamic Performance of the Frame, Assisting Riders in Dealing with Headwinds and Crosswinds Effortlessly, Unleashing Cycling Speed to the Maximum.

Lightweight and Agile Bicycle Frame Design
Developed Through Aerodynamic Testing, Not Only Reducing Weight but also Converting More Power, Simultaneously Enhancing Overall Maneuverability.
Road bike carbon fiber part marking
Carbon fiber bikes are both lightweight and durable, using aerodynamics for better sprint performance, making starting and accelerating effortless.

Carbon handlebar
Carbon fiber bicycles are not only light but also possess elasticity and shock-absorption properties. This provides a comfortable grip and enhances maneuverability during rides.

Carbon fork
After various improvements, the sleek carbon fiber front fork becomes lightweight, reduces resistance, enhances sideways strength, and boasts a distinctive aerodynamic design, leading to precise bike control.

Carbon fiber front and rear wheelsets
Reliable wheels are vital for riders. Our new carbon fiber wheel design combines lightweight, rigidity, and aerodynamics, ensuring smooth airflow for quick starts and rapid accelerations

Carbon Fiber Frame/Seatpost
While ensuring lightweight, rigidity, and impact absorption, carbon fiber bike frames undergo aerodynamic performance testing to optimize airflow paths. This enhances frame aerodynamics, enabling riders to adeptly handle headwinds and crosswinds, maximizing cycling speed

Integrated Full Internal Cable Routing Design
The intricate interior craftsmanship achieves a clean and stylish exterior, reducing aerodynamic drag and minimizing the collision between cable housing and the bicycle frame.
CE Certified & UCI Approved
"CE certification guides consumers in choosing safe, high-quality products while preventing substandard ones from entering the market. UCI certification confirms recognition by the International Cycling Union."

Aerodynamic Design of Bicycle Frame Front End
The streamlined design of the bicycle frame's front end is developed through aerodynamic performance testing, and this performance is most prominently demonstrated during uphill ascents, showcasing its advantages.
SHIMANO DI2 R7170 Groupset

Shimano 105 Di2 ST-R7170
The handle conforms to ergonomic design features, allowing for worry-free electronic gear shifting that is more accurate and intuitive.

Shimano 105 Di2 FD-R7150
Shifting is more accurate and coordinated with the support of Di2, which allows you to choose between fully synchronized shifting or semi-synchronized shifting functions, providing the rider with an excellent shifting experience.

Shimano 105 Di2 RD-R7150
The rear derailleur reaches new heights of performance for Shimano, with a high-performance motor and optimized link mechanism for instantaneous shifting.

Shimano 105 BR-R7170
Race grade brakes with new piston design and 10% wider clamp gap to effectively avoid disc rubbing, experience the thrill of breaking through.

Shimano 105 FC-R7100
The crank is optimized with a balance of lightness and efficiency using second-generation hollow technology, and shifting performance is significantly improved thanks to the special construction.

Shimano 105 CS-R7100
12-Speed Precision Road Bike Cassette Flywheel maintains higher efficiency and acceleration in all conditions for a wide range of riders.
Shimano configuration display
"The new Shimano 105 introduces a high-performance era, using years of research to enhance gear combinations, featuring a specialized braking system, and utilizing the versatile Di2 platform with precise ergonomic design."
Brake Performance Schematic
Shimano 105 R7170 brakes have excellent heat dissipation technology. The shorter the braking distance, the safer it is. Below is a diagram of the braking distance.
