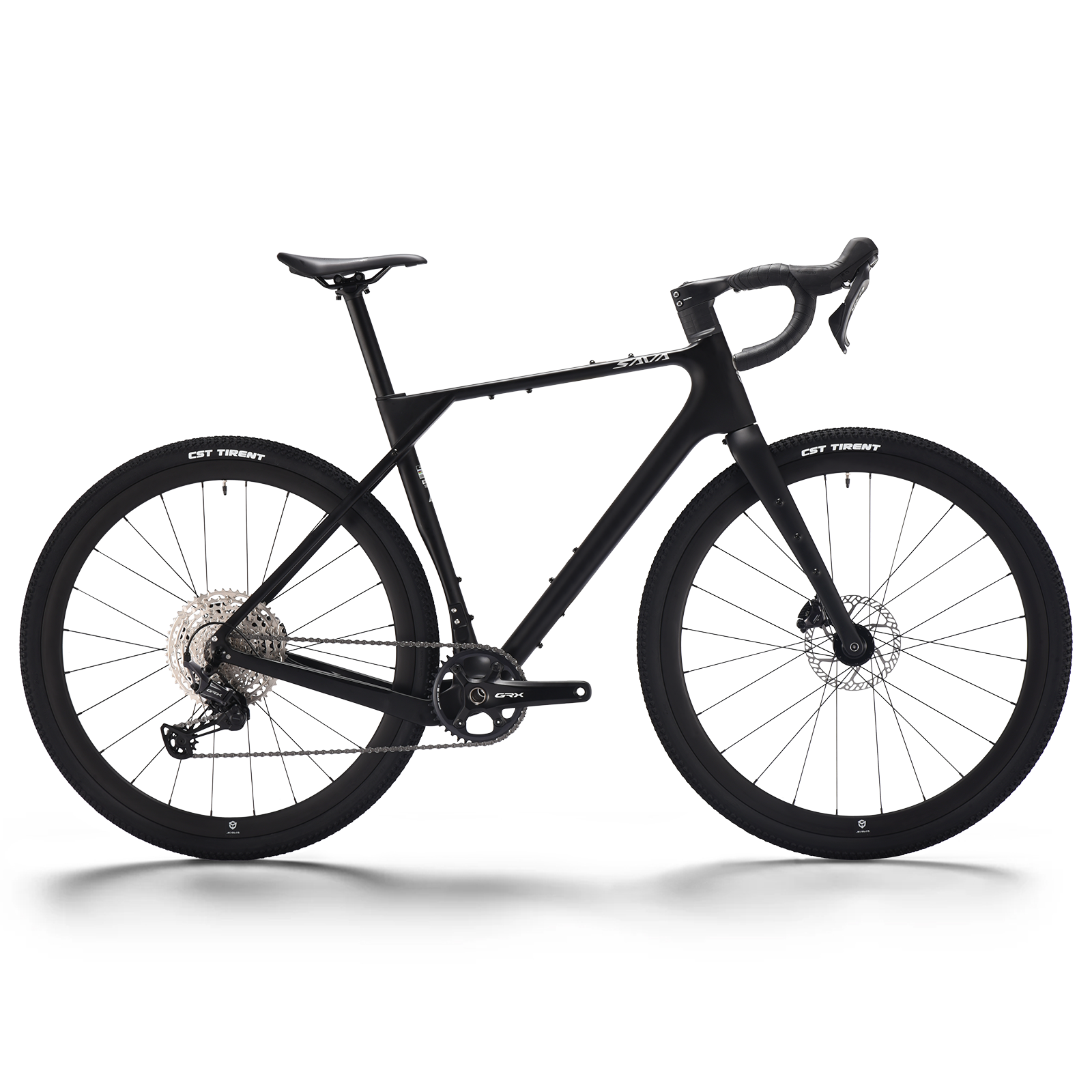

SAVA Gelaro S8-GRX820 Carbon Gravel Bike 12S
| Parameter | 440(XS) | 470(S) | 510(M) | 540(L) | 560(XL) |
|---|---|---|---|---|---|
| Recommend Height | 155 - 165cm (5'1"~ 5'5") | 165 - 175cm (5'5"~ 5'9") | 173- 183cm (5'8"~ 6'0") | 180- 190cm (5'11"~ 6'3") | Above190cm(Above 6'3") |
| A Seat Tube (mm) | 443.3 | 471.5 | 511.5 | 541.5 | 562 |
| B Top Tube (mm) | 505 | 520 | 535 | 550 | 559 |
| C BB Drop(mm) | 70 | 70 | 70 | 70 | 70 |
| D Chainstay(mm) | 410 | 410 | 410 | 410 | 410 |
| E Scat Angle (°) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| F Head Angle(°) | 71.2° | 71.2° | 71.4° | 72° | 72° |
| G Front Center(mm) | 555.8 | 570.3 | 585.5 | 594.5 | 604 |
| H Head Tube Length (mm) | 95 | 97.5 | 122.5 | 144.5 | 164.5 |
| I Fork Offset(mm) | 45 | 45 | 45 | 45 | 45 |
| J Reach (mm) | 358.4 | 370 | 378 | 387 | 390.3 |
| K Stack (mm) | 509.3 | 516.6 | 534 | 554.5 | 580.5 |
| L Frok Lenght(mm) | 373 | 373 | 373 | 373 | 373 |
| M Wheelbas (mm) | 966.6 | 969.9 | 984.8 | 994.3 | 1004 |
| N Standover(mm) | 734 | 753 | 787 | 807 | 826 |
Notice:The recommended size is for reference only. Please determine the size that suits you based on the frame geometry.
- Low stock - 10 items left
- Free Shipping
- Home Delivery

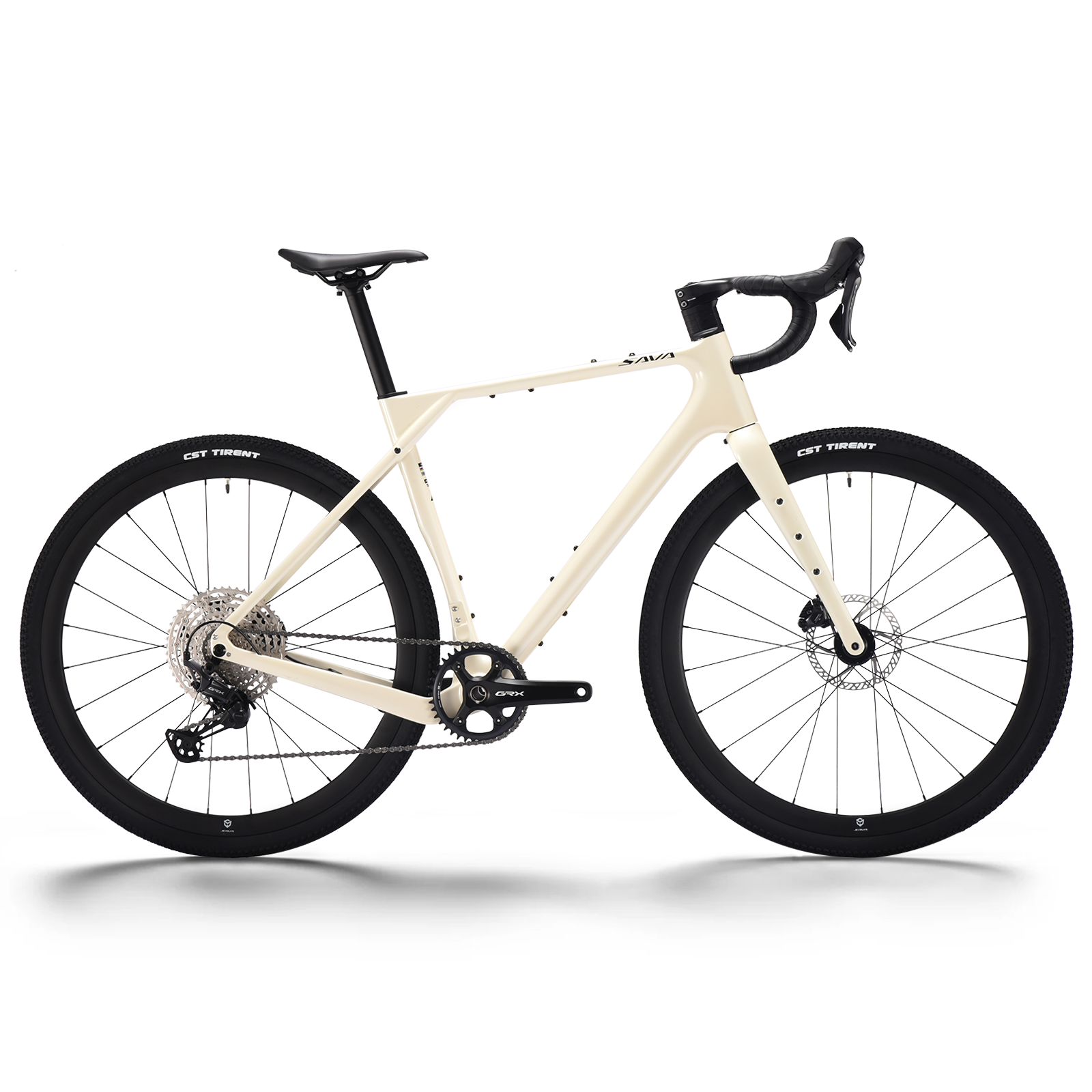

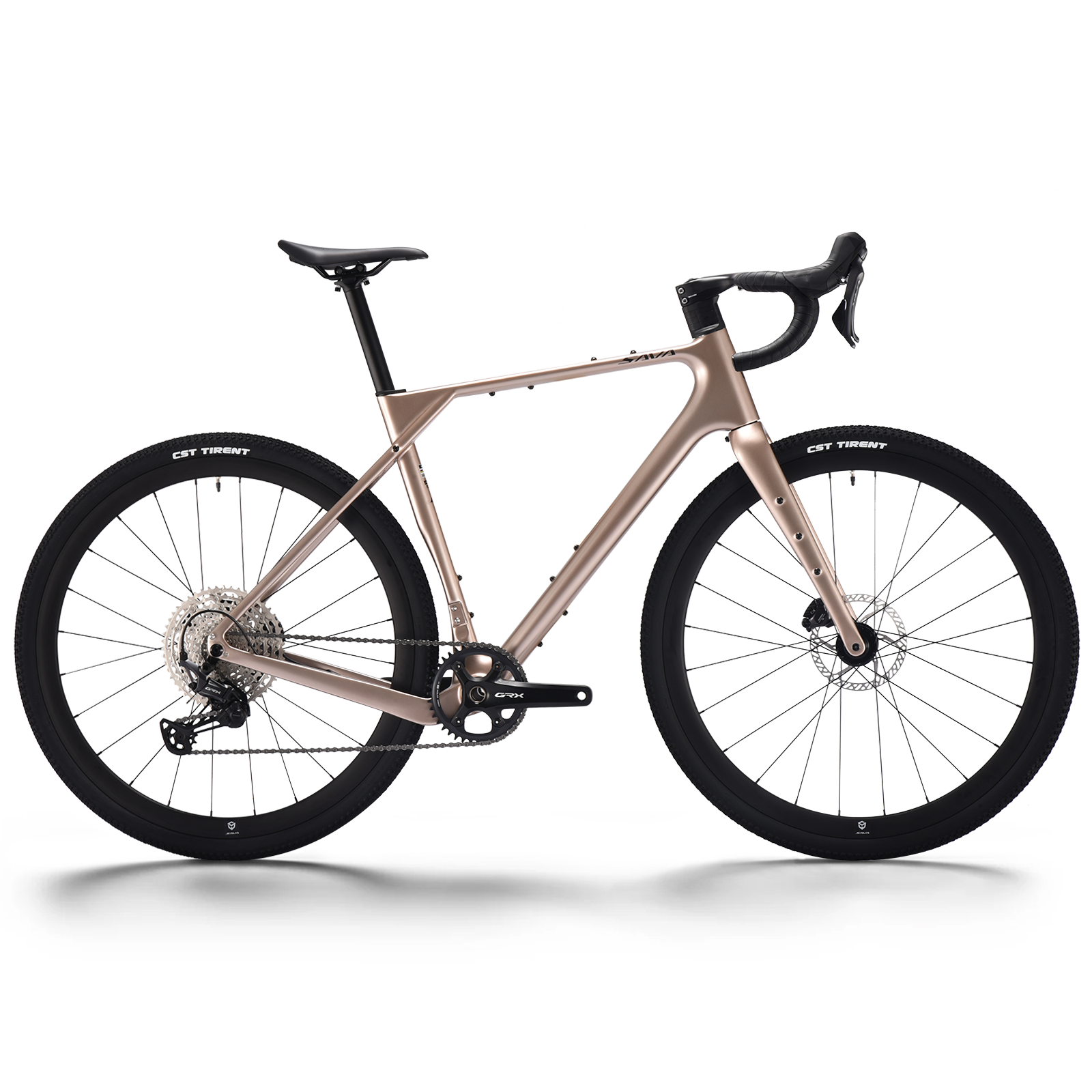

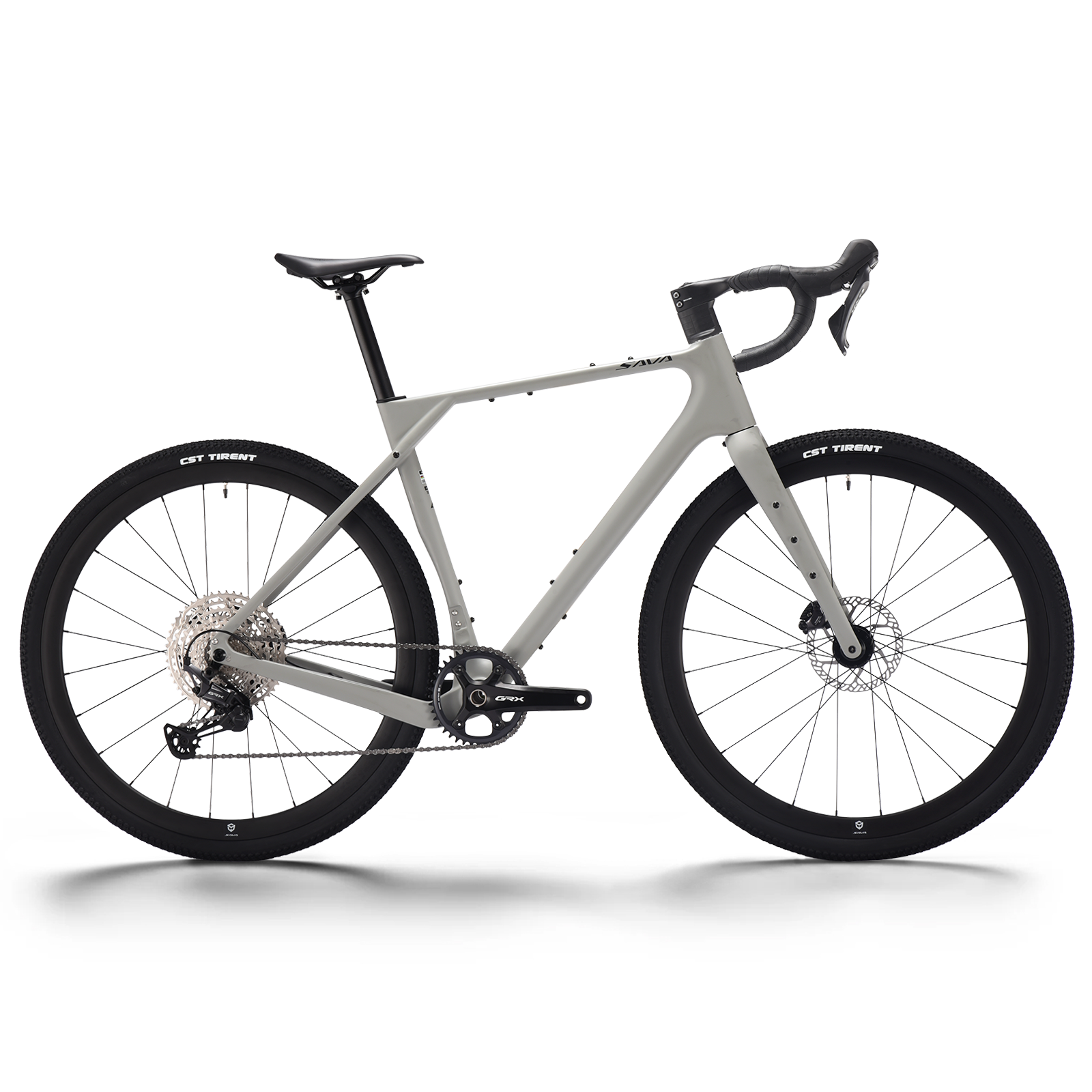

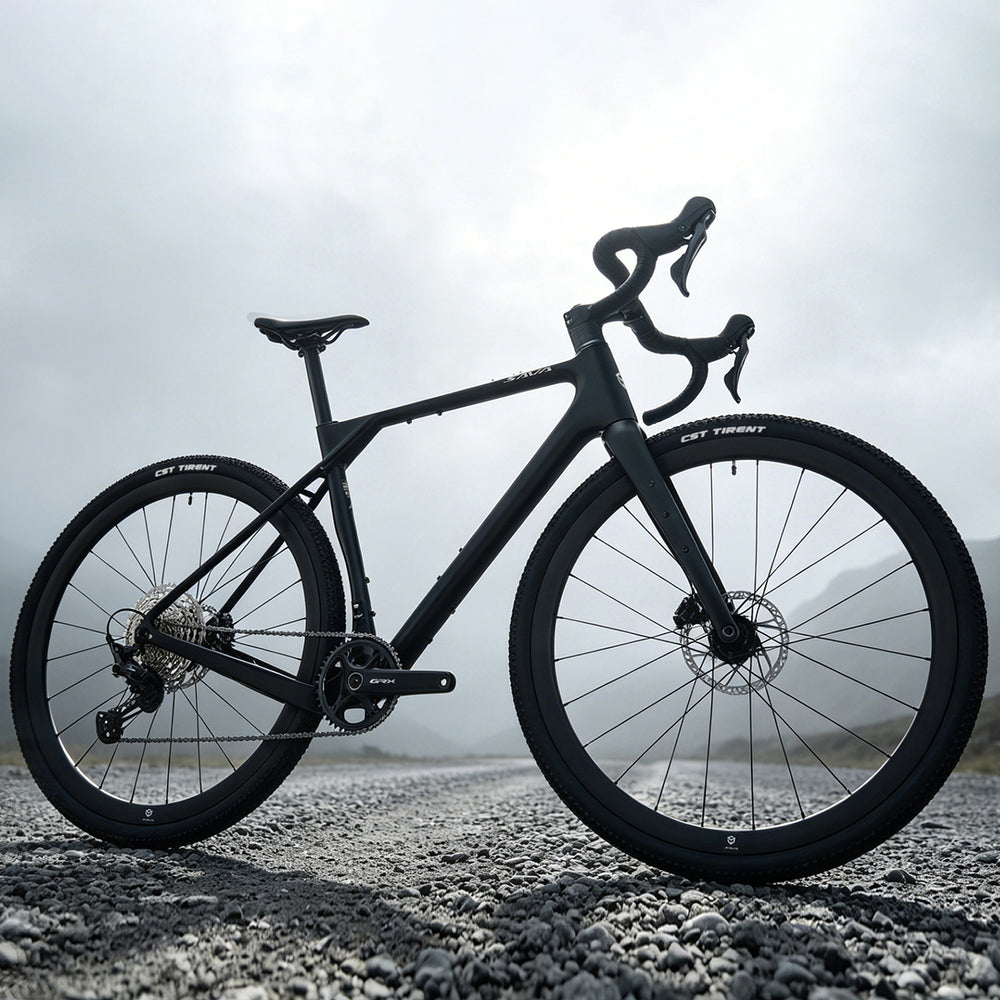

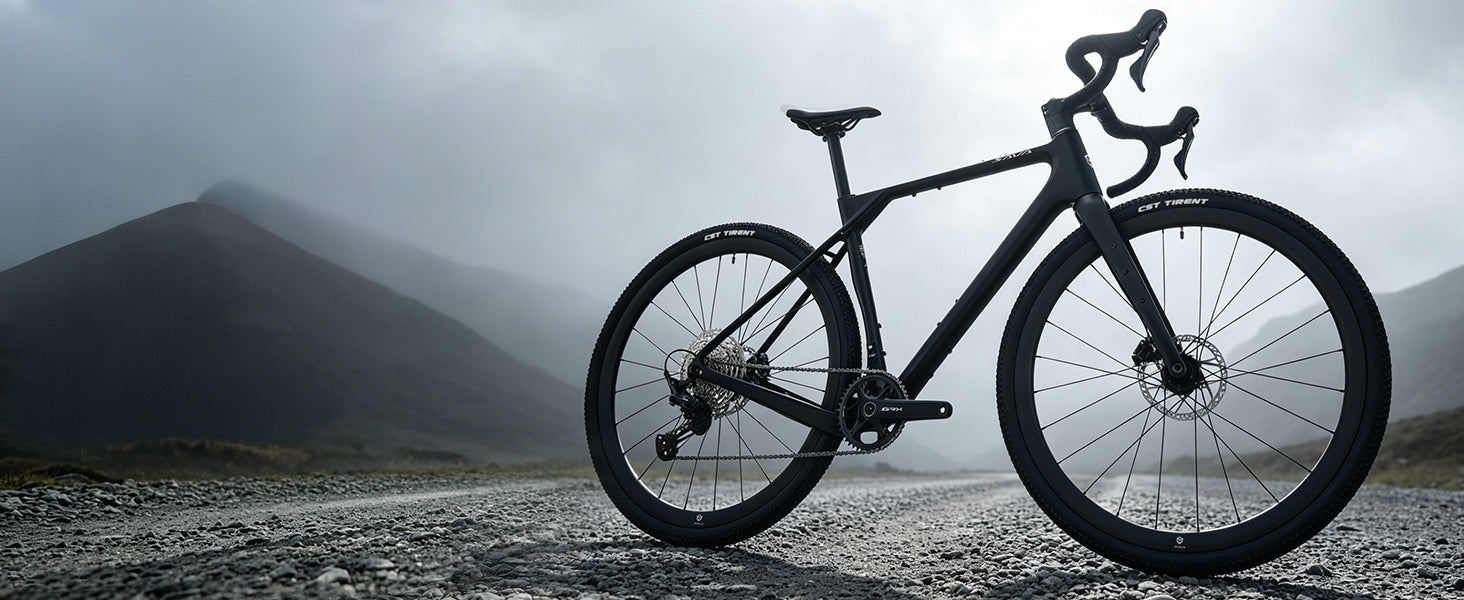

The 2026 Gelaro S8 features a premium full carbon fiber frame and carbon fork, built with high-modulus carbon fiber for lightweight agility, all-day riding comfort and rugged off-road durability. It is finished with premium matte paintwork in four luxury color options — Misty Gray, Elegant White, Classic Black and Desert Gold — delivering refined texture, scratch resistance and timeless high-end styling.

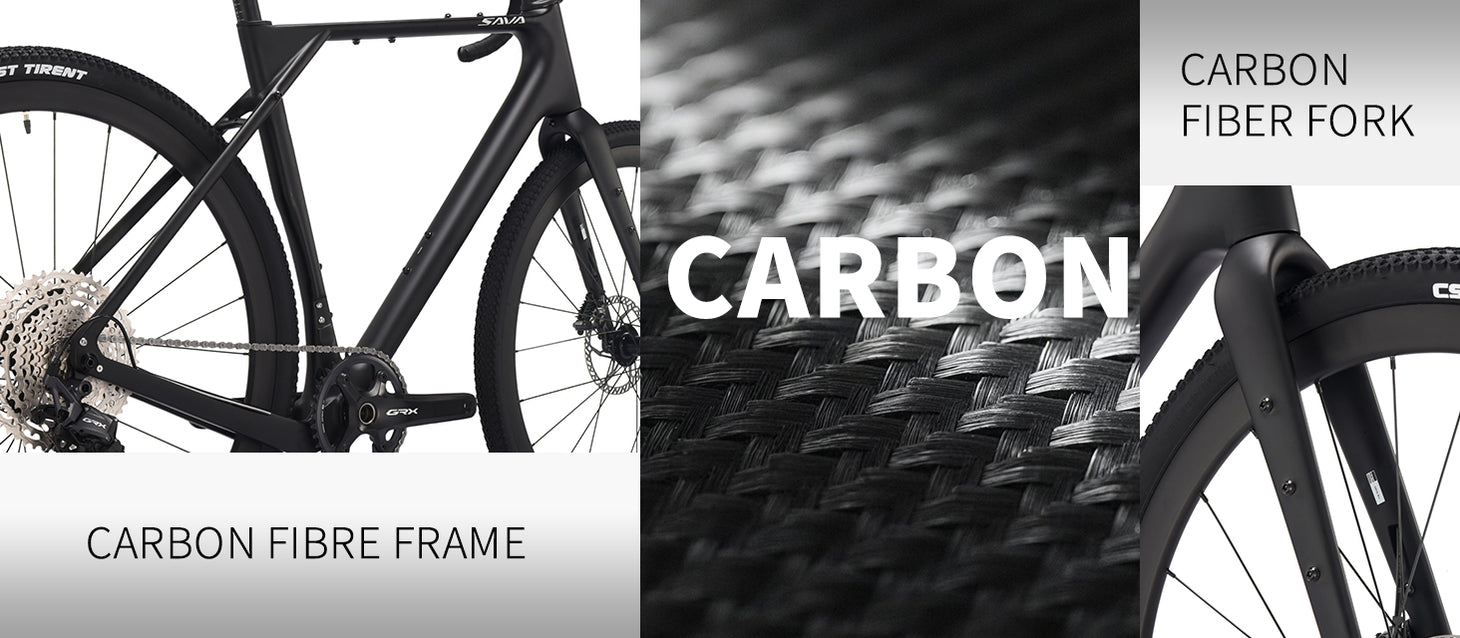

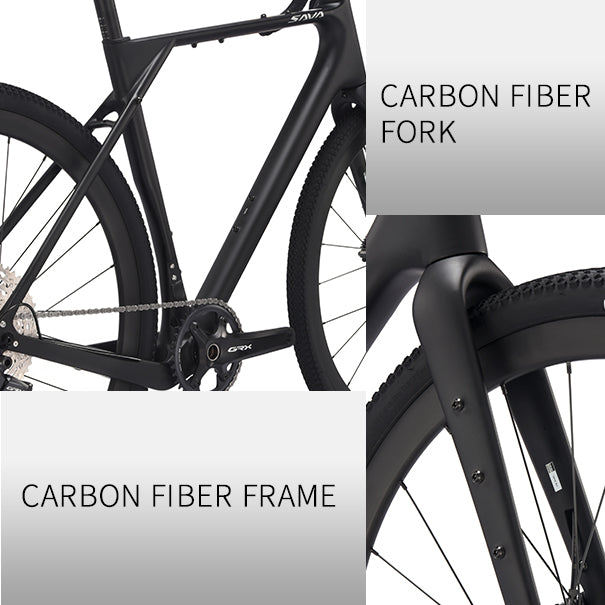

- T800 Carbon fiber frame& Fork
- Full internal cable routing design

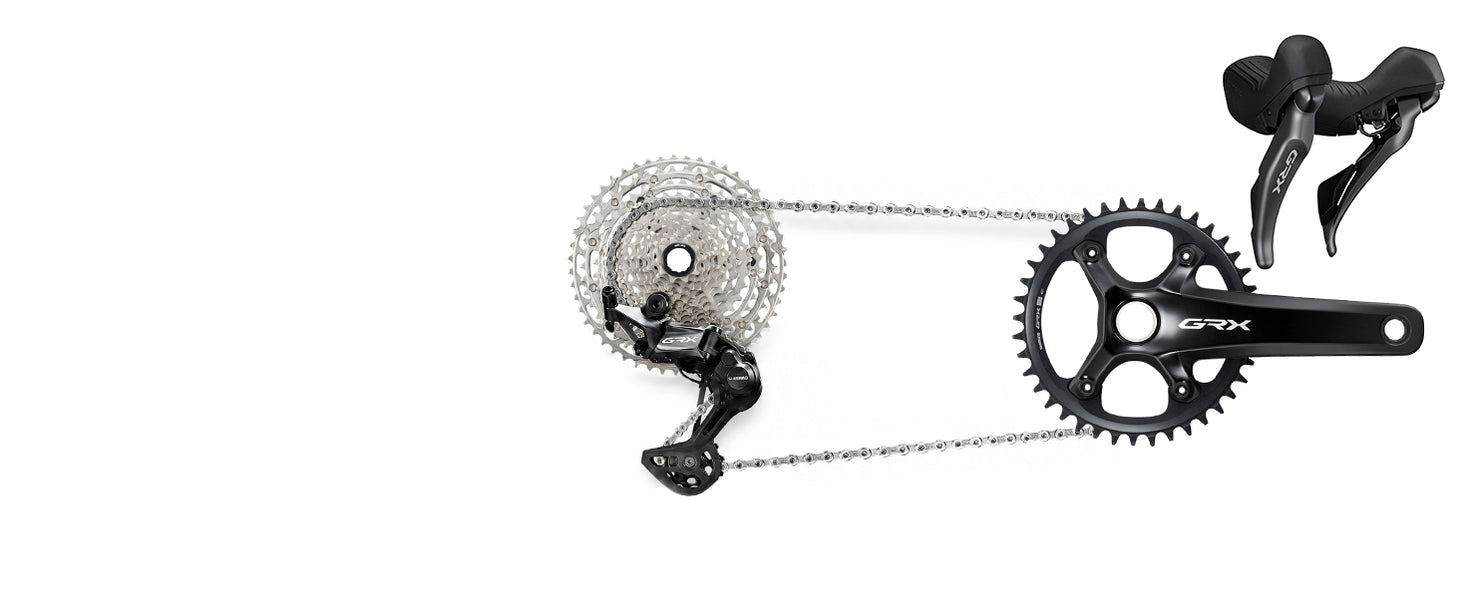

- SHIMANO GRX820 1×12-speed professional gravel groupset

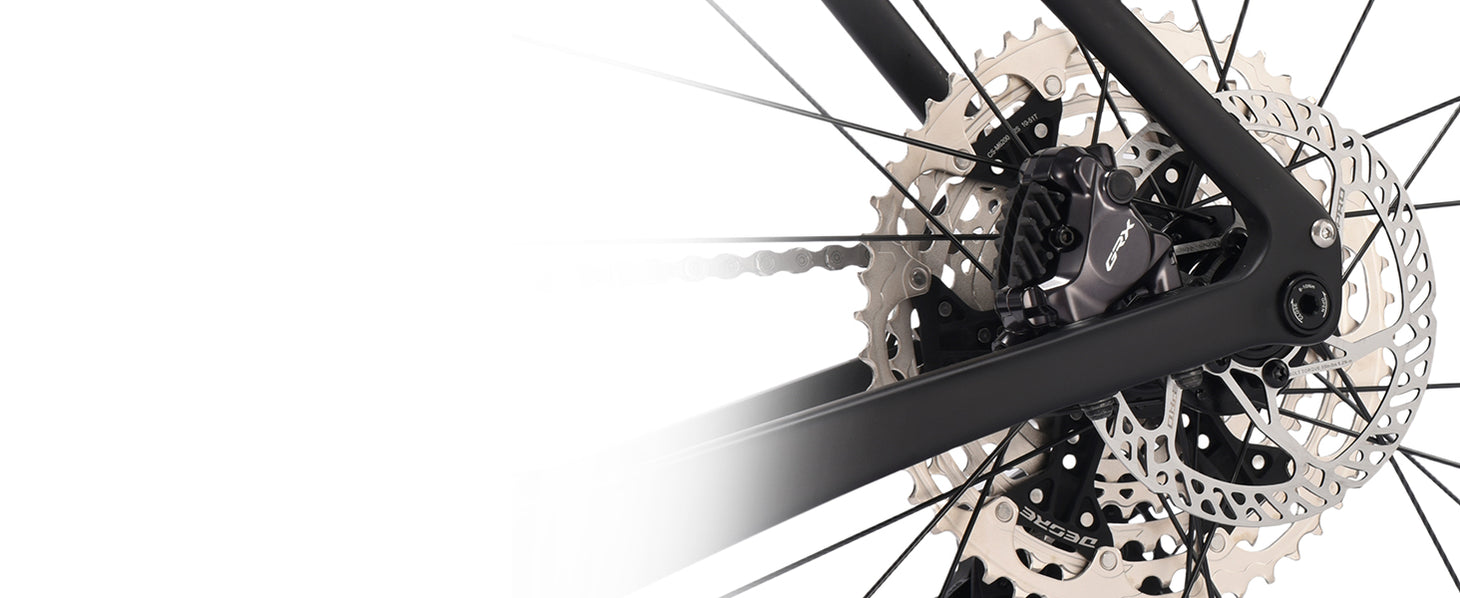

- Hydraulic disc brake

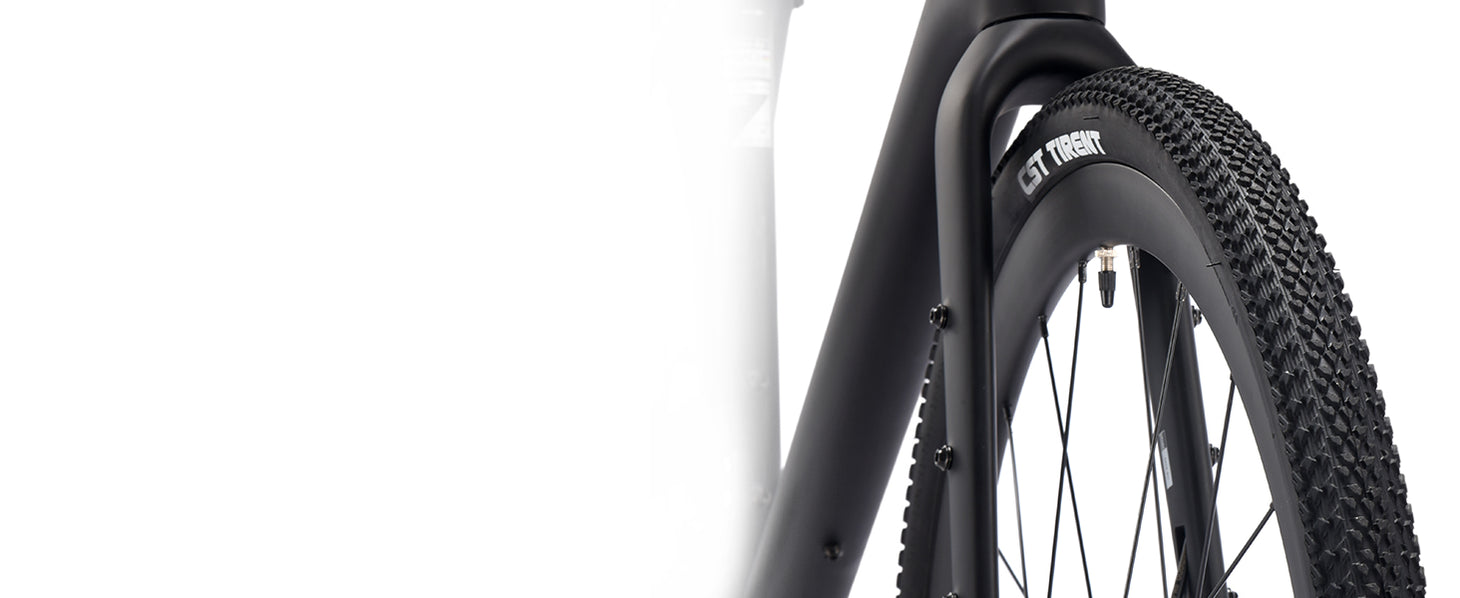

- 700×40C gravel tires, compatible up to 45C

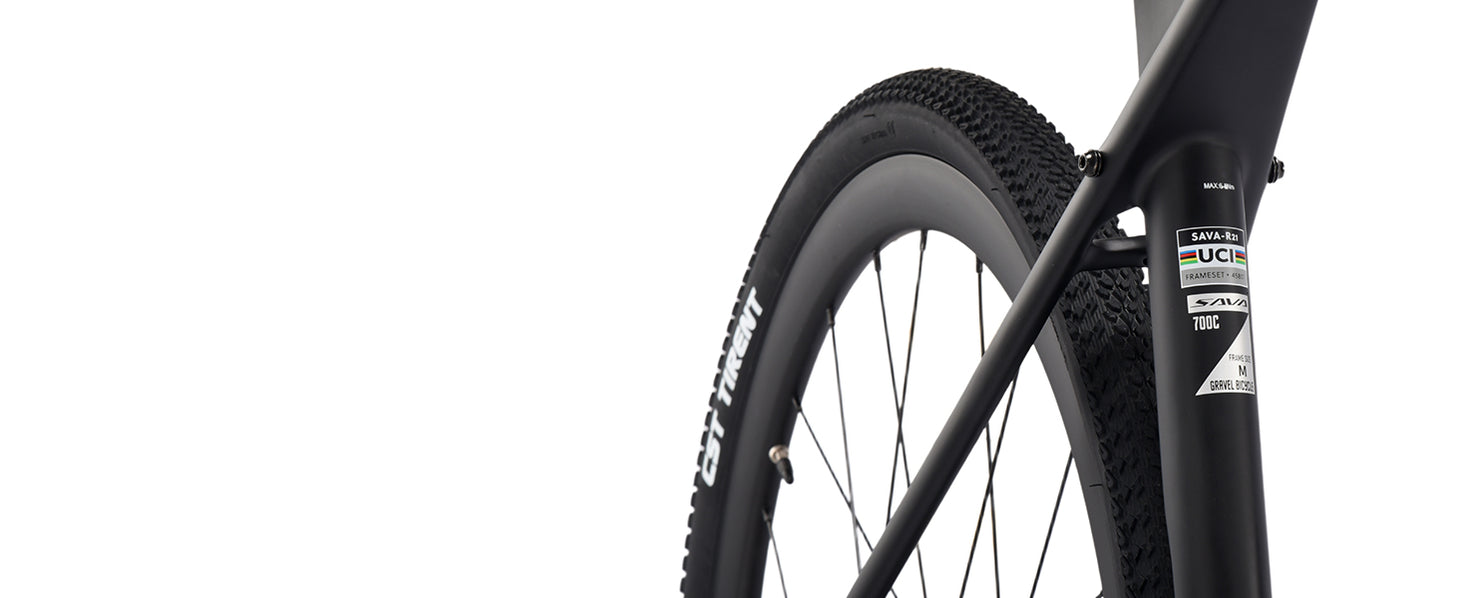

- Official UCI certified frame
Model:SAVA Gelaro S8 R21-GRX820-12S
Weight:About 10.2kg
Size:47cm,49cm,51cm,53cm,55cm,58cm
Color:Mist Grey,Desert Gold,Elegant White,Classic Black
FRAMESET

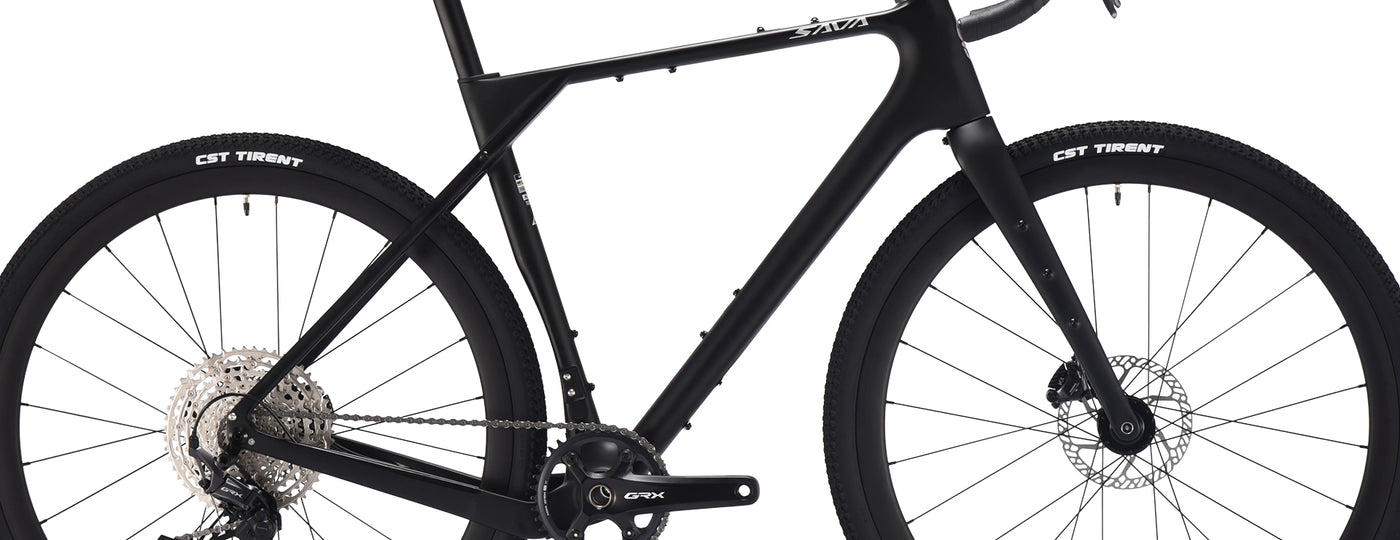

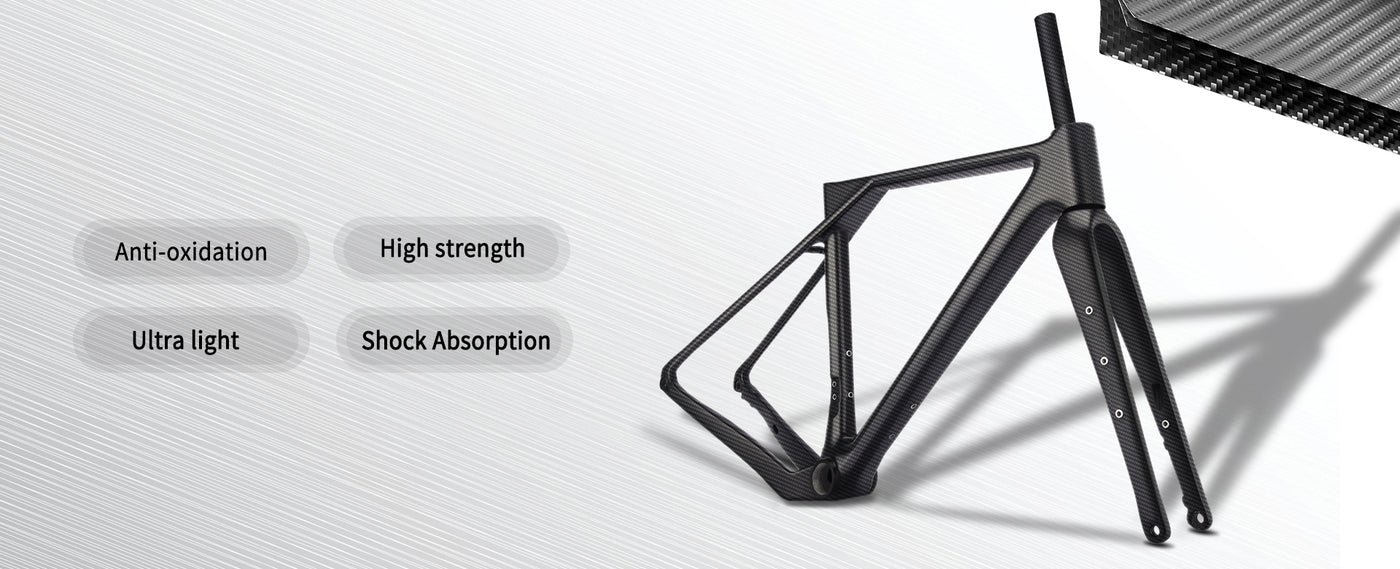

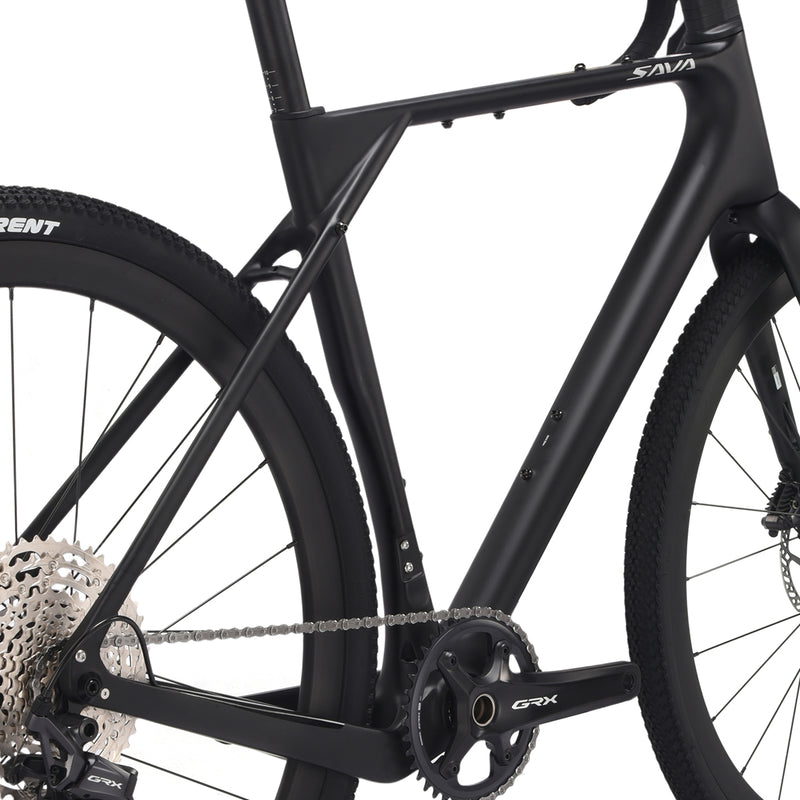

Frame:R21 frame T800 Carbon Fiber
Fork:R21 fork,T800 carbon fiber
Seat post:Aluminum,31.6*350mm
DRIVETRAIN
Rear Derailleur:SHIMANO GRX RD-RX822
Crankset:SHIMANO GRX FC-RX820-1
Cassette:SHIMANO CS-M6200-12
Shifters:SHIMANO GRX RX820
Brakes:SHIMANO BR-RX820
Chain:SHIMANO CN-M6100
WHEELSETS
Wheels:Aluminum,700C*1.5*14G*24H
Rotors:160mm,140mm, 6-Bolt Lock
Tires:700*40C
COMPONENTS

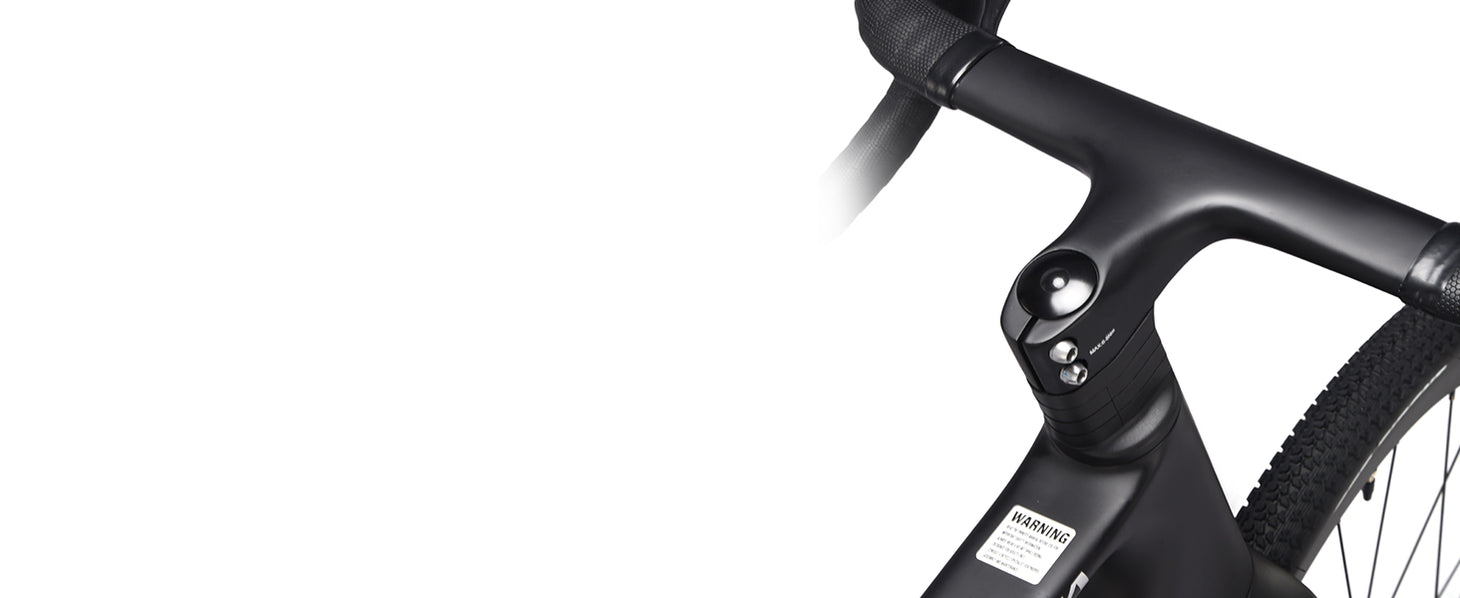

Handlebar:Aluminum Flared Drop Bar,φ28.6*400*480MM
Saddle:YBT-K785,pu
Pedals:9/16” Flat pedals(free include)
The standard brake is set to control the front brake with the left hand and the rear brake with the right hand, please let us know if you want to change it.
| Parameter | 470(XS) | 490(S) | 510(M) | 535(L) | 550(XL) | 580(XXL) |
|---|---|---|---|---|---|---|
| Rider Height(cm) |
Below 166cm
|
166-174cm
|
172-180cm |
178-186cm
|
186-192cm
|
Above 190cm |
| Rider Height(ft/in) |
Below5‘5’‘
|
5'5" – 5'9"
|
5‘8’‘-5’11‘’ |
5‘10’‘-6‘1’‘
|
6‘1’‘-6’4‘’
|
Above 6'3" |
| A Seat Tube (mm) | 470 | 480 | 510 | 550 | 580 | 580 |
| B Top Tube (mm) | 512.4 | 530.1 | 557.6 | 576.2 | 591.9 | 604.8 |
| C BB Drop(mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| D Chainstay (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| E Seat Angle (°) | 74° | 74° | 73° | 73° | 73° | 73° |
| F Head Angle (°) | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° |
| G Front Center(mm) | 582.2 | 601.1 | 618.1 | 638.1 | 655.8 | 664.4 |
| H HeadTube (mm) | 110 | 140 | 160 | 190 | 210 | 220 |
| I Fork Offset (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| J Reach (mm) | 360 | 369 | 380 | 390 | 400 | 410 |
| K Stack (mm) | 533.6 | 561.8 | 580.6 | 608.9 | 627.7 | 637.1 |
| L Fork Length(mm) | 394 | 394 | 394 | 394 | 394 | 394 |
| M Wheelbase (mm) | 1000.7 | 1019.8 | 1037.6 | 1057.7 | 1074.4 | 1087.8 |
|
N Standover(mm) |
769.8
|
792.29
|
810.6
|
837.97
|
851.94
|
869.8
|
Notice:The recommended size is for reference only. Please determine the size that suits you based on the frame geometry.
