Parameter | 470(XS) | 480(S) | 510(M) | 535(L) | 550(XL) | 580(XXL) |
---|---|---|---|---|---|---|
A (mm) | 470 | 480 | 510 | 550 | 580 | 580 |
B (mm) | 512.4 | 530.1 | 557.6 | 576.2 | 591.9 | 604.8 |
C (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
D (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
E (°) | 74° | 74° | 73° | 73° | 73° | 73° |
F (°) | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° |
G (mm) | 582.2 | 601.1 | 618.1 | 638.1 | 655.8 | 664.4 |
H (mm) | 110 | 140 | 160 | 190 | 210 | 220 |
I (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
J (mm) | 360 | 369 | 380 | 390 | 400 | 410 |
K (mm) | 533.6 | 561.8 | 580.6 | 608.9 | 627.7 | 637.1 |
L (mm) | 394 | 394 | 394 | 394 | 394 | 394 |
N (mm) | 1000.7 | 1019.8 | 1037.6 | 1057.7 | 1074.4 | 1087.8 |
Height Range | Below 166cm | 166 -174cm | 172-180cm | 178-186cm | 186-192cm | Above 190cm |

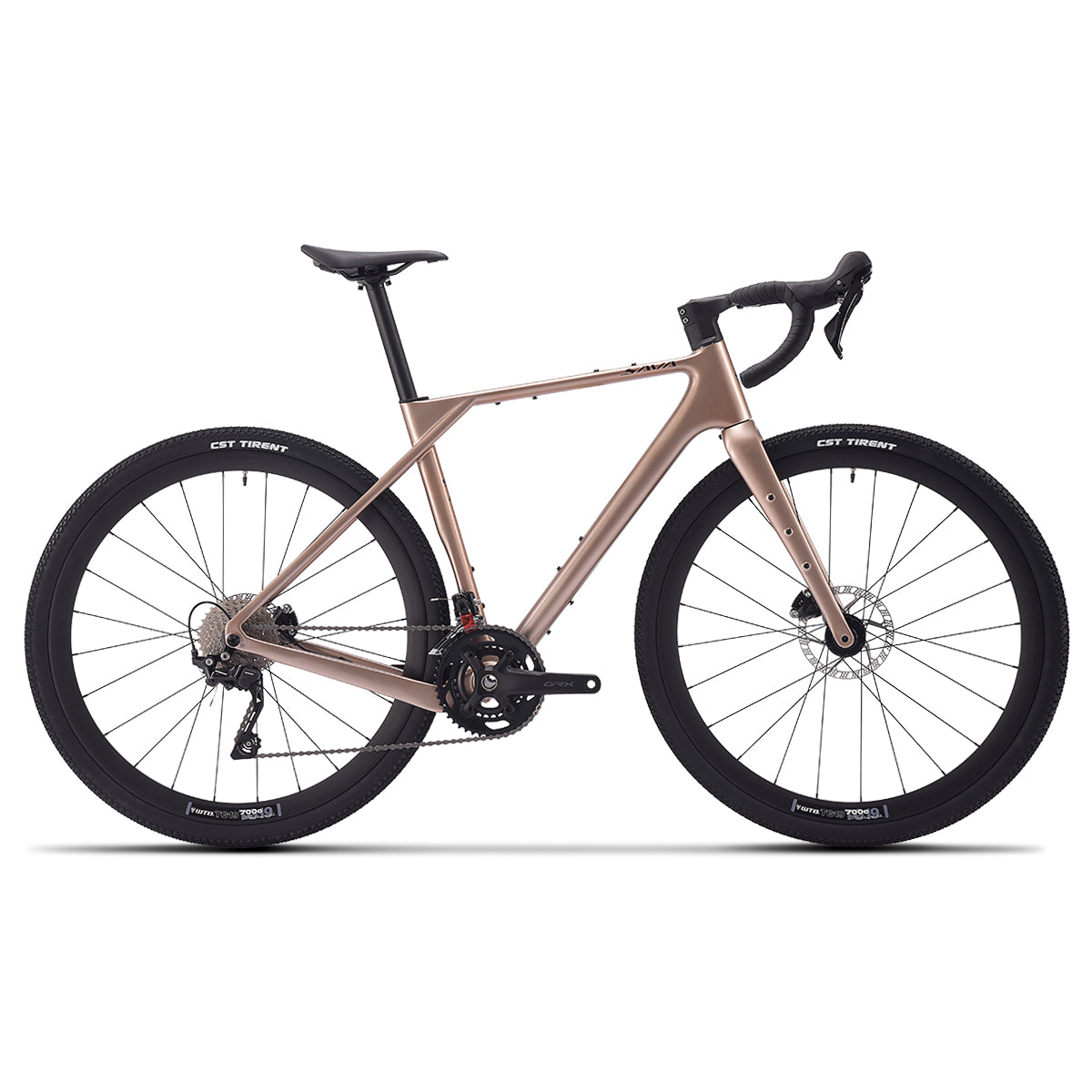

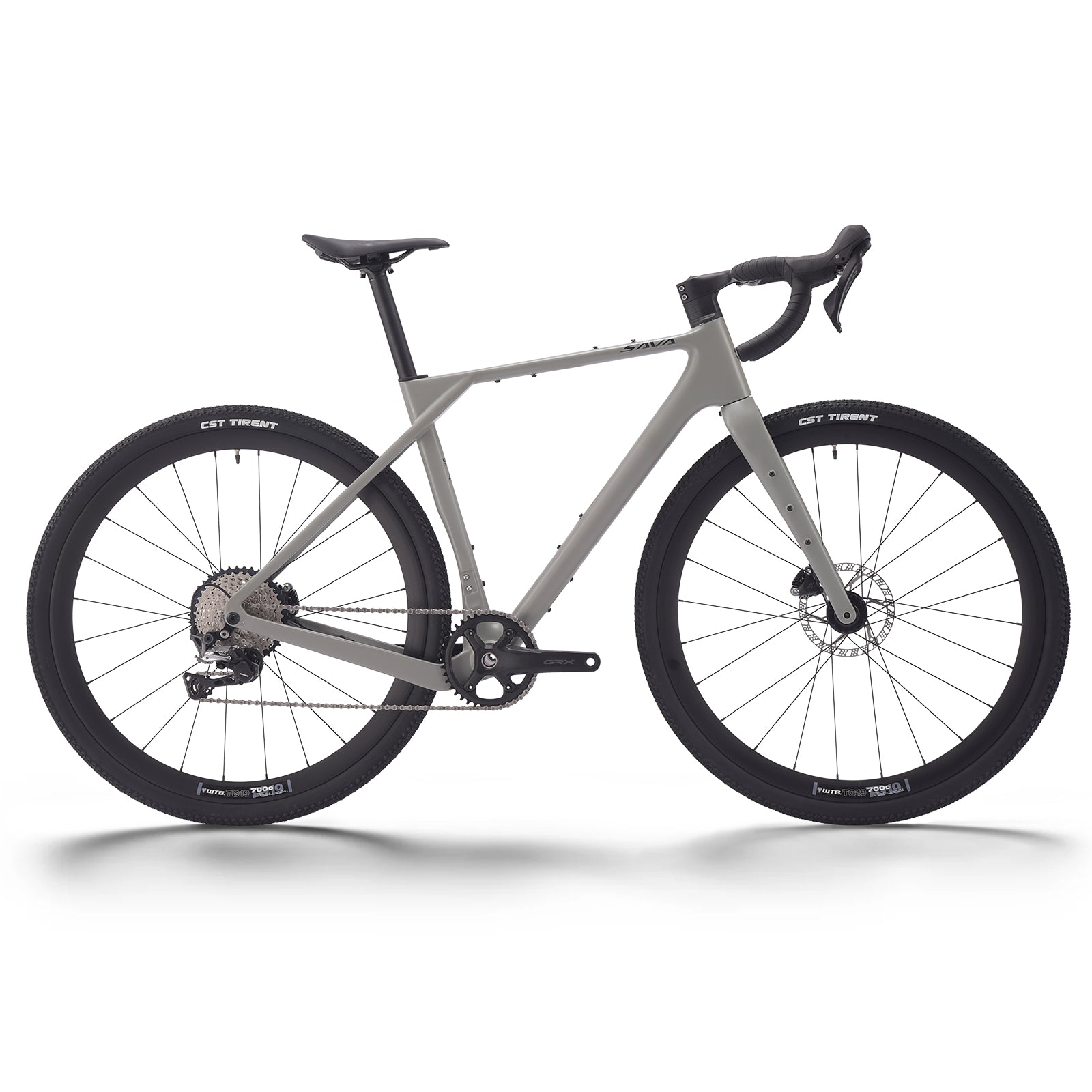

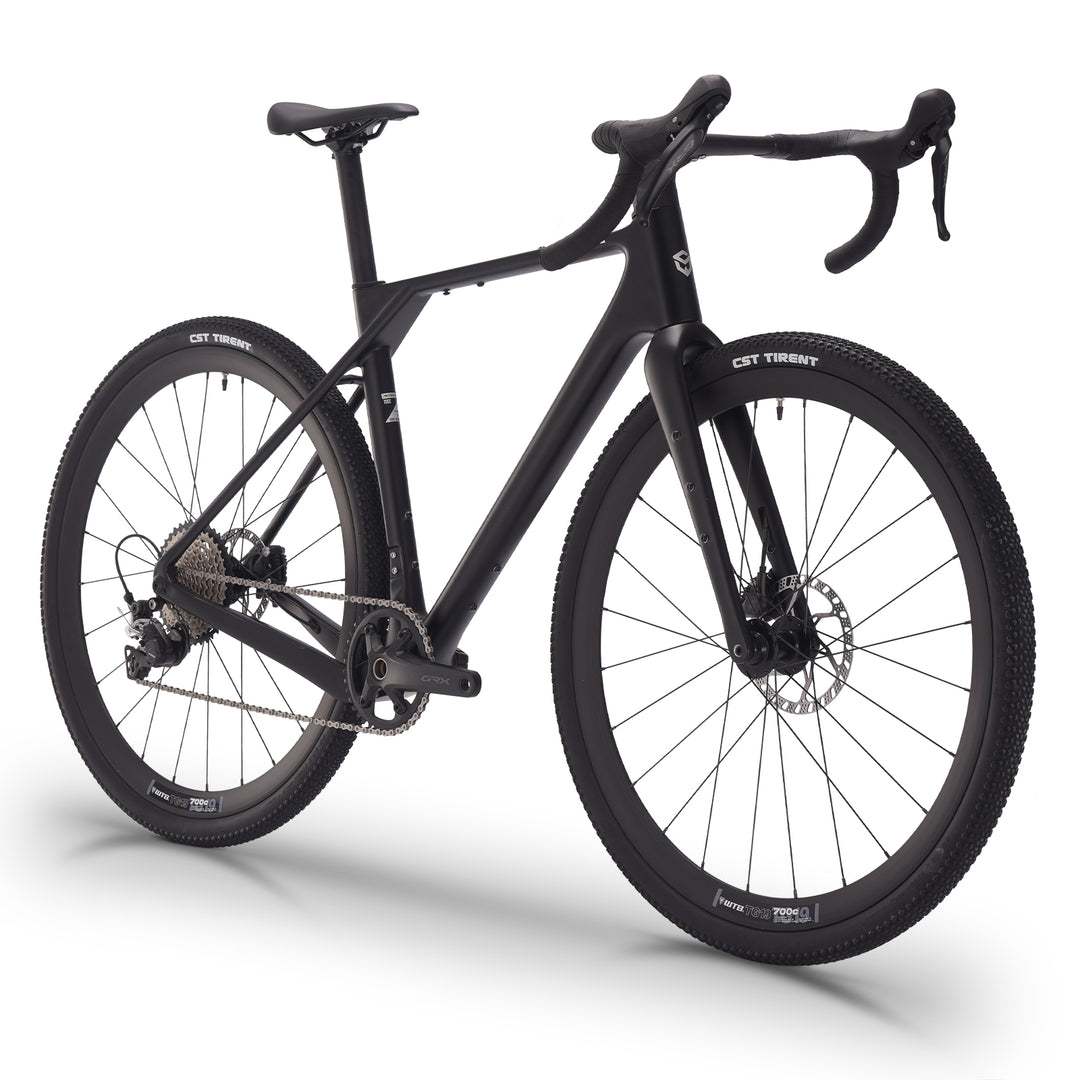

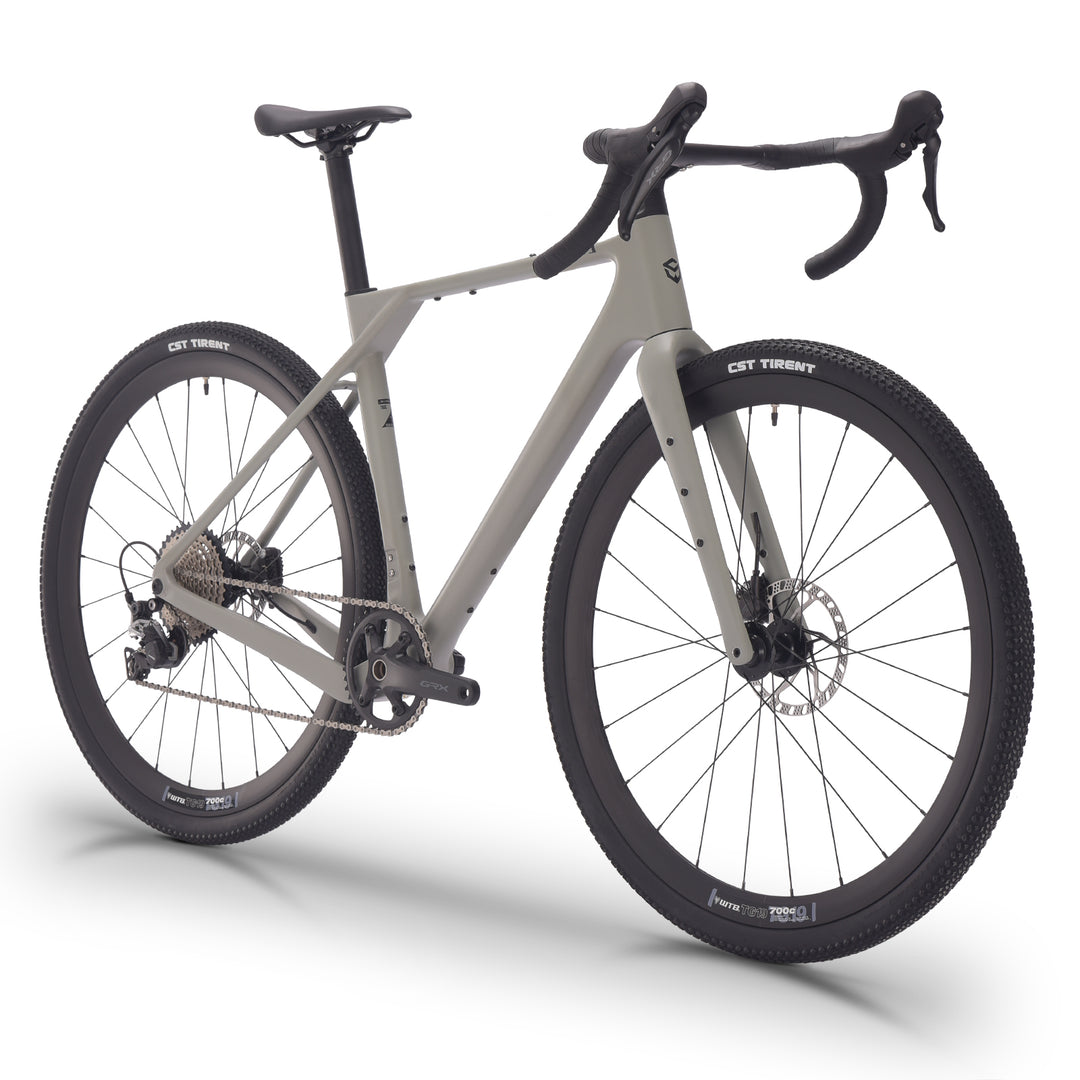

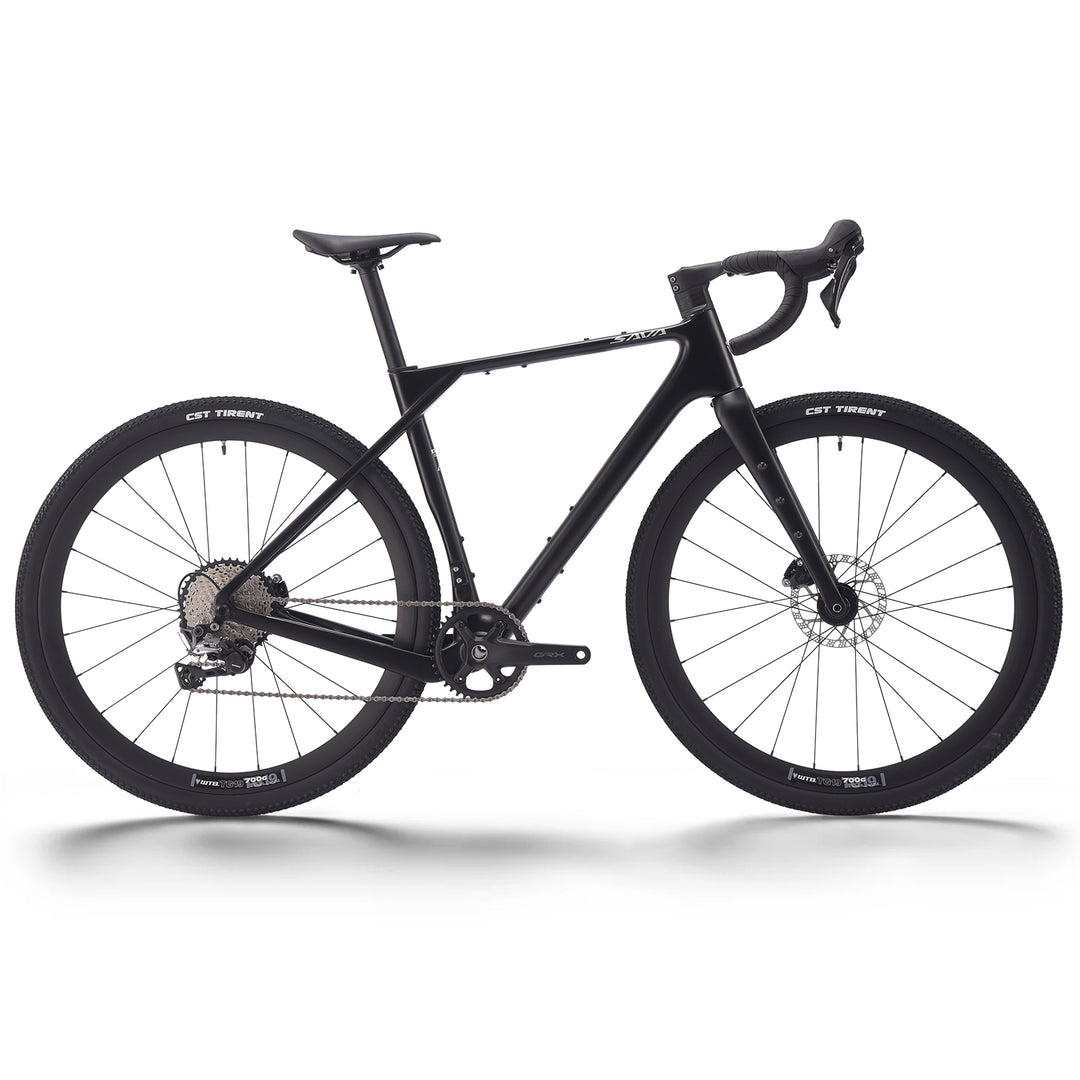

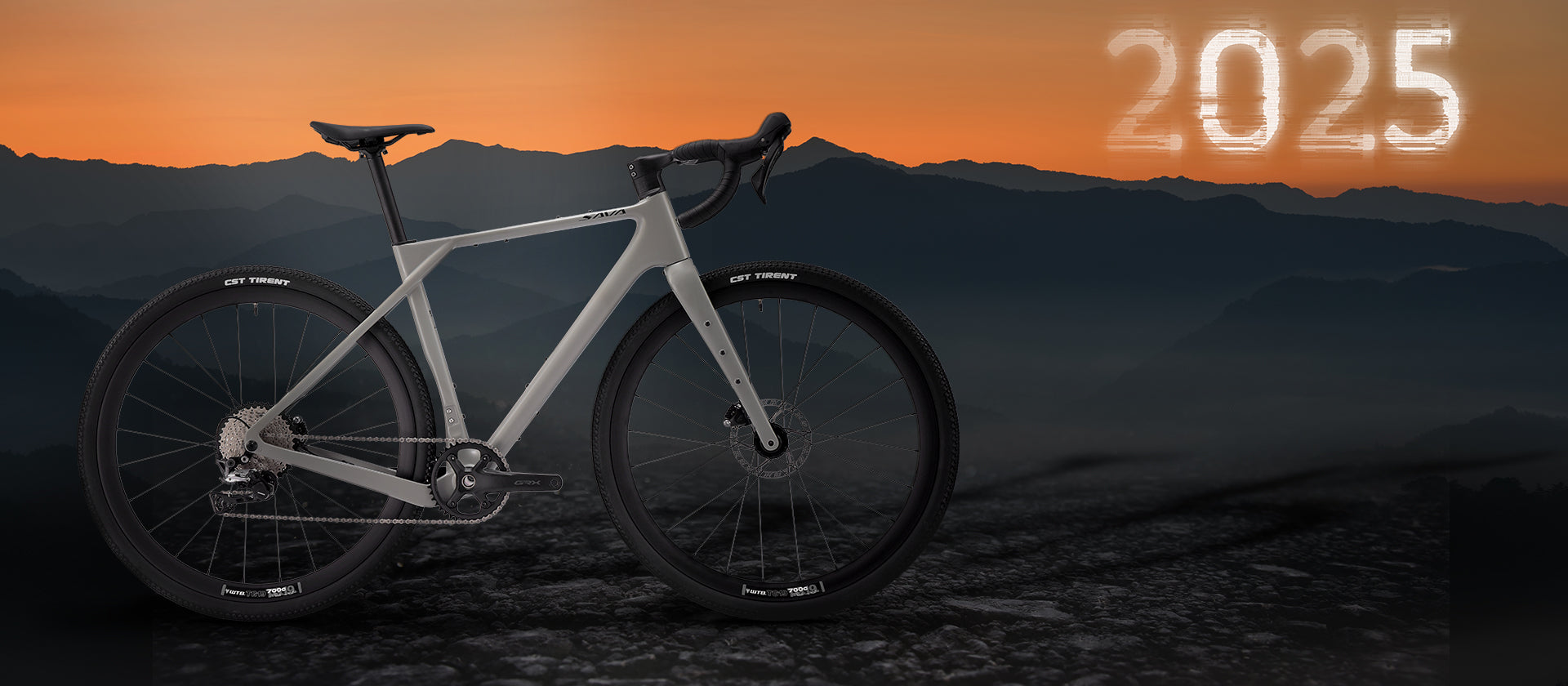

The SAVA Gelaro S6-GRX600 Carbon Gravel Bike is a high-performance, versatile gravel bike designed for adventure seekers and endurance riders. Built with a lightweight T800 carbon fiber frame and fork, this bike delivers exceptional strength and responsiveness on mixed terrains. Equipped with SHIMANO GRX600 11-speed components, including a reliable RD-RX812 rear derailleur and FC-RX600 crankset, the Gelaro S6 ensures smooth and precise shifting on any surface. The 700C CST Black Skinwall tires (700*40C) provide excellent traction and comfort, while the flared aluminum handlebar offers superior control and stability. Whether you're tackling gravel roads, dirt trails, or urban streets, the SAVA Gelaro S6-GRX600 is your ultimate companion for exploration and performance
SPECIFICATIONS:
Model | SAVA Gelaro S6 R21-GRX600-11S |
Weight | About 10.2kg(22.5lbs) |
Frame size | 47cm,49cm,51cm,53cm,55cm,58cm |

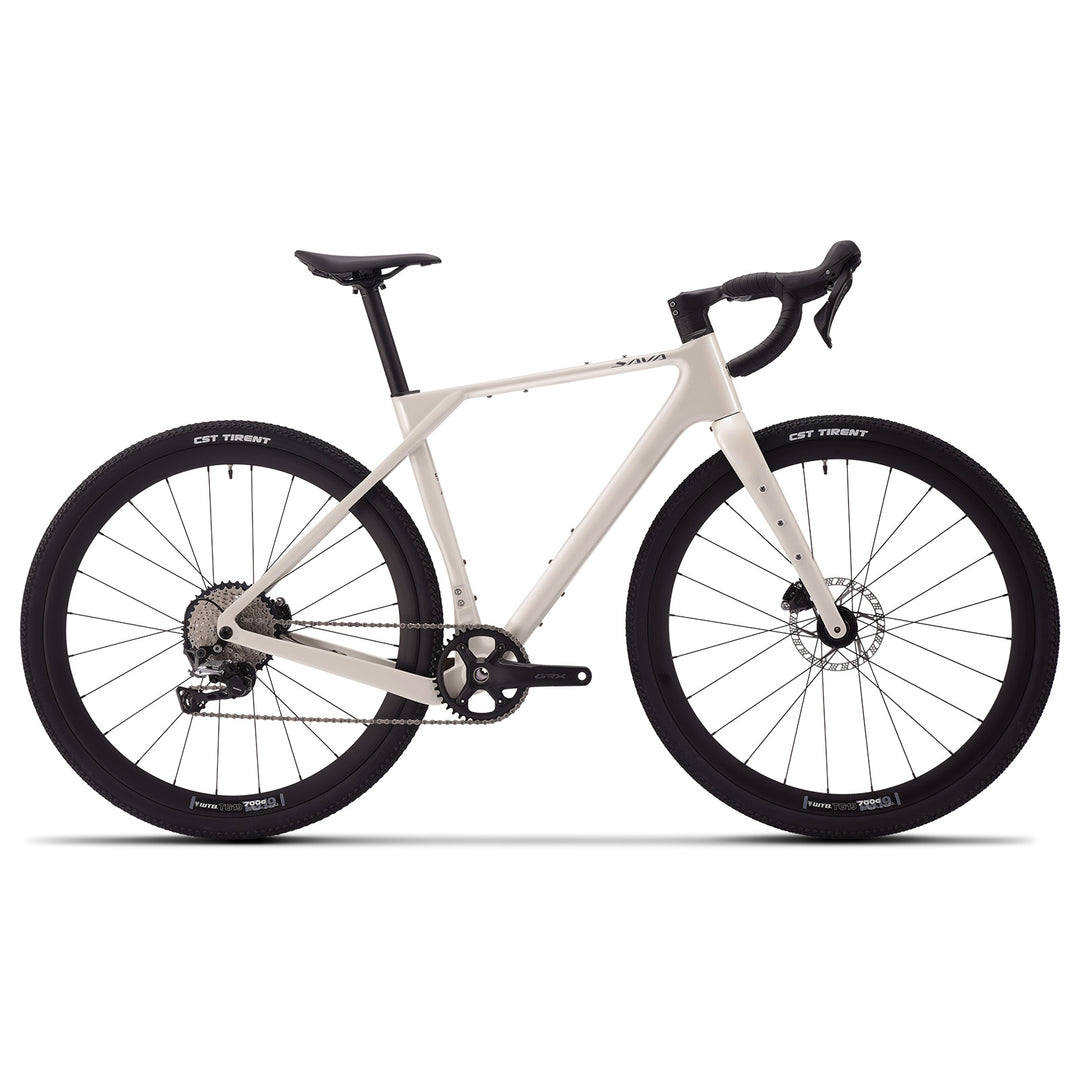

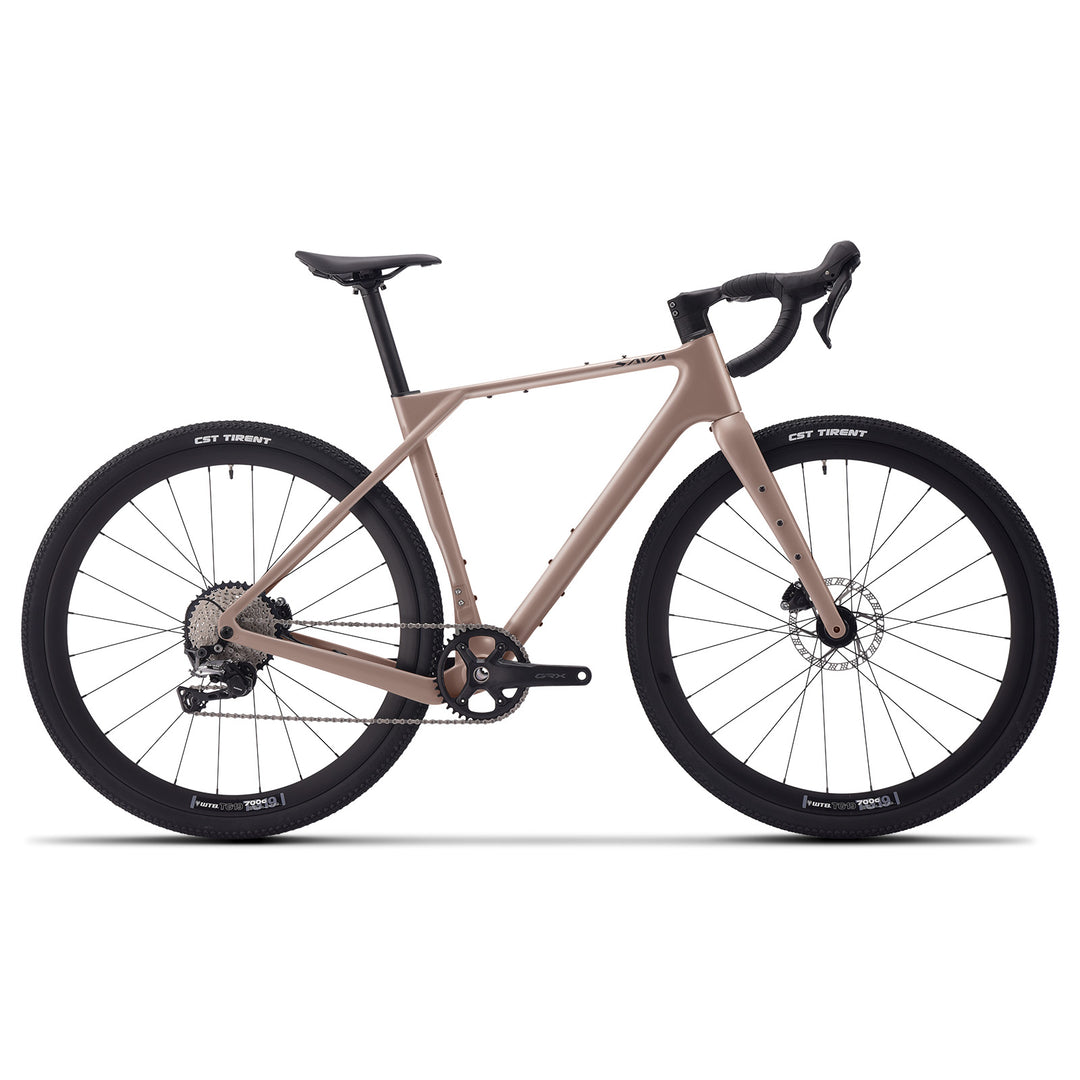

Color | Mist Grey,Desert Gold,Elegant White,Classic Black |
FRAMESET
![]() |

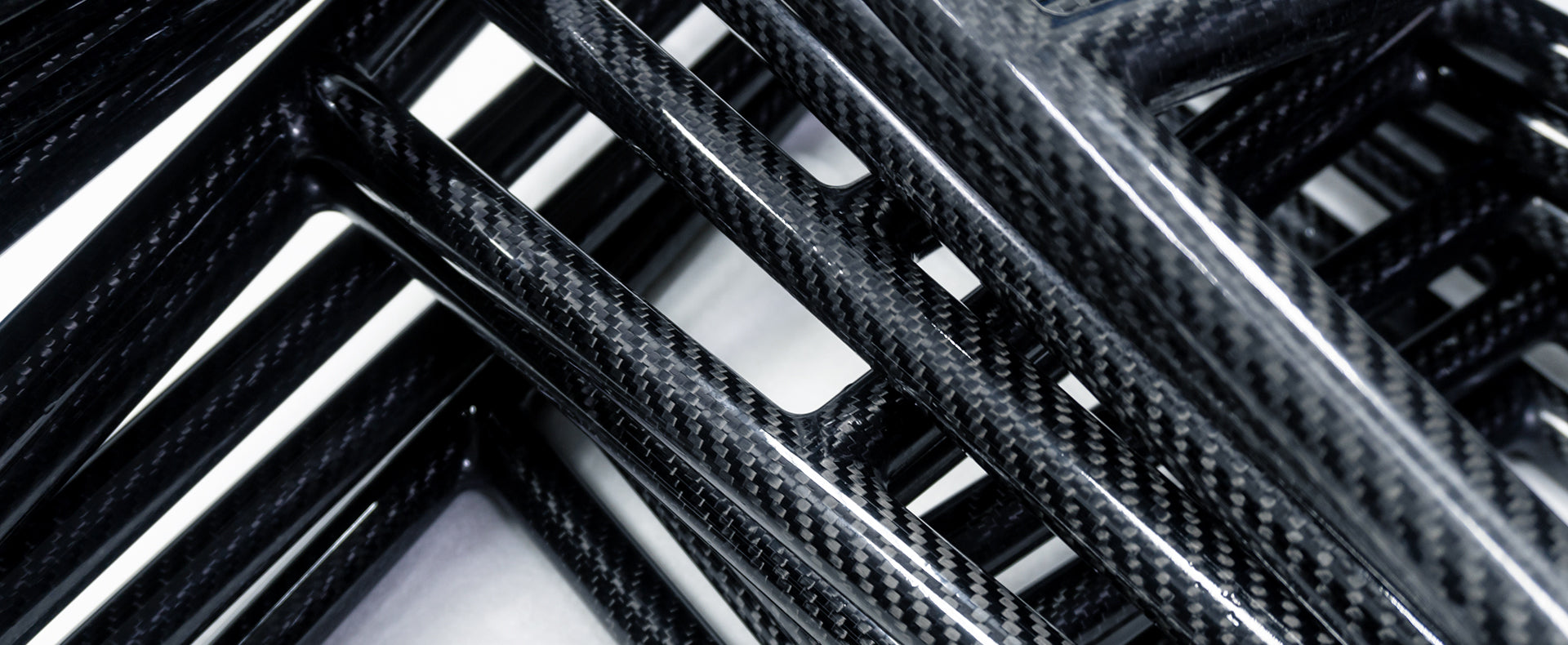

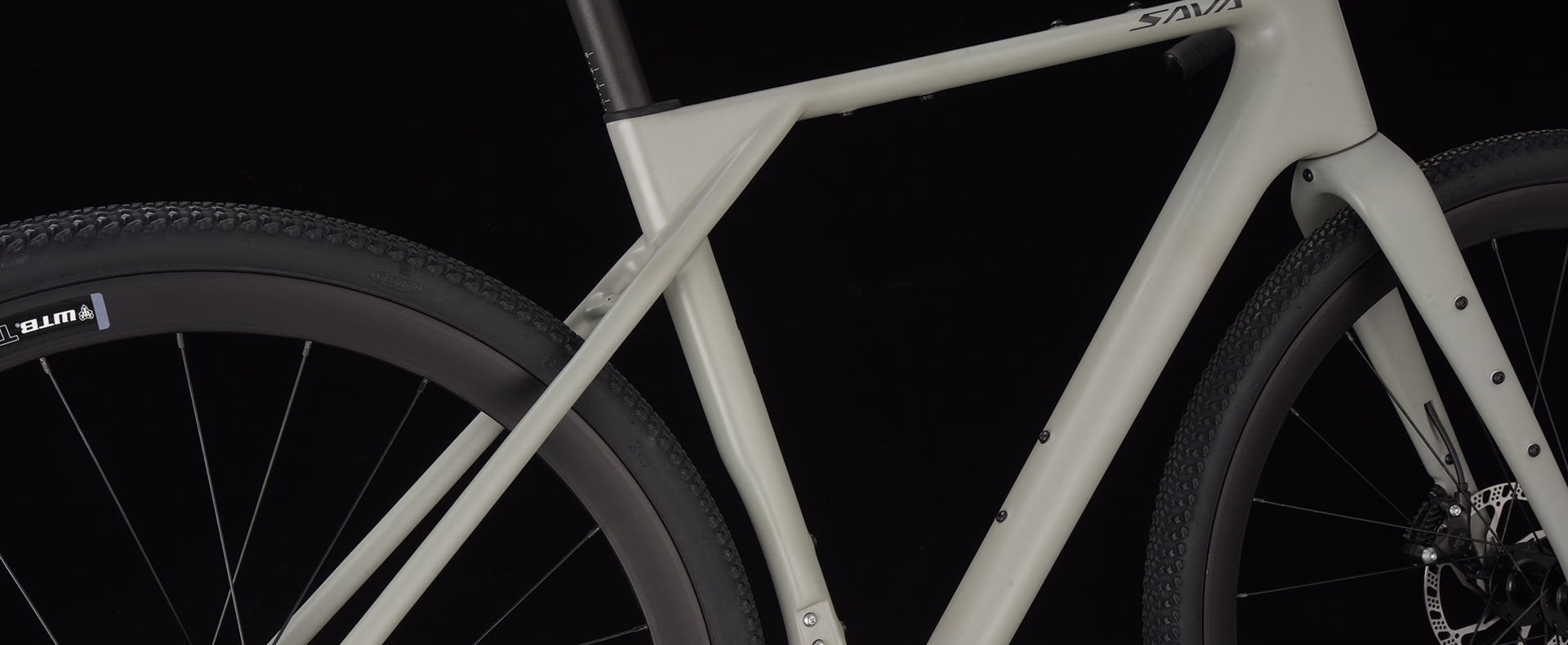

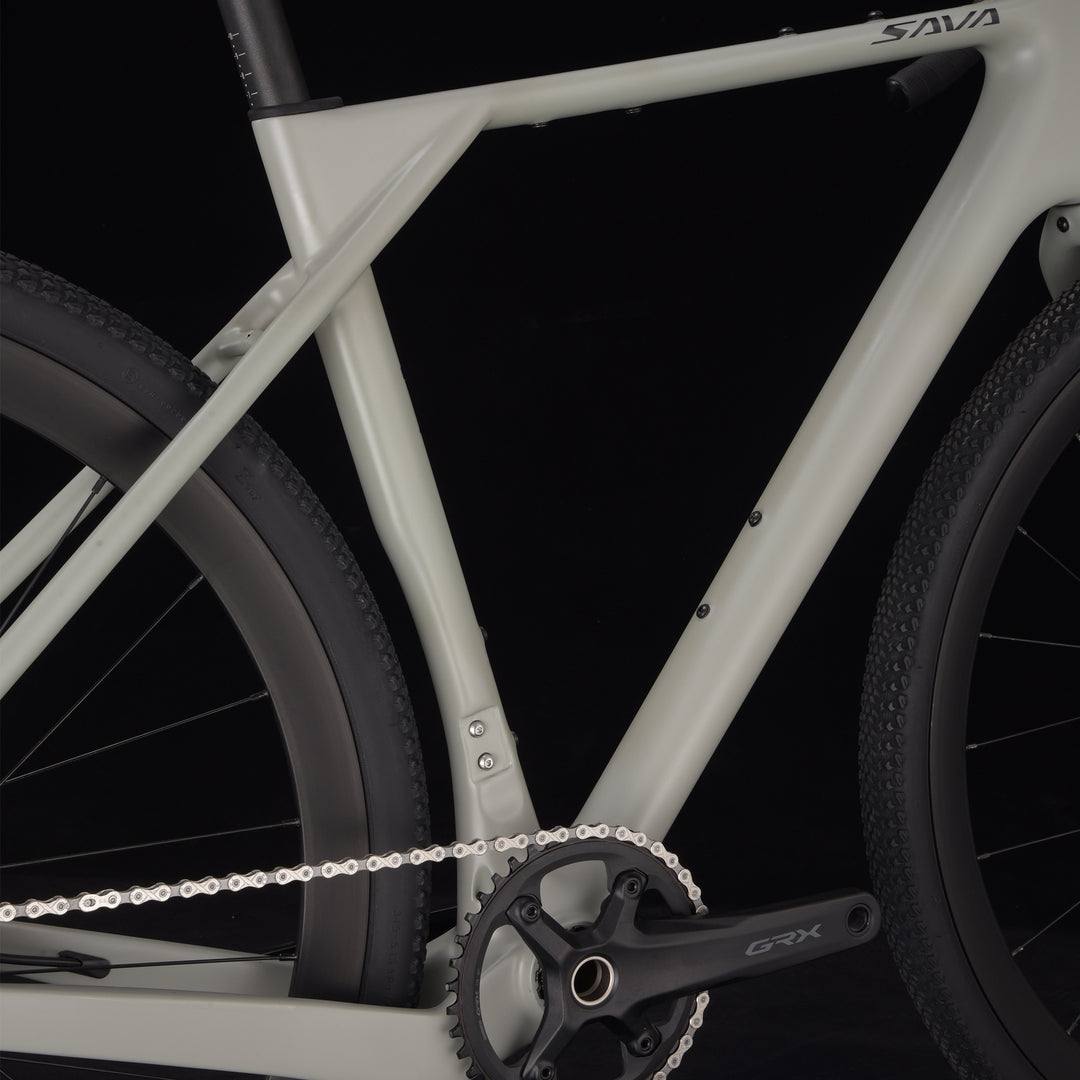

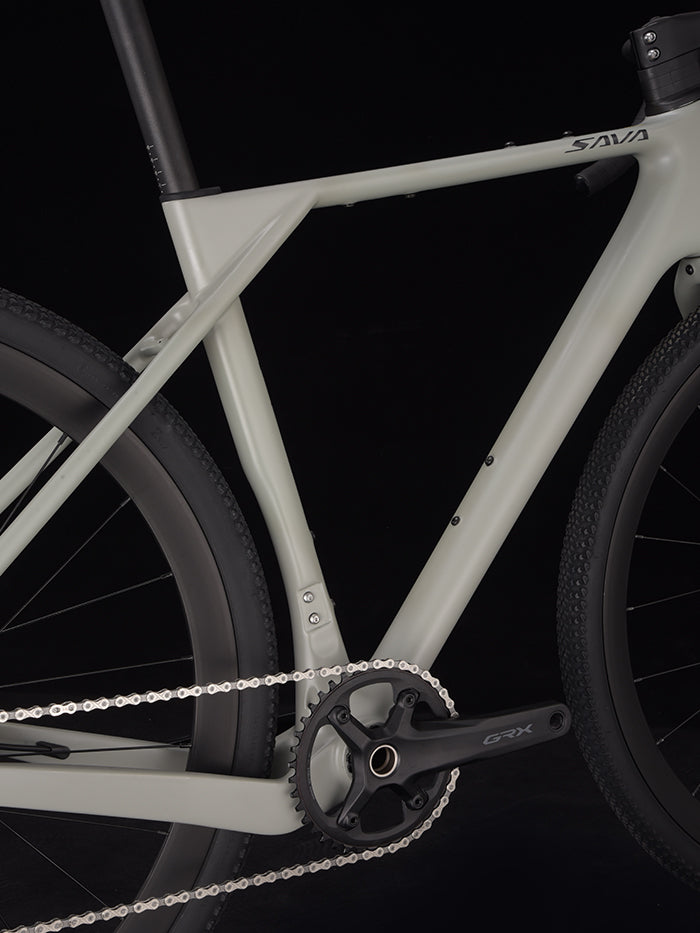

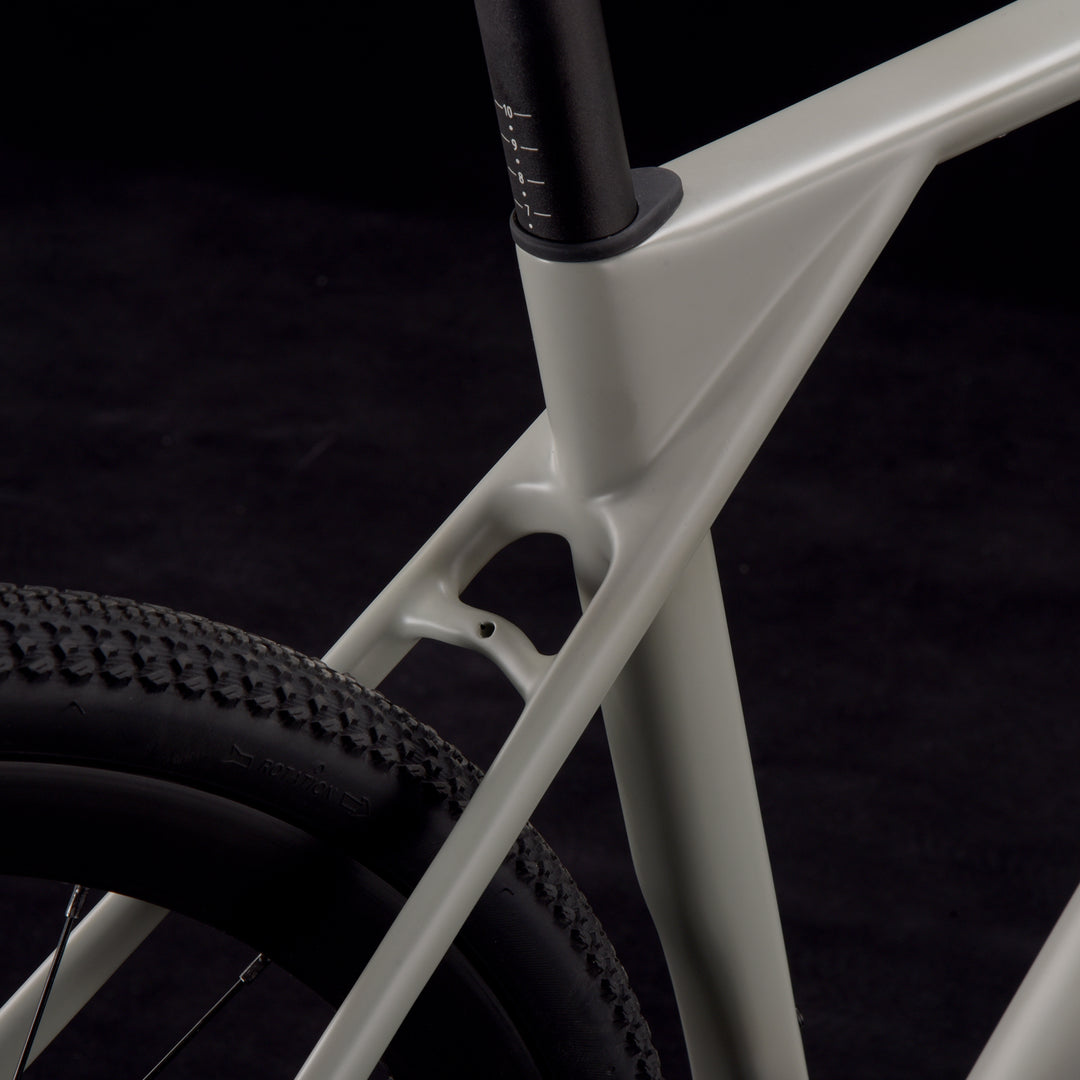

Frame | R21 frame T800 Carbon Fiber |
![]() |

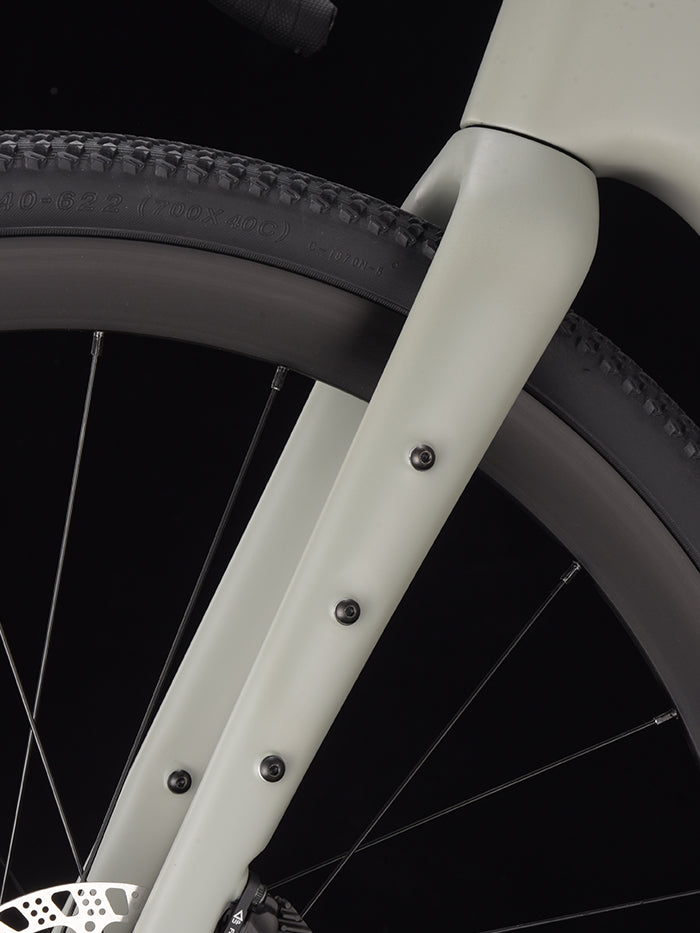

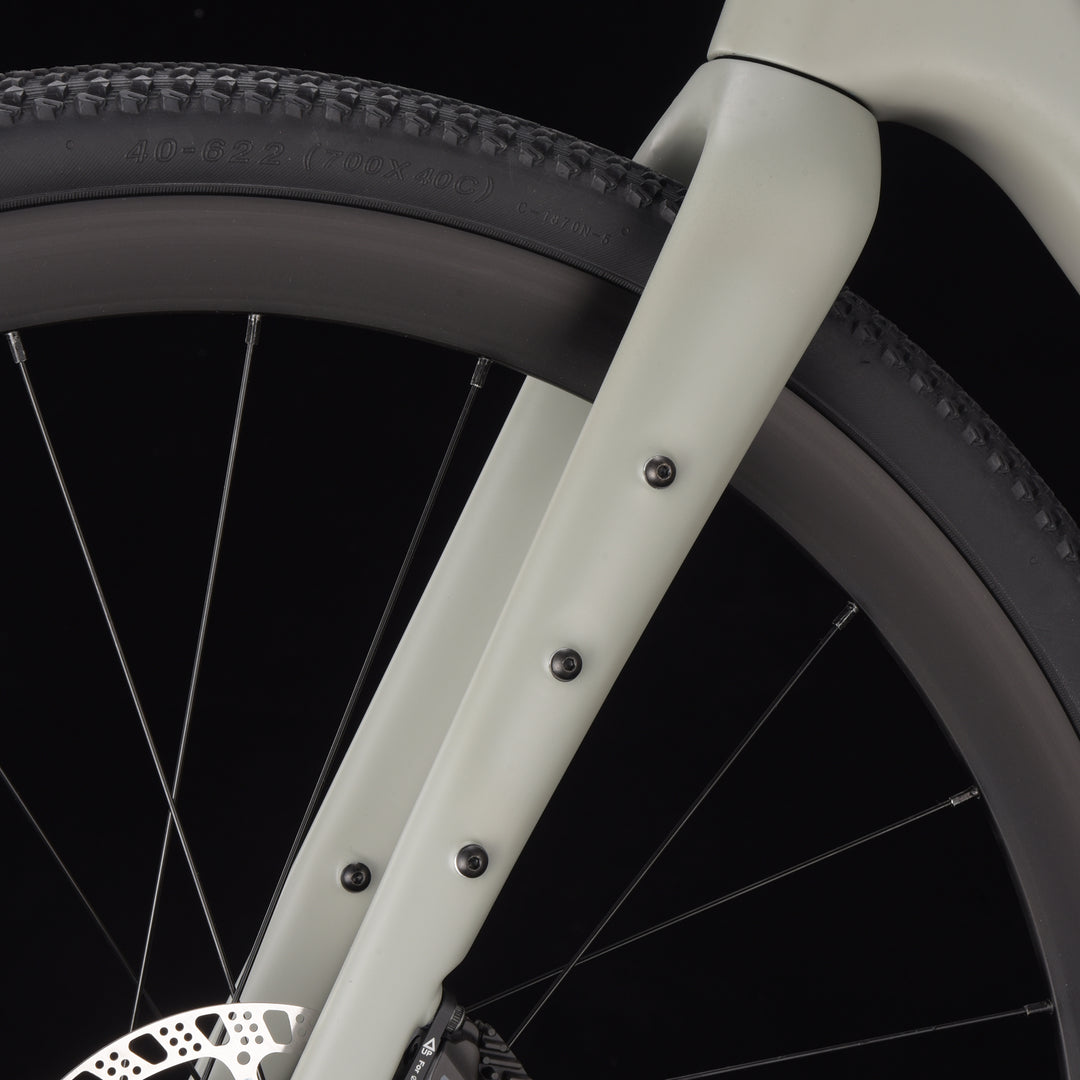

Fork | R21 fork,T800 carbon fiber |
![]() |
Seat post | Aluminum,31.6*350mm |
![]() |
Headset | JY,Bearing |
DRIVETRAIN
![]() |

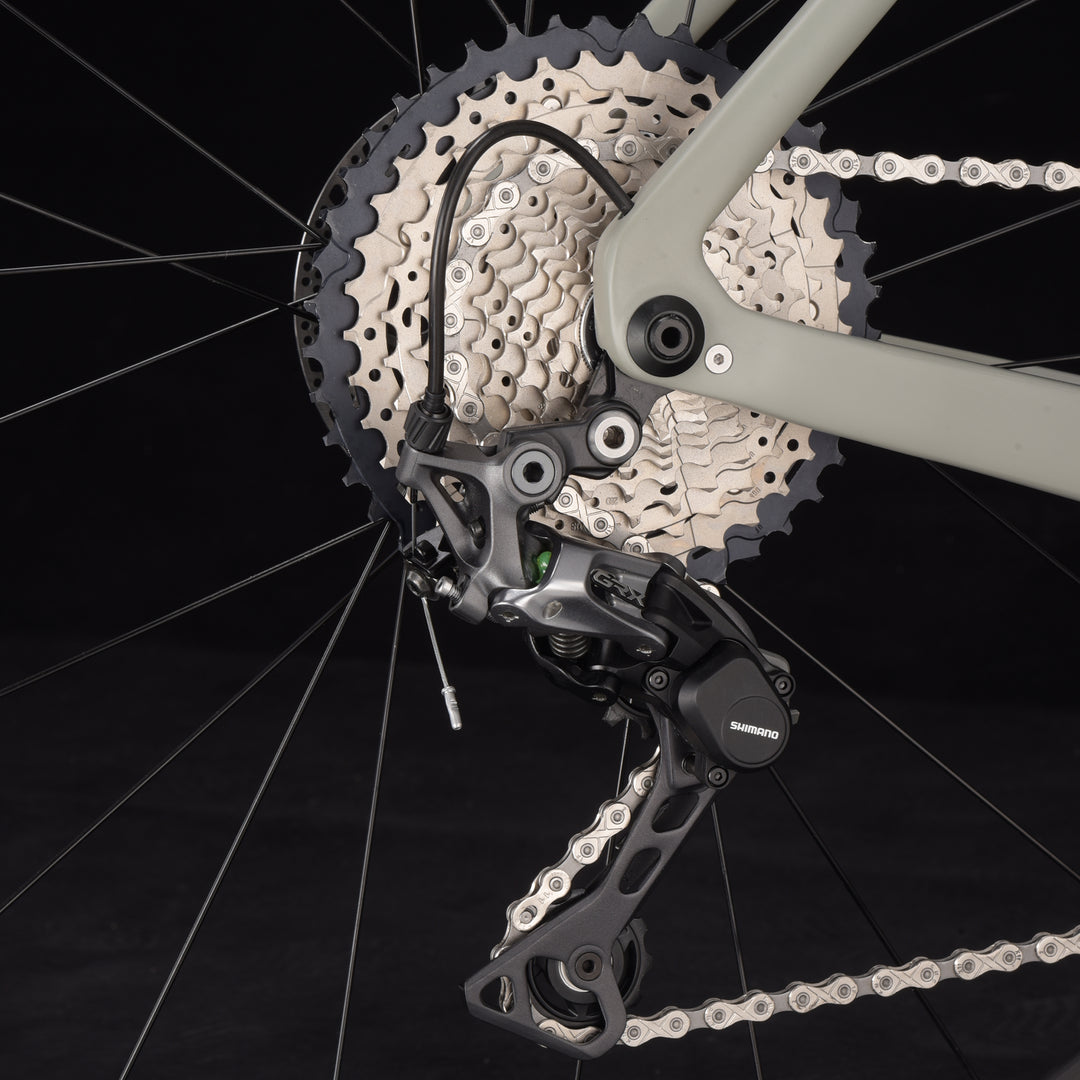

Rear Derailleur | SHIMANO RD-RX812, GRX 11-Speed |

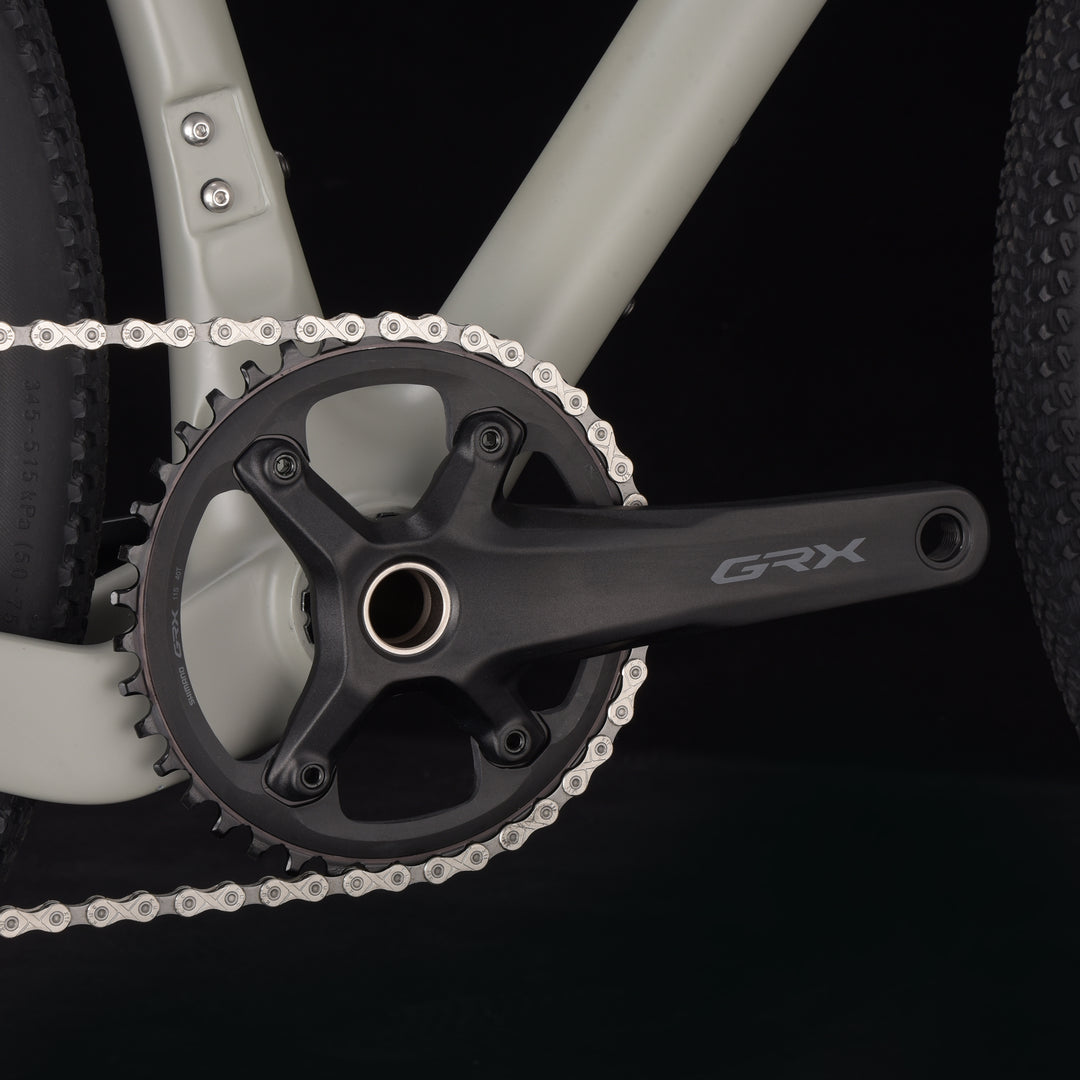

Crankset | SHIMANO FC-RX600, GRX for 11-Speed, 170mm, 40T | |
Cassette | SHIMANO CS-M7000, 11-Speed, 11-13-15-17-19-21-24-28-32-37-42T | |
![]() |

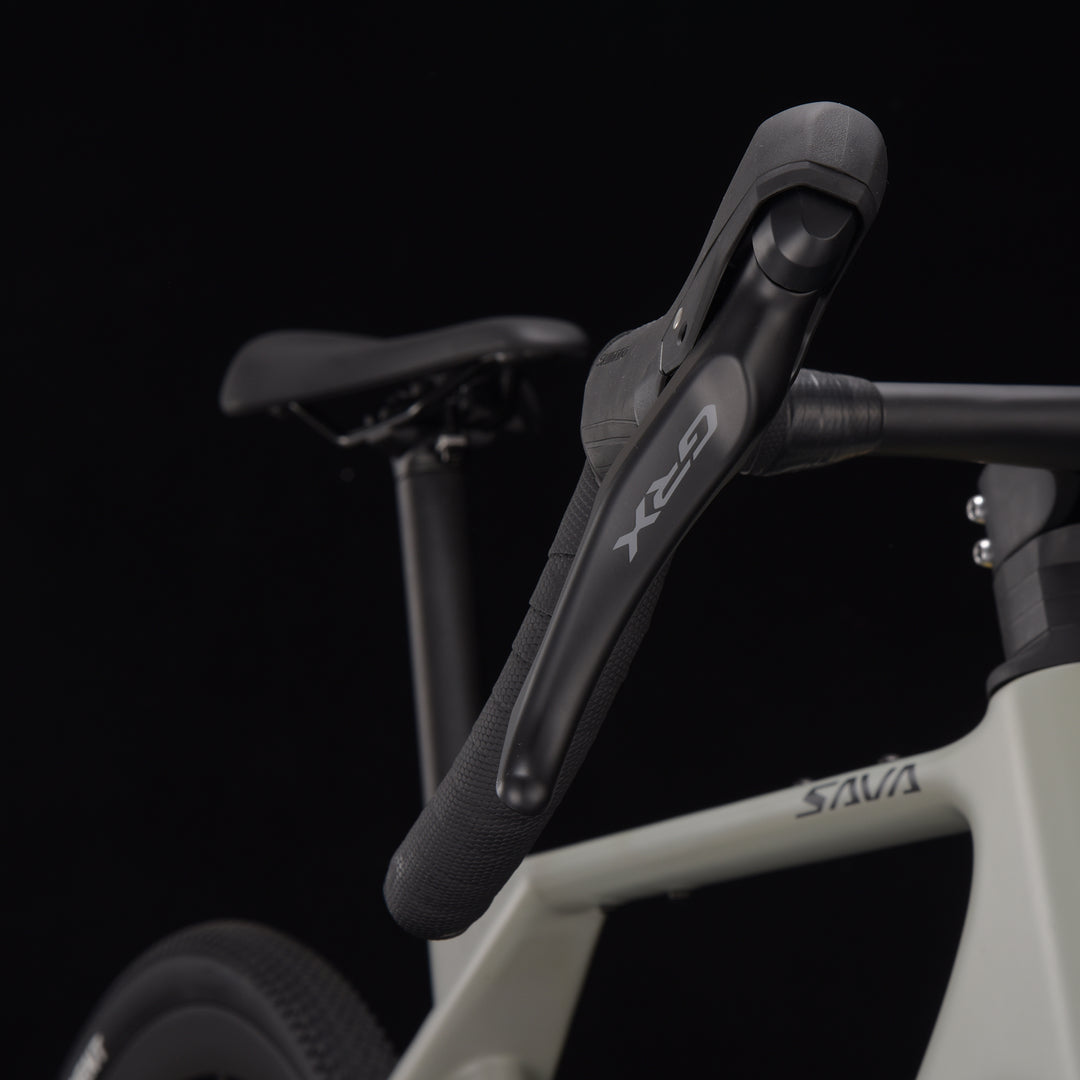

Shifters | SHIMANO BL-RX600 |
![]() |

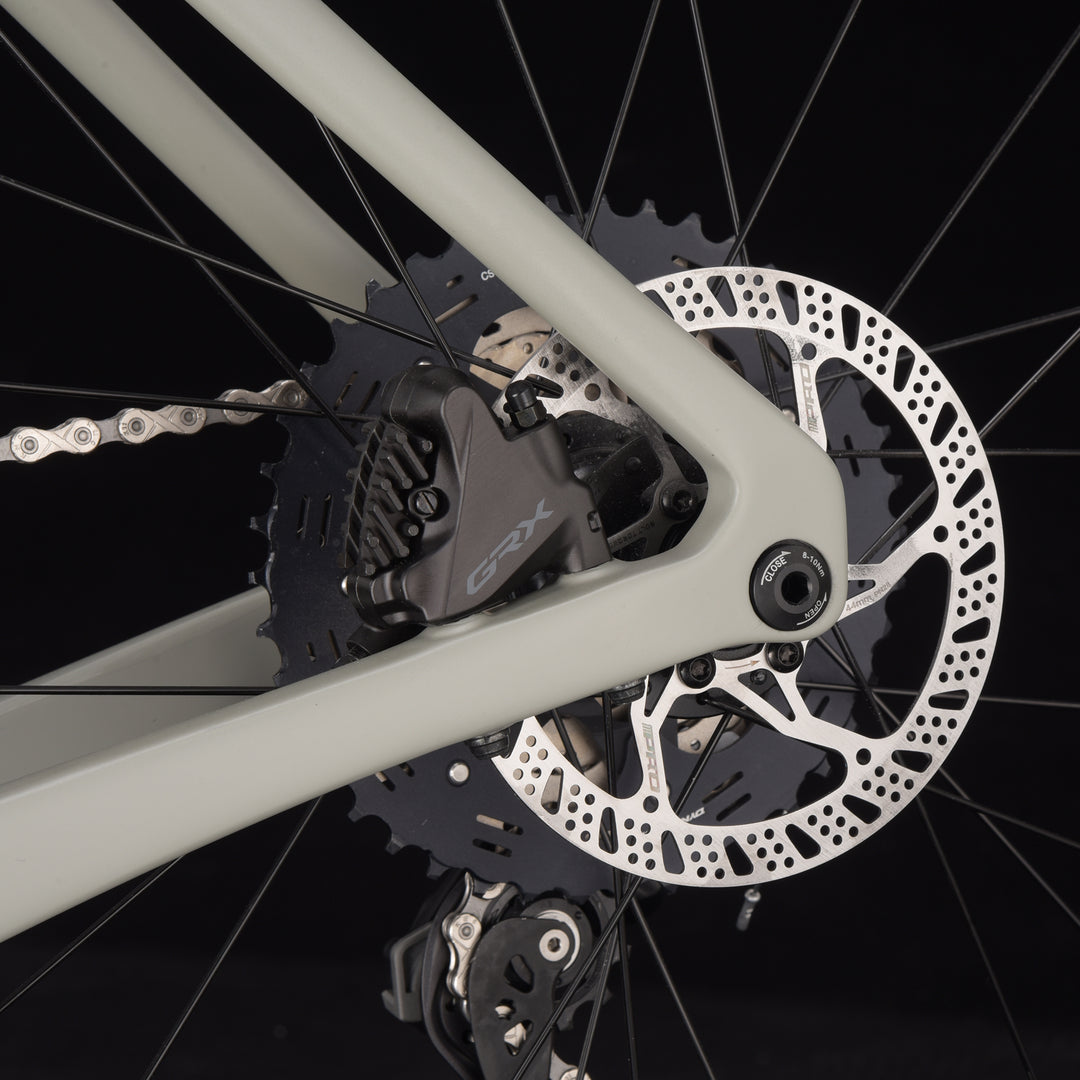

Brakes | BR-RX400 |
![]() |
Chain | KMC 116L |
WHEELSETS
![]() |

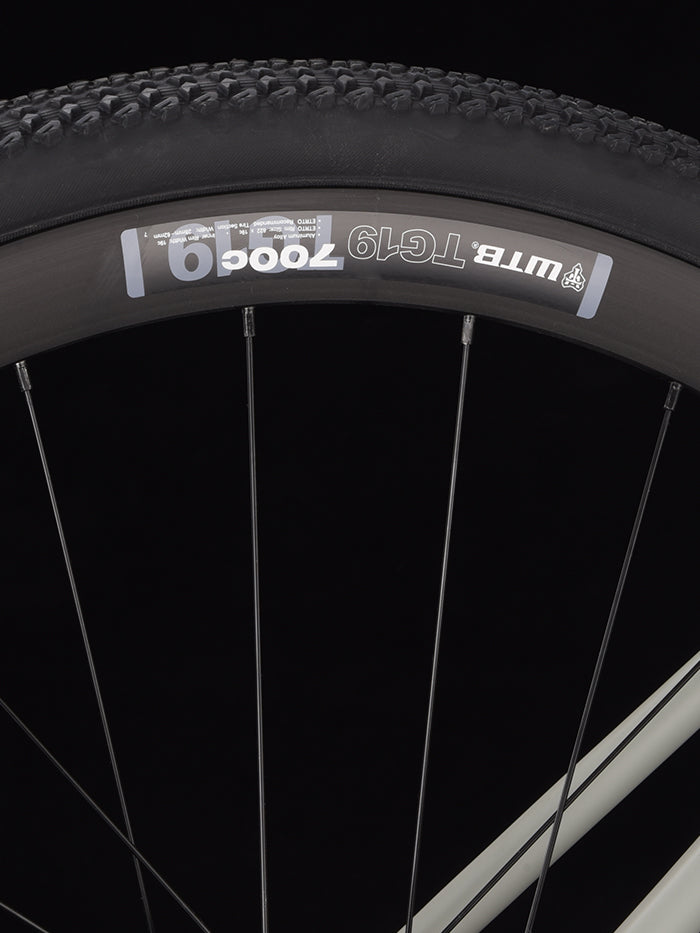

Wheels | Aluminum;700C*24H 19*24.5*36MM F/V |
![]() |

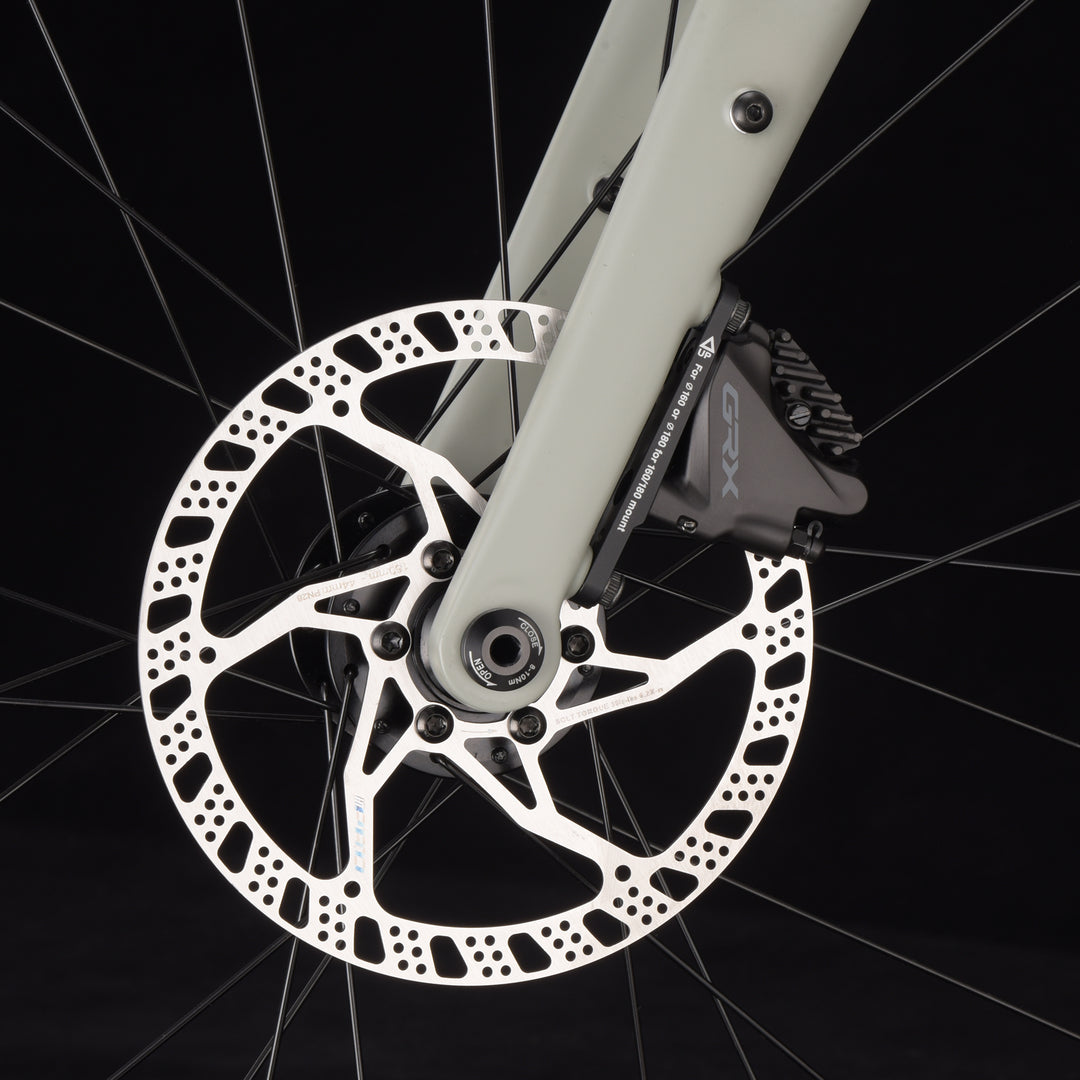

Rotors | PRO PN28, 160mm, 6-Bolt Lock,140mm, 6-Bolt Lock |
![]() |
Tires | 700*40C 1870N DK27 |
![]() |
Hubs |
DH969TF, M1214G/24H100mm ,M1214G/24H142mm,Thru-Axis |
![]() |

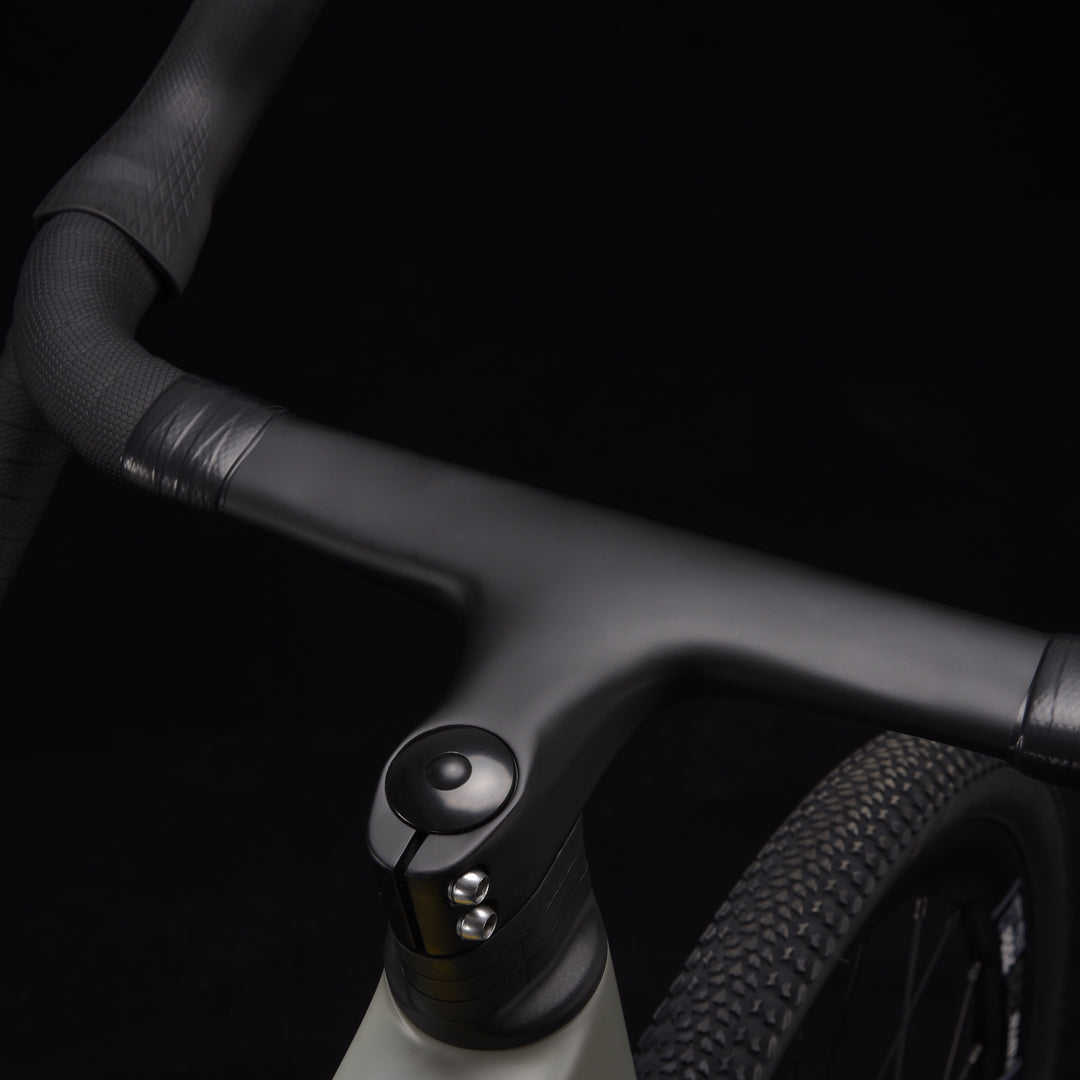

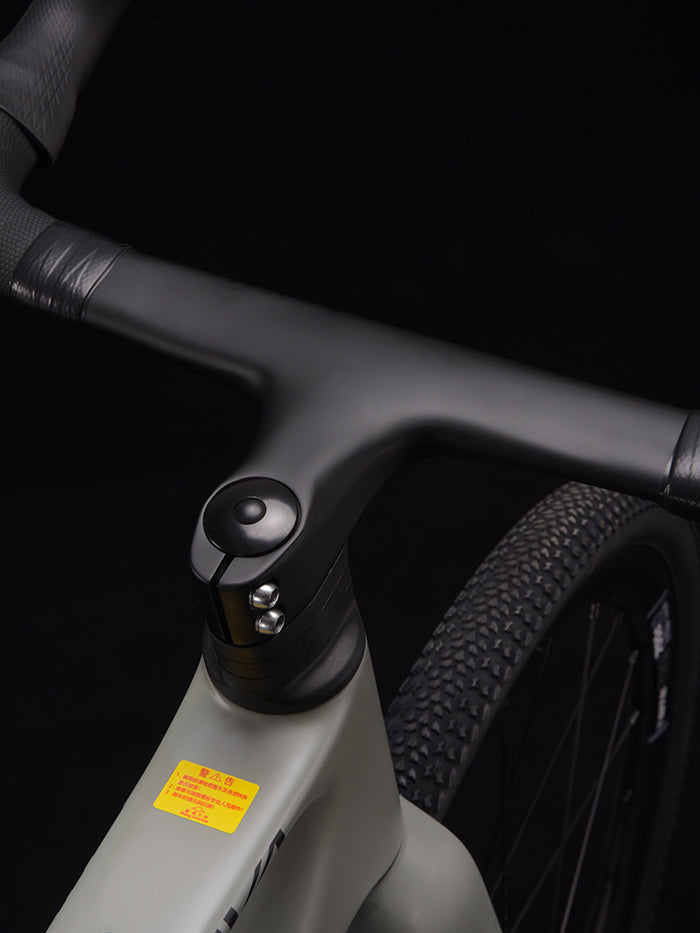

Handlebar | Aluminum Flared Drop Bar,400*480*85 |
![]() |
Saddle | YBT-K785,pu |
![]() |
Pedal | Cast Aluminum Body, 9/16” Boron Axle, DU+Bearing(free include) |
The standard brake is set to control the front brake with the left hand and the rear brake with the right hand, please let us know if you want to change it.
Parameter | 470(XS) | 480(S) | 510(M) | 535(L) | 550(XL) | 580(XXL) |
---|---|---|---|---|---|---|
A (mm) | 470 | 480 | 510 | 550 | 580 | 580 |
B (mm) | 512.4 | 530.1 | 557.6 | 576.2 | 591.9 | 604.8 |
C (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
D (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
E (°) | 74° | 74° | 73° | 73° | 73° | 73° |
F (°) | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° |
G (mm) | 582.2 | 601.1 | 618.1 | 638.1 | 655.8 | 664.4 |
H (mm) | 110 | 140 | 160 | 190 | 210 | 220 |
I (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
J (mm) | 360 | 369 | 380 | 390 | 400 | 410 |
K (mm) | 533.6 | 561.8 | 580.6 | 608.9 | 627.7 | 637.1 |
L (mm) | 394 | 394 | 394 | 394 | 394 | 394 |
N (mm) | 1000.7 | 1019.8 | 1037.6 | 1057.7 | 1074.4 | 1087.8 |
Height Range | Below 166cm | 166 -174cm | 172-180cm | 178-186cm | 186-192cm | Above 190cm |
Locations:
a. Shipping from the US warehouse can only be sent to the US (Except Hawaii, and Puerto Rico).
b. Shipping from European warehouses can only be sent to European countries
c. Shipped from Chinese factory, can be shipped to the world
Country |
Shipping way |
Shipping time |
Shipping fee |
Tax |
USA |
Fedex,UPS |
About 3-5 working days |
Free |
Free |
Country |
Estimated arrival time |
Shipping way |
Tax |
USA |
About 10-16 working days |
SF,Fedex |
Free |
CA |
Currently not available in Canada |
|
|
Mexico |
About 10-16 working days |
SF,UPS |
Free |
EU countries |
About 12-18 working days |
DPD,UPS,DHL |
Free |
Asia |
About 8-15 working days |
SF,EMS |
Free |
AU |
About 15-25 working days |
Dedicated logistics |
Customer pay |
UK |
About 12-18 working days |
DPD |
Free |
South America |
About 20-35 working days |
Dedicated logistics |
Customer pay |
Africa |
About 20-35 working days |
Dedicated logistics |
Customer pay |
Austria,Belgium,Czech Republic,Poland,Portugal, Romania,Serbia,Denmark,Slovakia, Slovenia,Spain,Sweden,Switzerland, Turkey,Finland,France,Greece, Hungary,Italy,Norway,Netherland, |
DHL,DPD |
About 3-7 working days |
Free shipping |
Tax free |
Note: The above shipping time is only in accordance with the previous shipping records to set, if encountered force majeure factors may lead to shipping delays, please be informed that
R21 Frame Patent Certificate:Download
