Heading
- T1000 carbon fiber frame, fork, handlebar, seat post, wheels, spokes, saddle
- Superlight, it only weighs 6.88kg(15.16lbs)
- Internal Cable Routing Design
- Integrated handlebar
- Aerodynamic frame, handlebar
- SHIMANO Ultegra R8170 Di2 2x12 Groupset
- Hydraulic Disc Brake
- Battery mounting internally in the seat post, running time approx. 1000 km
- STIs for wired electronic shifting
- Front derailleur with more compact design than previous model, connected to battery via cable
- Rear derailleur with wireless chip, LED display, charging socket and function button, connected to battery via cable
- Semi-wireless setup
- Bluetooth connection
- 700*25 IRC tires

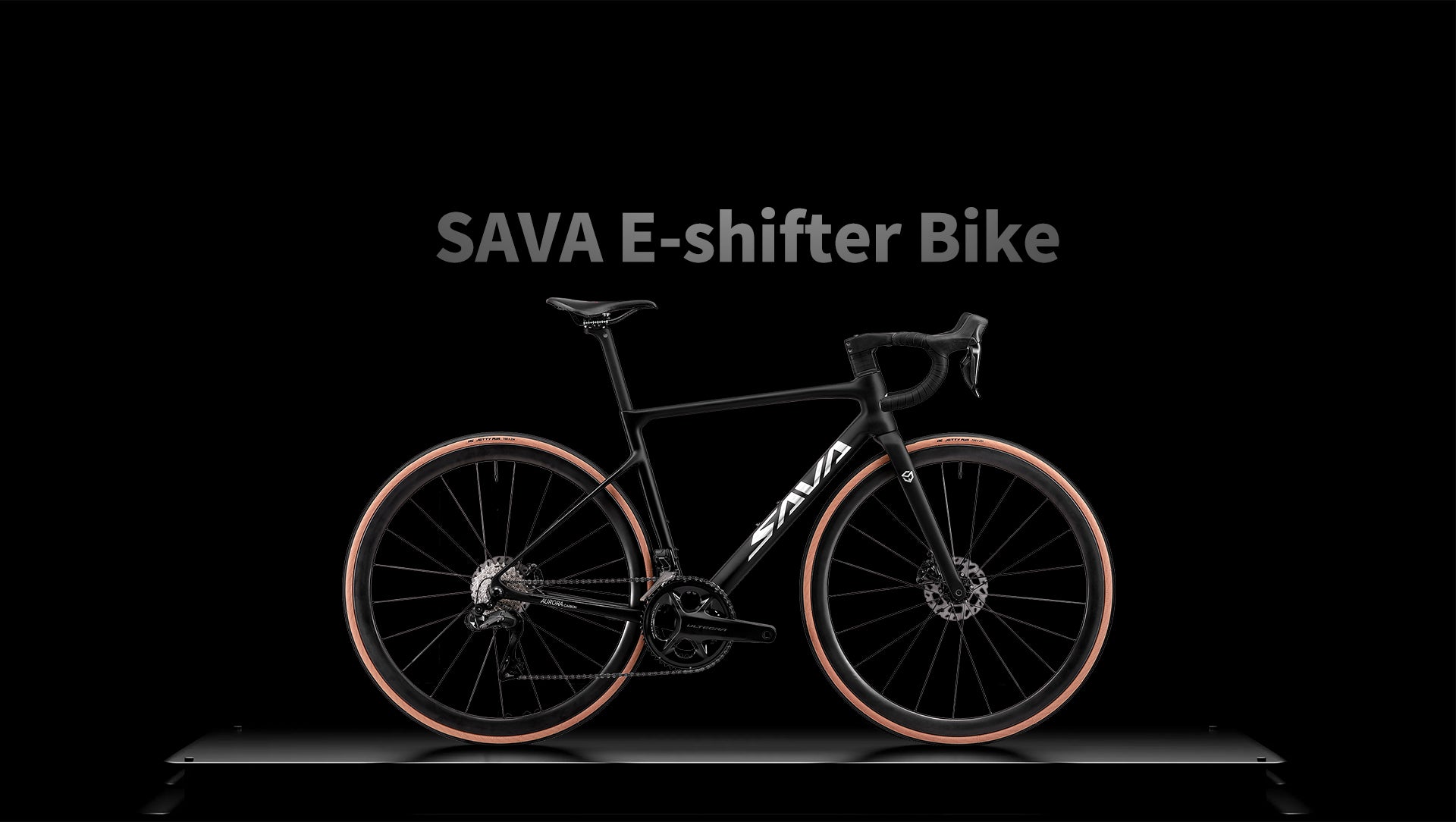

SAVA Di2 R8170 electronic shifting carbon road bike

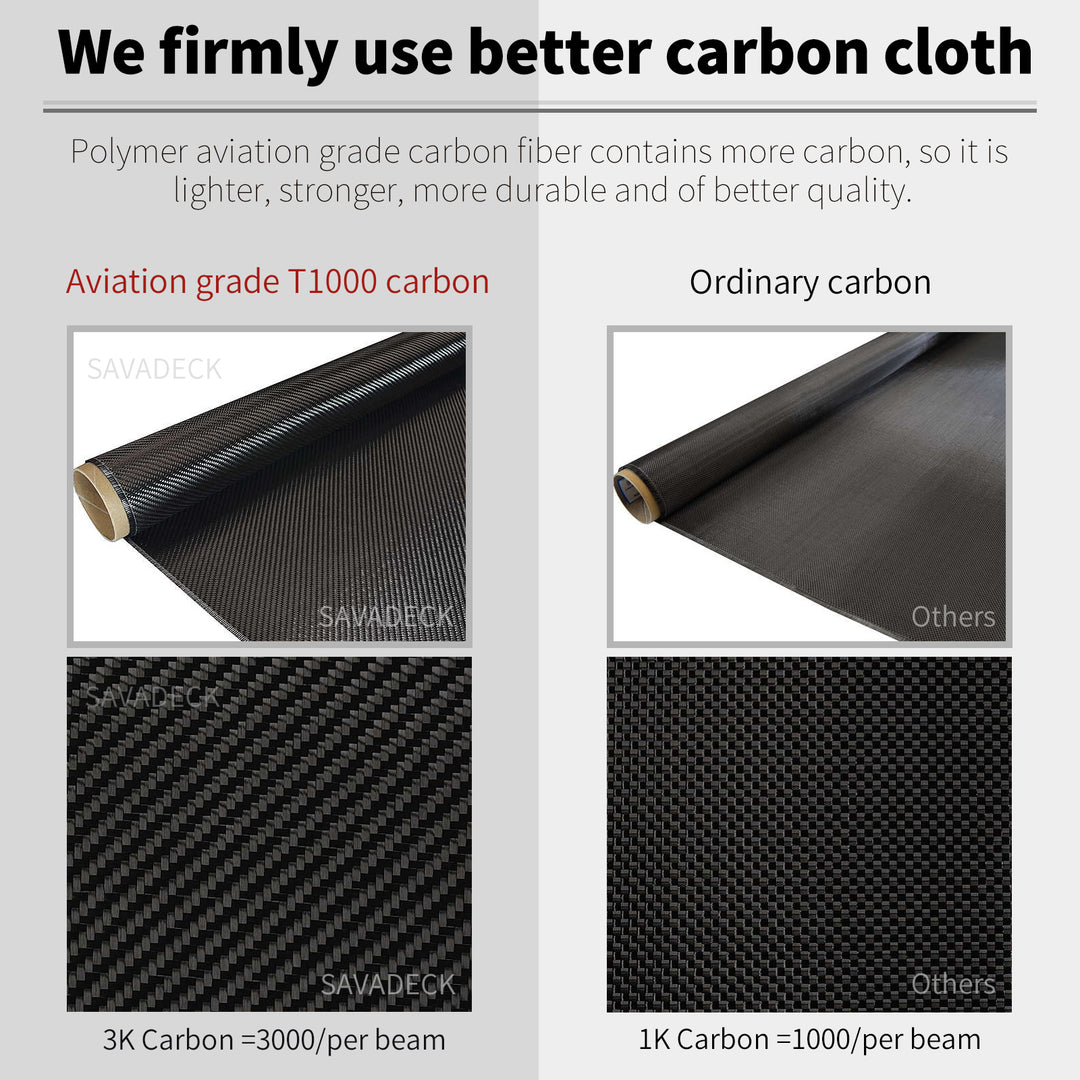

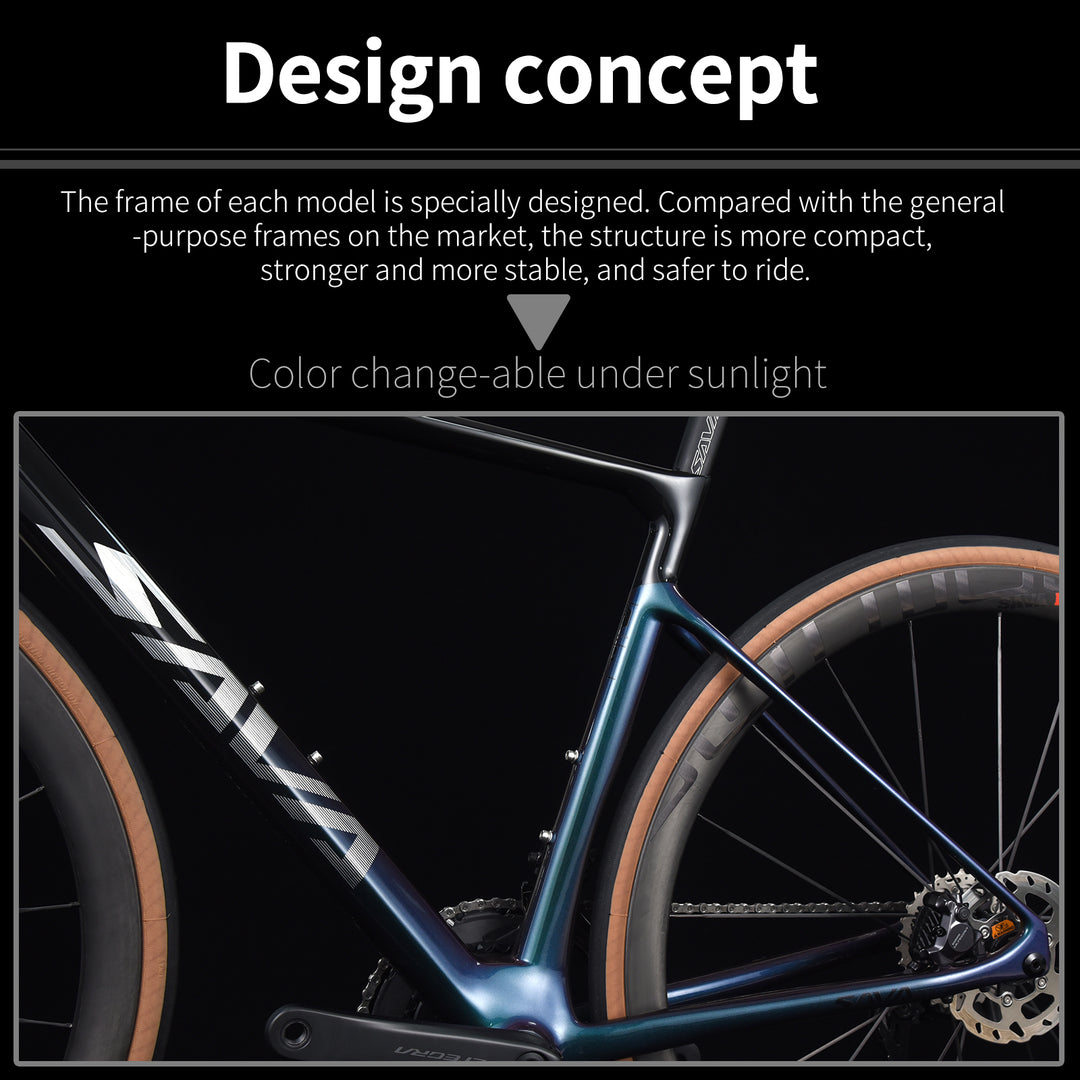

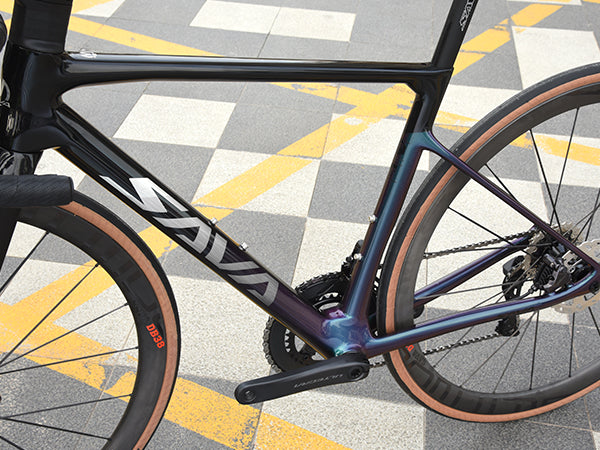

T1000 carbon fiber design

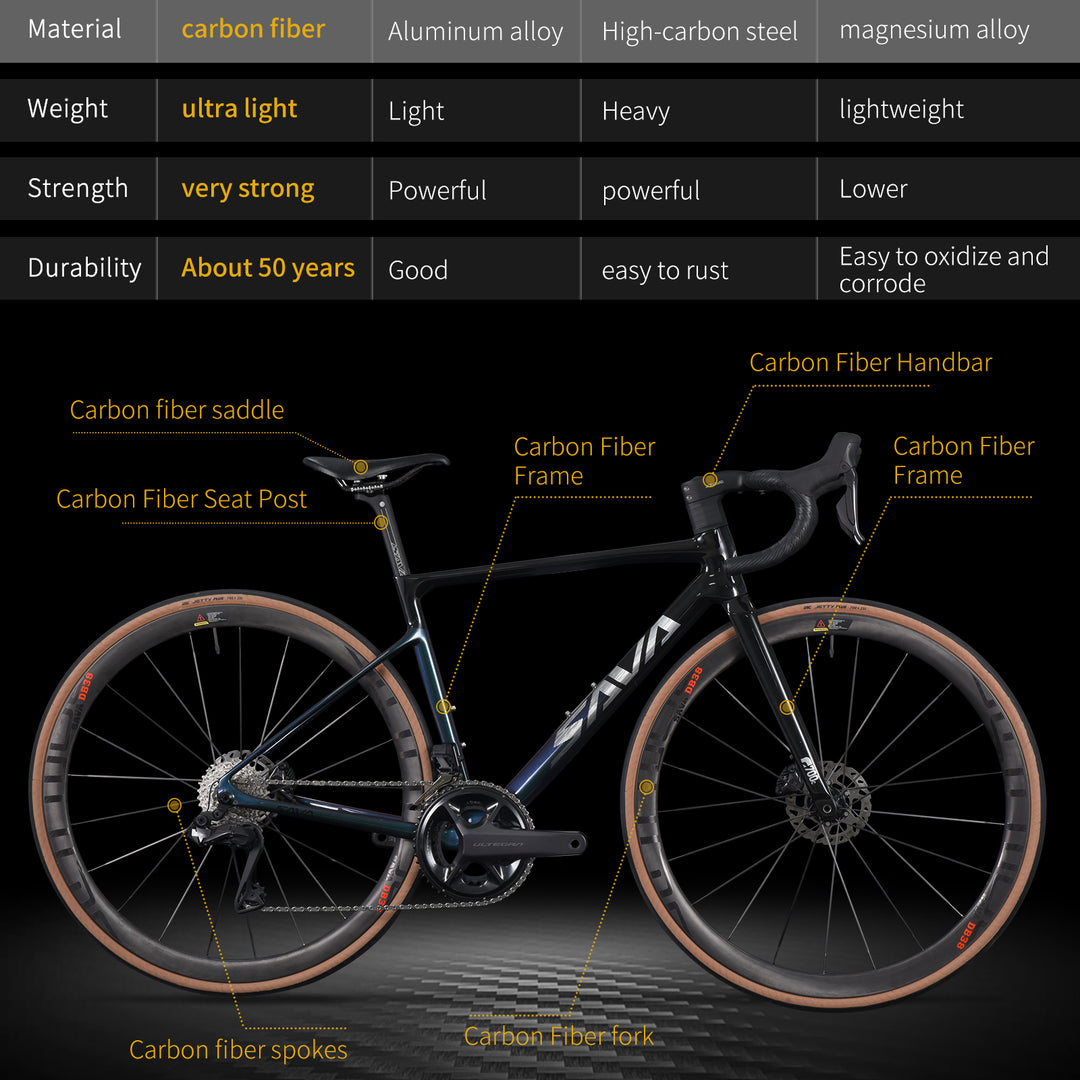

T1000 carbon fiber frame, fork, handlebar, seatpost, wheels, T1000 carbon fiber ensures it stays lightweight and retains ride stiffness, durability, and responsive handling. Let you enjoy the featherweight performance bicycles

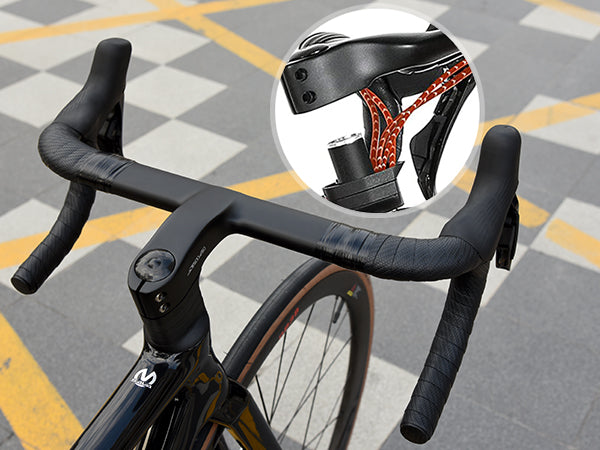

Full integrated inner cable design
The integrated handlebar and internal cable route design which can reducing the windward area is beneficial to decrease the riding resistance
Di2 wireless shifting
Di2 wireless shifting creates a smooth and fast ride

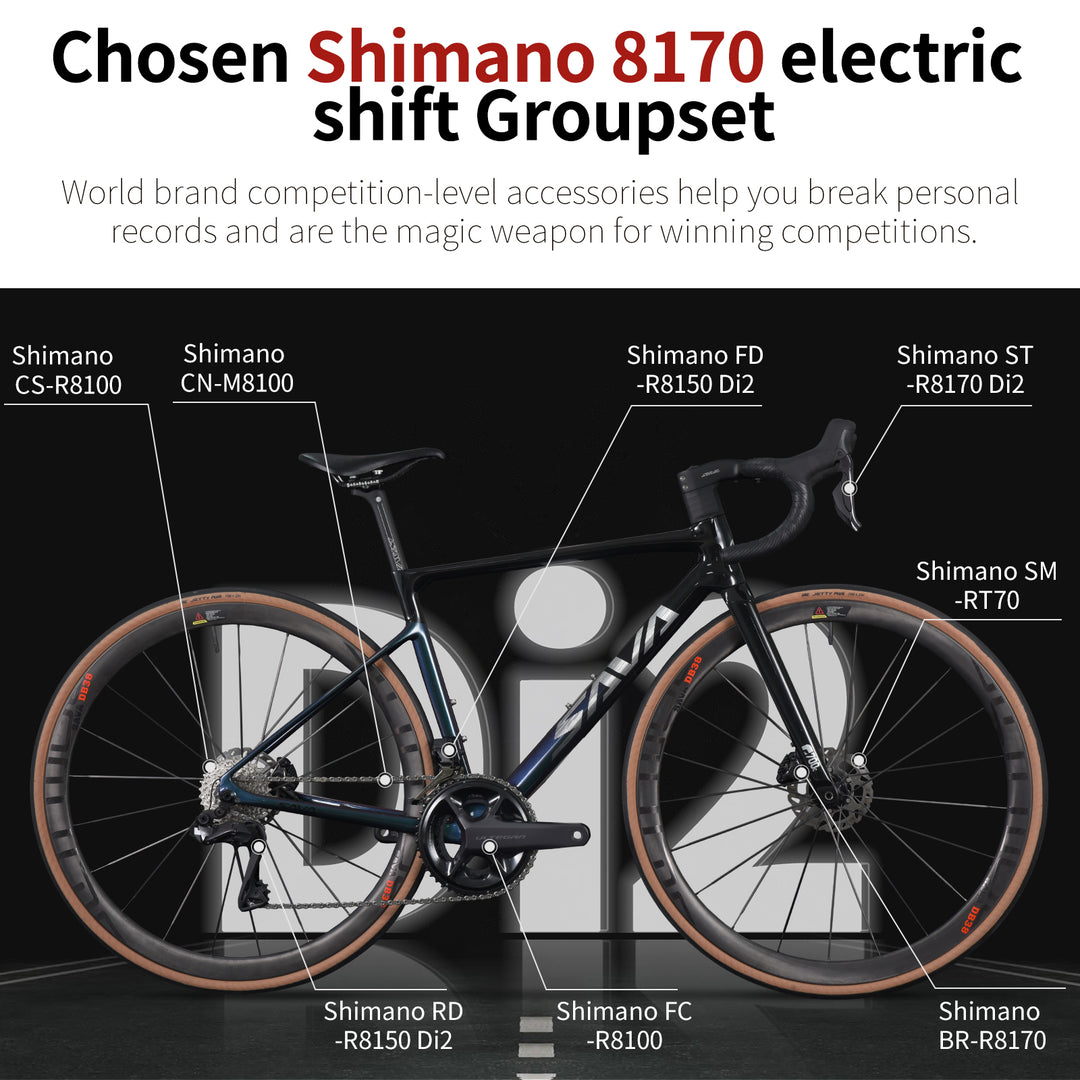

Shimano Ultegra Di2 R8100 groupset
High-performing Ultegra R8170 12-Speed Di2 Groupset, where electrical, hydraulic, and mechanical systems work together to create a smooth, efficient ride
Shimano ultegra Di2 wireless shifting
New ergonomic design, lighter, get rid of the limitations of the gear lever and make wireless shifting faster and more reliable

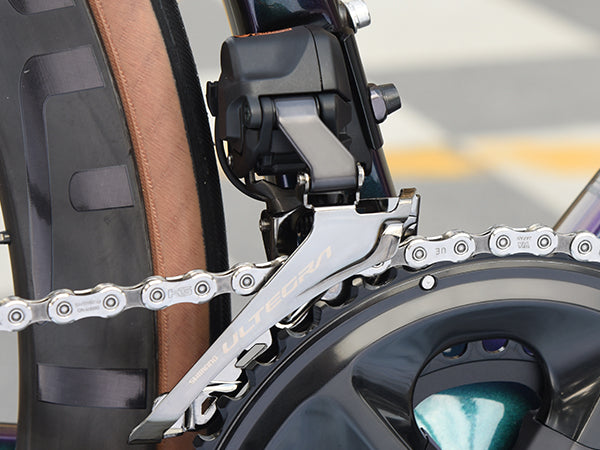

Shimano ultegra Di2 Front Derailleur
It is more compact and faster than before, and digitally precise front shifting is possible in any situation

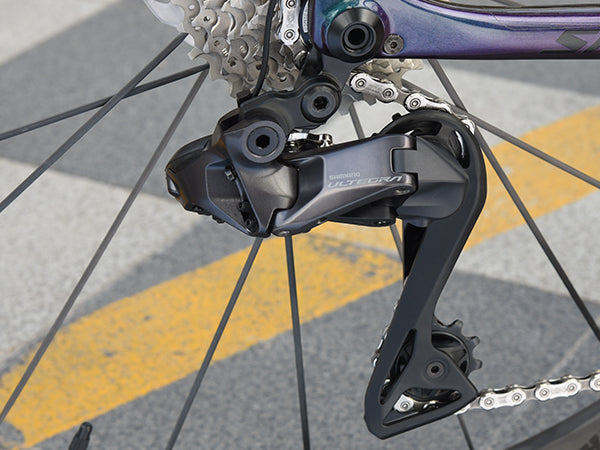

Shimano ultegra Di2 R8150 Rear Derailleur
Pack our fastest, most precise shifting into a more approachable option
Shimano ultegra FC-R8100
Lightweight and strong, it improves power transmission and the speed and precision of front shifting

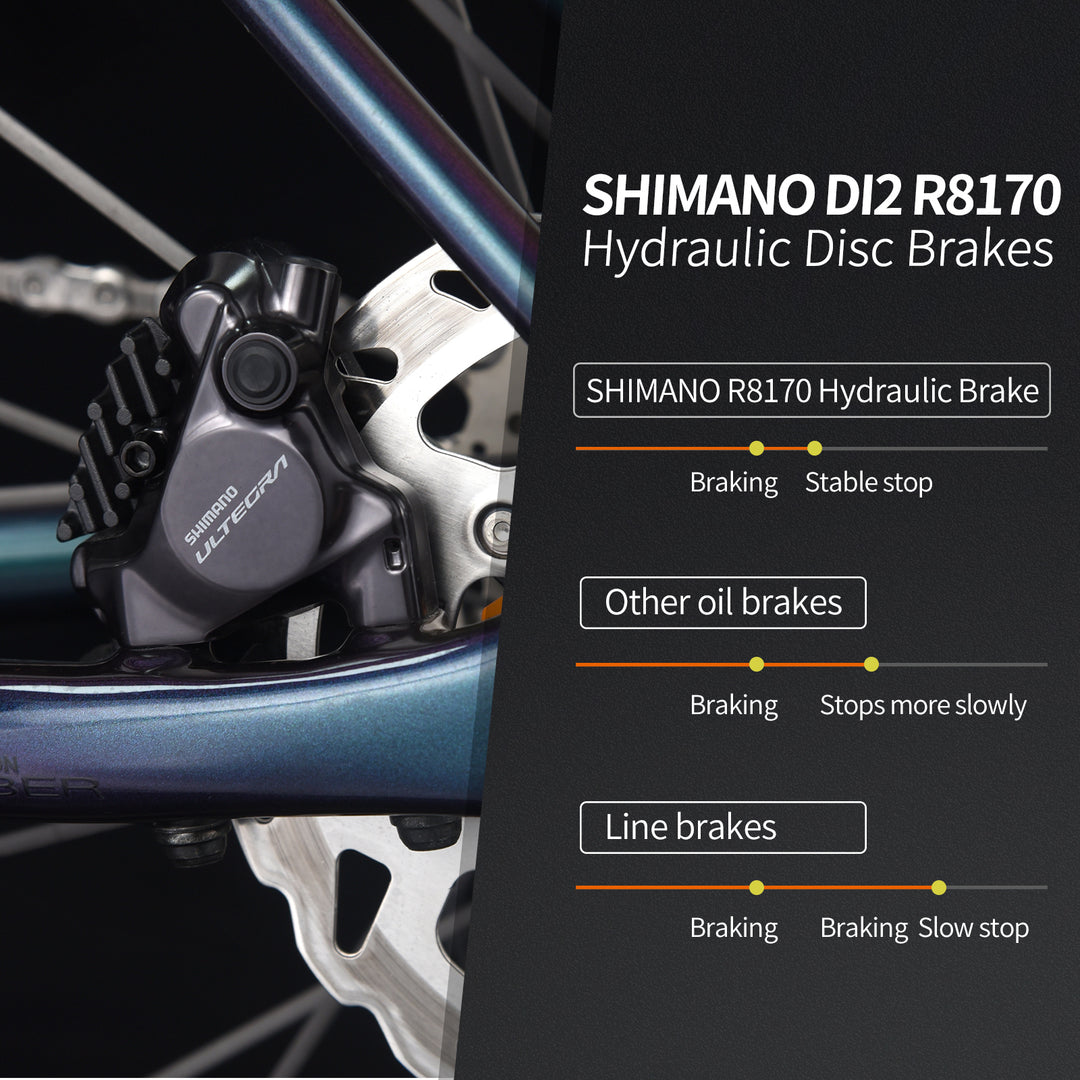

Ultegra BR-R8170
The calipiers have been fully upgraded to deliver optimised does, quieter braking performance and extremely simplified maintenance

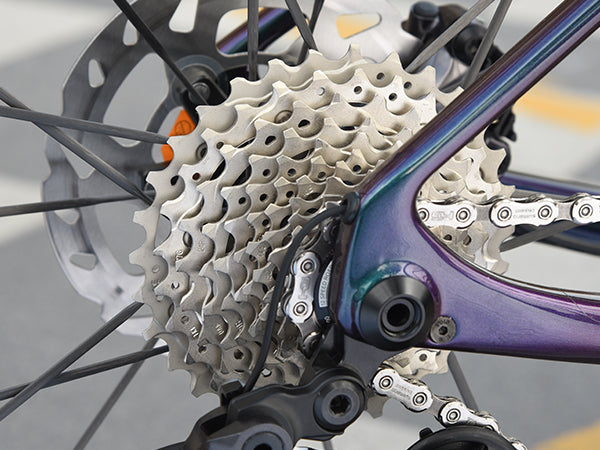

Ultegra CS-R8100
The seamless shifting process not only ensure quiet cruising, but also allows the rider to concentrate on climbing and sprinting

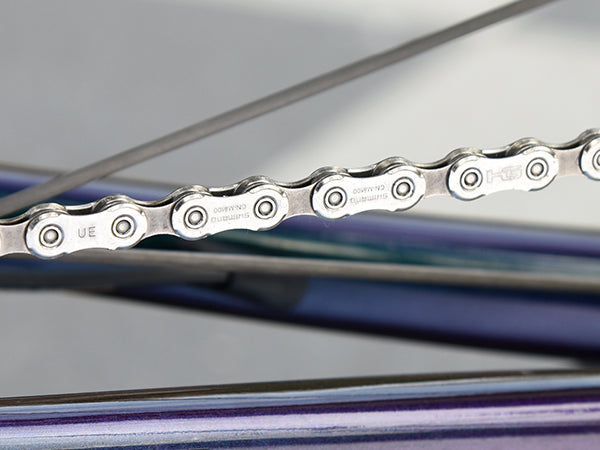

SHIMANO CN-M8100 Chain
Quicklink for easy, tool-free chain removal and faster, safer installation

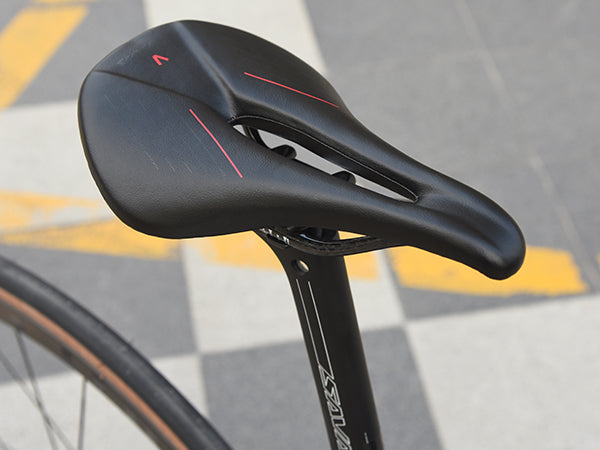

Carbon fiber 3K saddle
Lightweight and comfortable

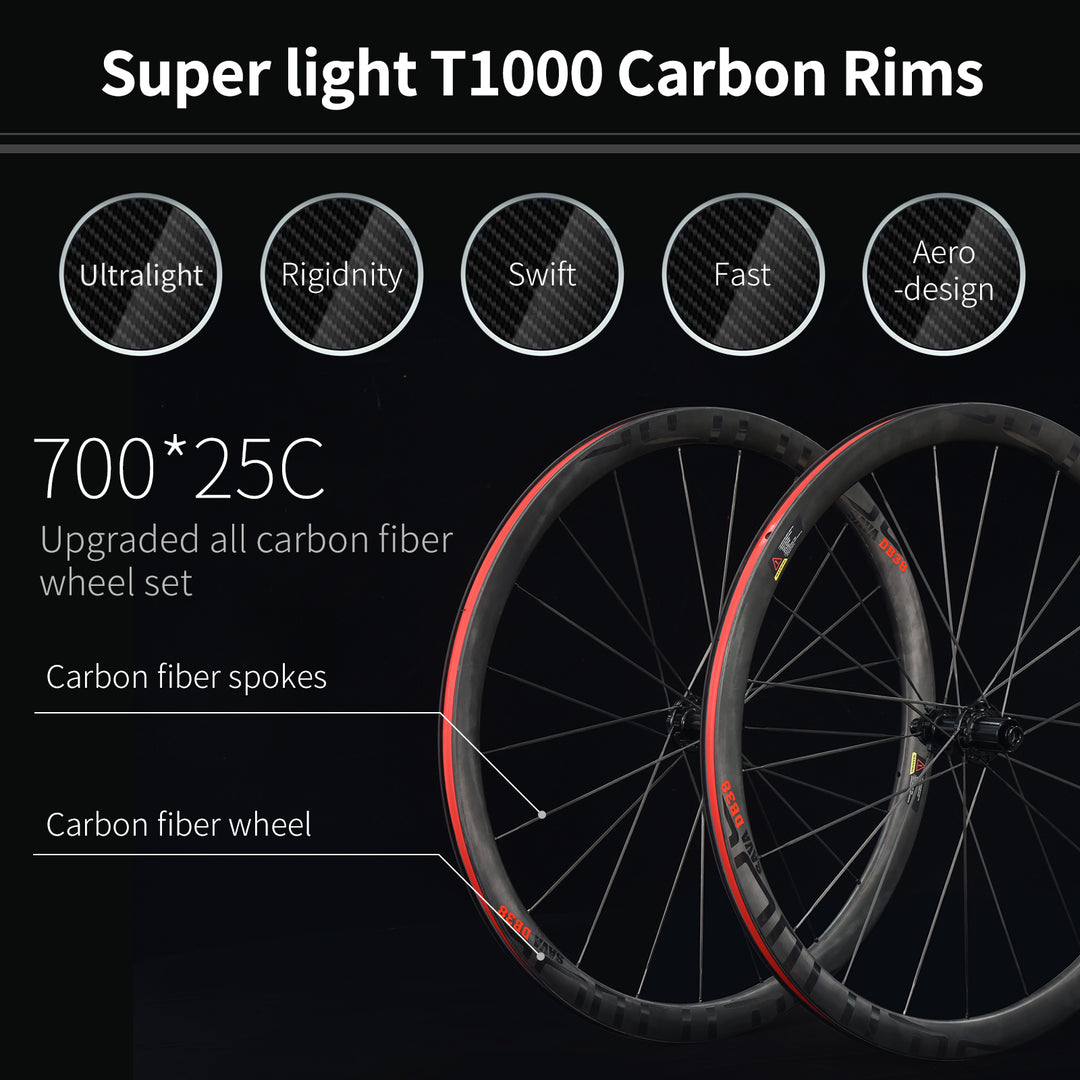

38mm Carbon wheel+700*25C IRC tires
Lightweight,durable, offering with amazing climbing characteristics and still enough aero to keep you flying on the flats
Bike model |
SAVA Di2 8170 |
Brand |
SAVA |
Weight |
6.88kg(15.16lbs) (The weight will vary by about 5% depending on the size) |
Frame |
R13, Internal Cable 700C*540*142 Disc Brake Road Carbon Fiber Frame |

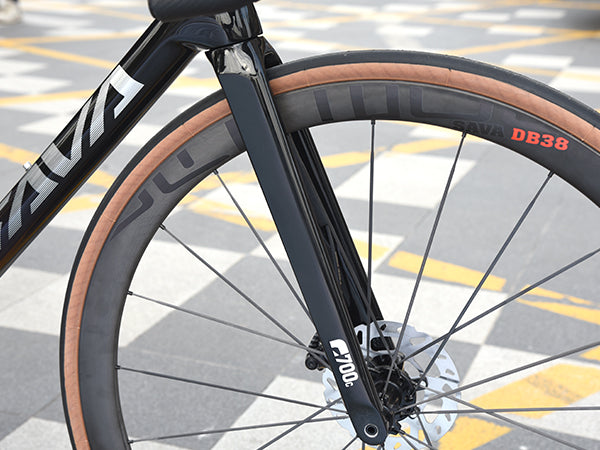

Fork |
R12, Internal routing 700C*100 Disc Brake Road Carbon Fiber Fork |
Front wheel |
Acer D3826TL-F 21H disc brake version carbon ring carbon strip M12*100 |
Rear wheel |
Acer D3826TL-R 21H disc brake version carbon ring carbon strip M12*142. SHIMANO 11S freewheel |
Axle thru axle |
Hollow, rear:142 thru-axle aluminum black 166mm, front:120mm |
Tyre |
IRC JETTY SK/KT 700*25C 60TPI |
Inner tube |
IRC 700C TPU 700*25C nozzle (F/V) 60MM |
Front Fork Headset |
Jingye Bearing 52+52 Bearing + Top Cover + Screws |
Handlebar |
Carbon fiber integrated handlebar HB05-420 carbon fiber 420*31.8 |
Seatpost |
R13 shaped 350MM carbon fiber |
Straps |
Dameng, 3D carbon pattern DD-3DT PU+EVA 2150*30*2.8 black |
Crankset |
SHIMANO FC-R8100.12-SPEED. 2. 170MM, 50-34T W/O CG, W/O BB.BULK |
Bottom bracket |
SHIMANO SM-BB71-41B PRESS FIT TYPE FOR ROAD, RIGHT & LEFT ADAPT BULK |
Chain |
SHIMANO CN-M8100, 108L.12-SPEED, W/QUICK-LINK, BULK |
Left shift lever |
SHIMANO ST-R8170(L), BR-R8170(F), FOR 140MM. 800MM. 3 GROUP, BULK |
Right shift lever |
SHIMANO ST-R8170(R), BR-R8170(R)25MM.1500MM.3 GROUP, BULK |
Front derailleur |
SHIMANO FD-R8150.12-SPEED. CS-ANGLE: 61-66. GEAR: 50-54T, CL: 43.5MM, BULK |
Rear derailleur |
SHIMANO RD-R8150.12-SPEED.W/TL-EW300, 3RD GROUP, BULK |
Flywheel |
SHIMANO CS-R8100.12-SPEED, 11-12-13-14-15-16-17-19-21-24-27-30T, BULK |
Disc |
SHIMANO SM-RT70 SS 140MM.E/LOCK RING(EXTERNAL SERRATION), BULK |
Battery |
SHIMANO BT-DN300, BUILT-IN TYPE, OTHERS SPEC, BULK |
Cable Wire |
SHIMANO EW-SD300, 600MM, EW-SD300, 1200MM |
Charging Cables |
SHIMANO, EW-EC300, 1500MM |
Pedals |
Sanyun CS-201A |
Saddle |
Jin Yifeng T90. Carbon fiber 3K bottom shell |
Screws |
M5*16mm hexagon socket head cap screw, stainless steel |
Frame size | Recommend size(cm) | Ft+In |
49cm |
160cm-166cm |
5'3''-5'5'' |
52cm |
167cm-175cm |
5'6''-5'9'' |
54cm |
175cm-180cm |
5'9''-5'11'' |
56cm |
180cm-190cm |
5'11''-6'3'' |
58cm |
above 190cm |
above 6'3'' |

When we receive your order, we will submit it to the factory for production, assembly, debugging, and shipment. This process often takes 6-8 days. According to previous records, the delivery time of air freight to various countries is as follows: (delivery time For reference only, it may be delayed due to irresistible factors such as the epidemic situation and bad weather)
USA: 6-8 days, free shipping, duty free
Canada, Mexico: 6-10 days, shipping fee is required, and the shipping fee will be displayed at checkout
Asian countries: 6-10 days, free shipping, duty free
Middle East countries: 8-12 days, free shipping
European countries: 10-15 days, shipping fee is required, and the shipping fee will be displayed at checkout
Australia: 15-20 days, shipping fee is required, and the shipping fee will be displayed at checkout
Remarks (air freight needs to disassemble the battery and send it separately)
