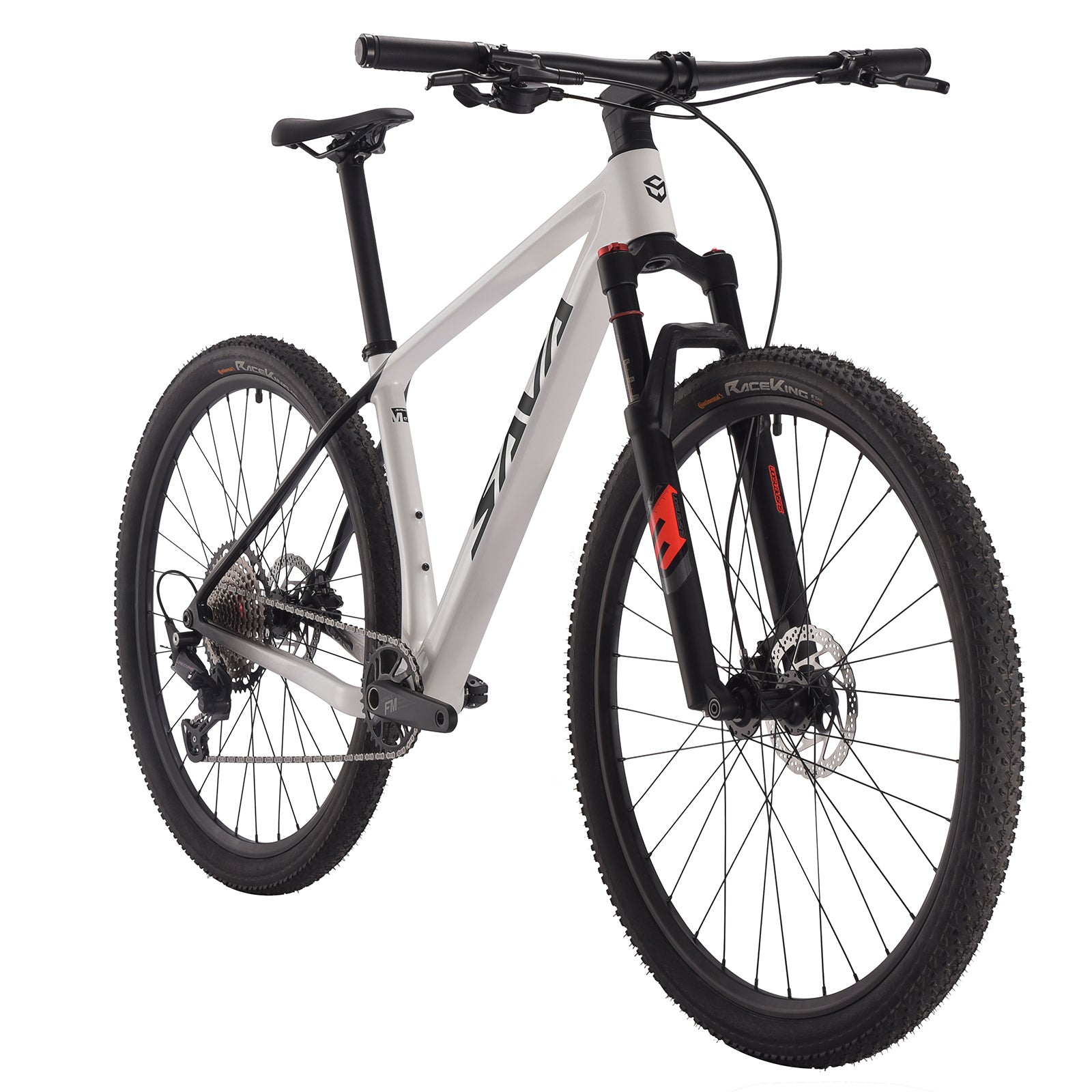

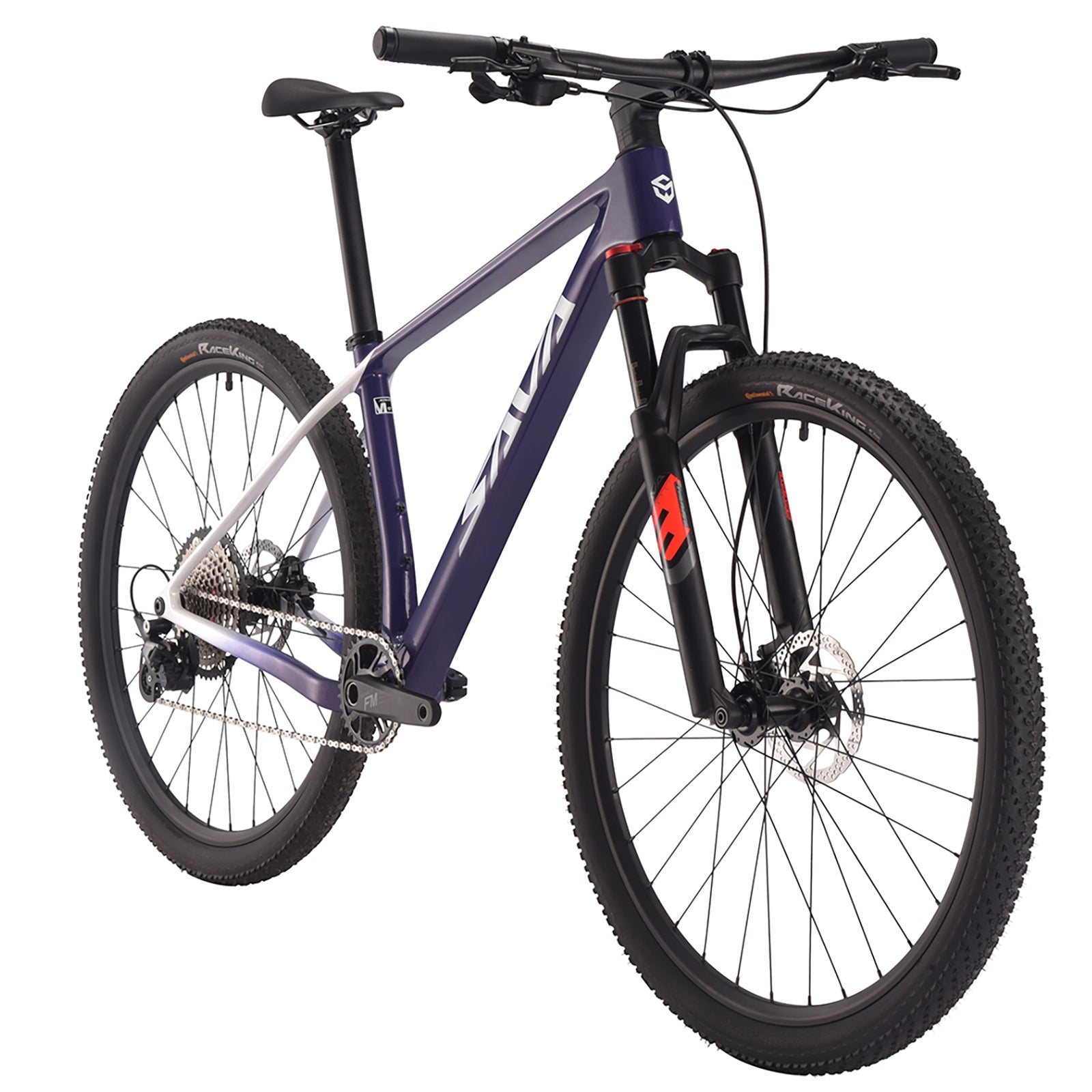

Engineered for precision and performance, the SAVA Lantop612 features a lightweight T800 carbon fiber frame with 15/17/19-inch sizing and four color options. Equipped with a responsive air fork, SHIMANO DEORE SL-M6100 12-speed drivetrain, MT-200 hydraulic disc brakes, and Continental tires, it delivers exceptional control on diverse terrains. The ergonomic aluminum components—handlebar, seat post, and breathable saddle—ensure comfort during extended rides. With a durable aluminum wheelset, KMC chain, and included multi-tools, this bike combines speed, reliability, and versatility for serious riders.
Hightlight:
Lantop612 | Lantop612 plus |
Weight:About 10.08kg(22.2lbs) | Weight:About 9.69kg(21.4lbs) |
T800 Carbon Fiber Frame | T800 Carbon Fiber Frame |
SHIMANO DEORE M6100 Transmission | SHIMANO DEORE M6100 Groupset |
Hydraulic Disc Brake | Hydraulic Disc Brake |
KMC Chain | SHIMANO CN-M6100 Chain |
27.5/29 inch wheels Optional | 27.5/29 inch wheels Optional |
Free Pedals included | Free Pedals included |

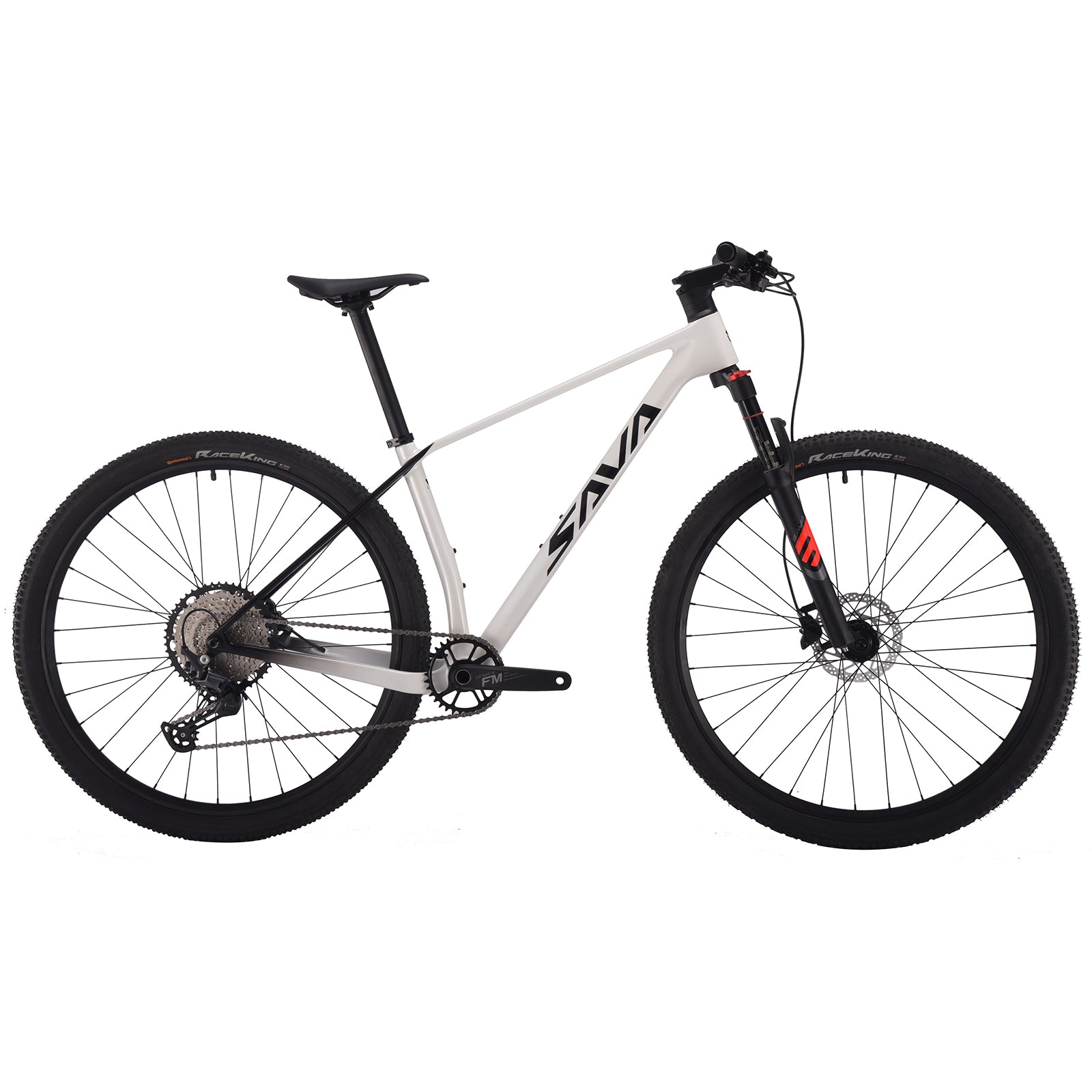

Product Model: Lantop 612(M6100-12S)
Wheel Size: 27.5/ 29 inch
Frame Size:15/17/19 inch

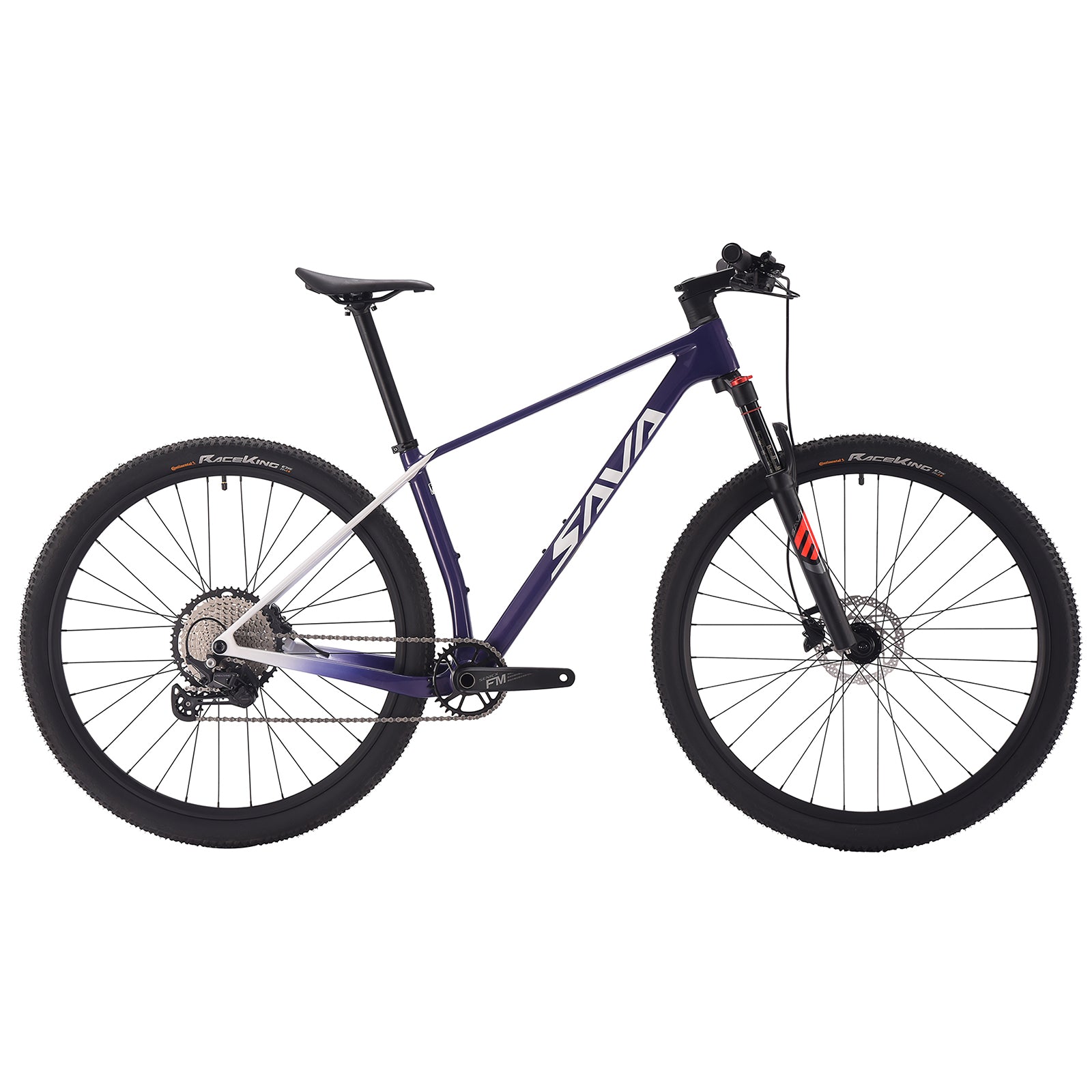

Color: Purple,White
weights: 10.08kg

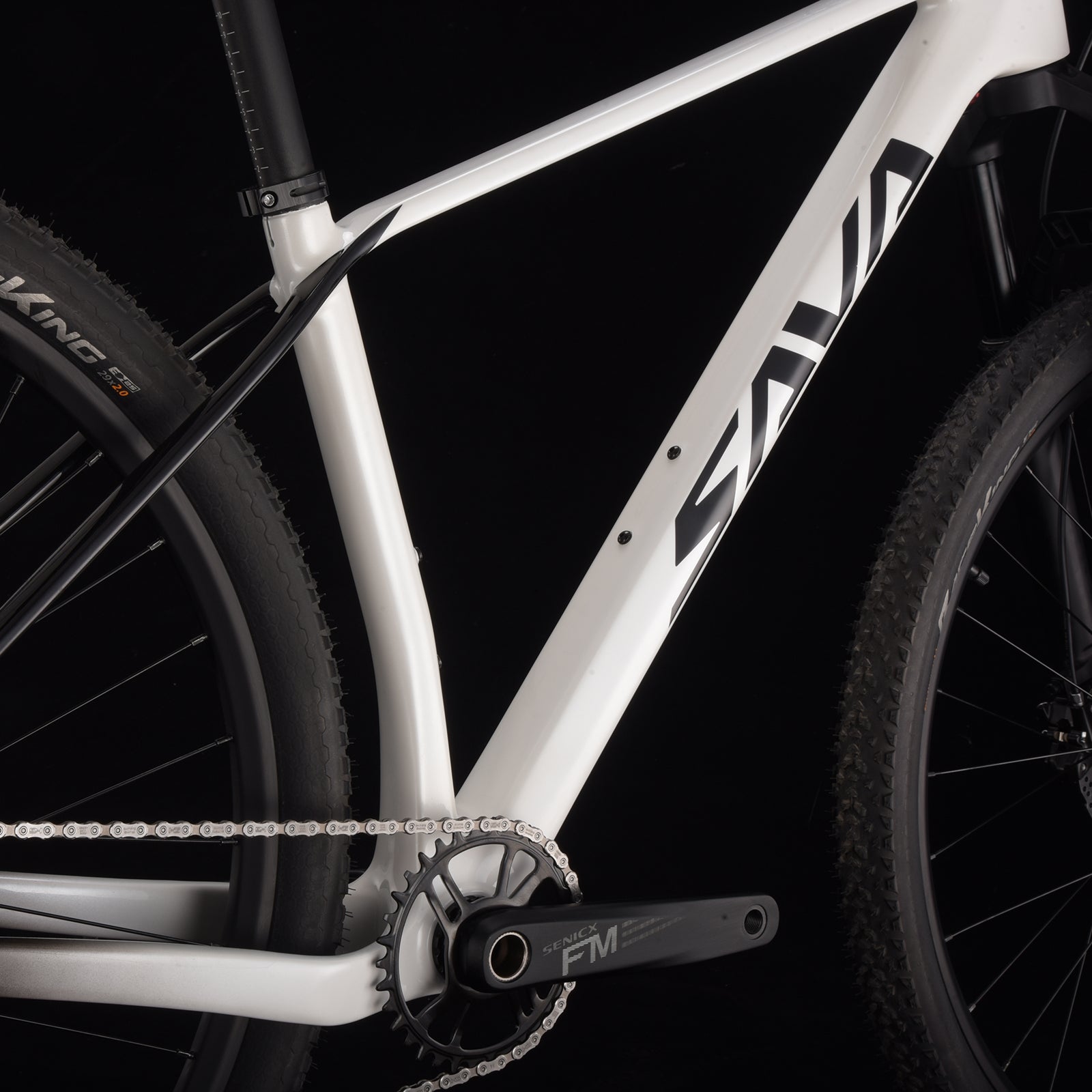

Frame Material: T800 Carbon

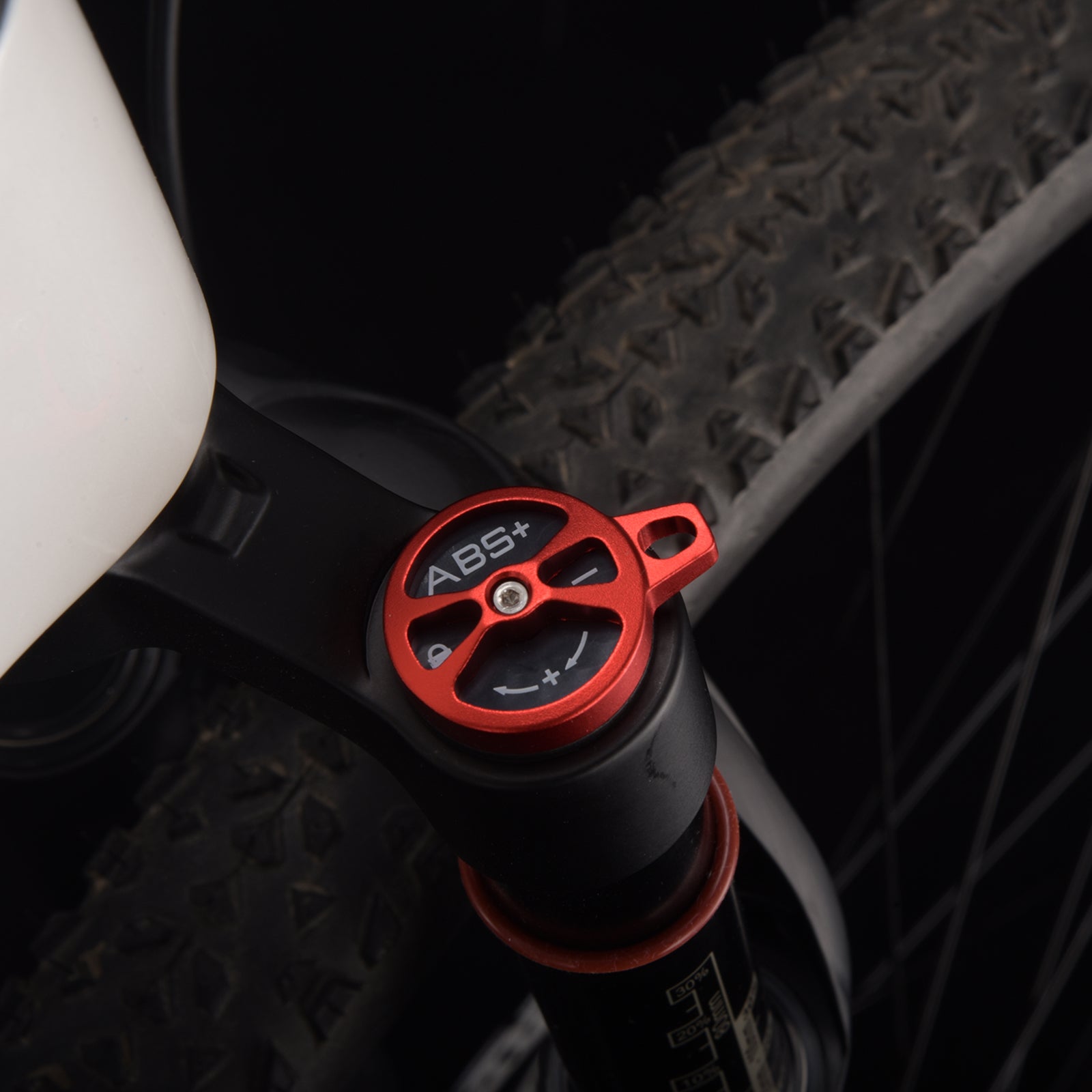

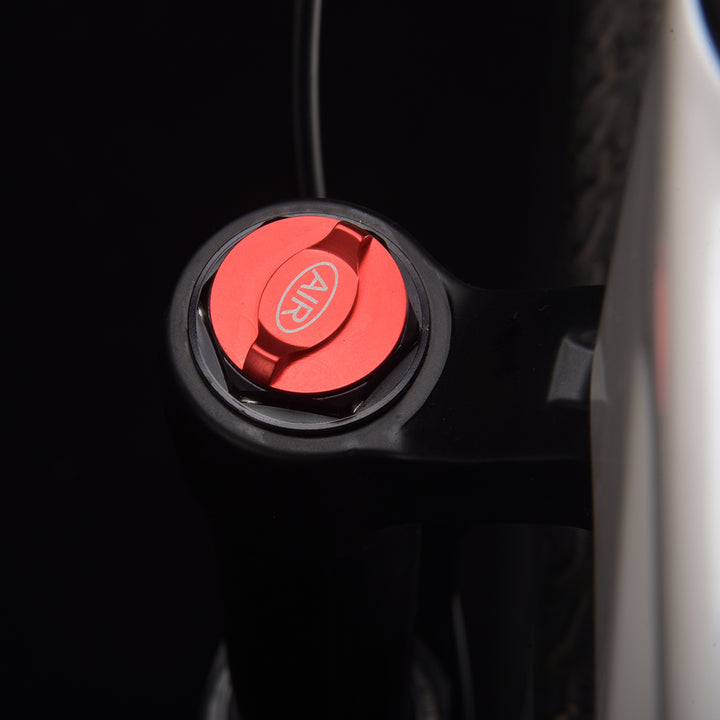

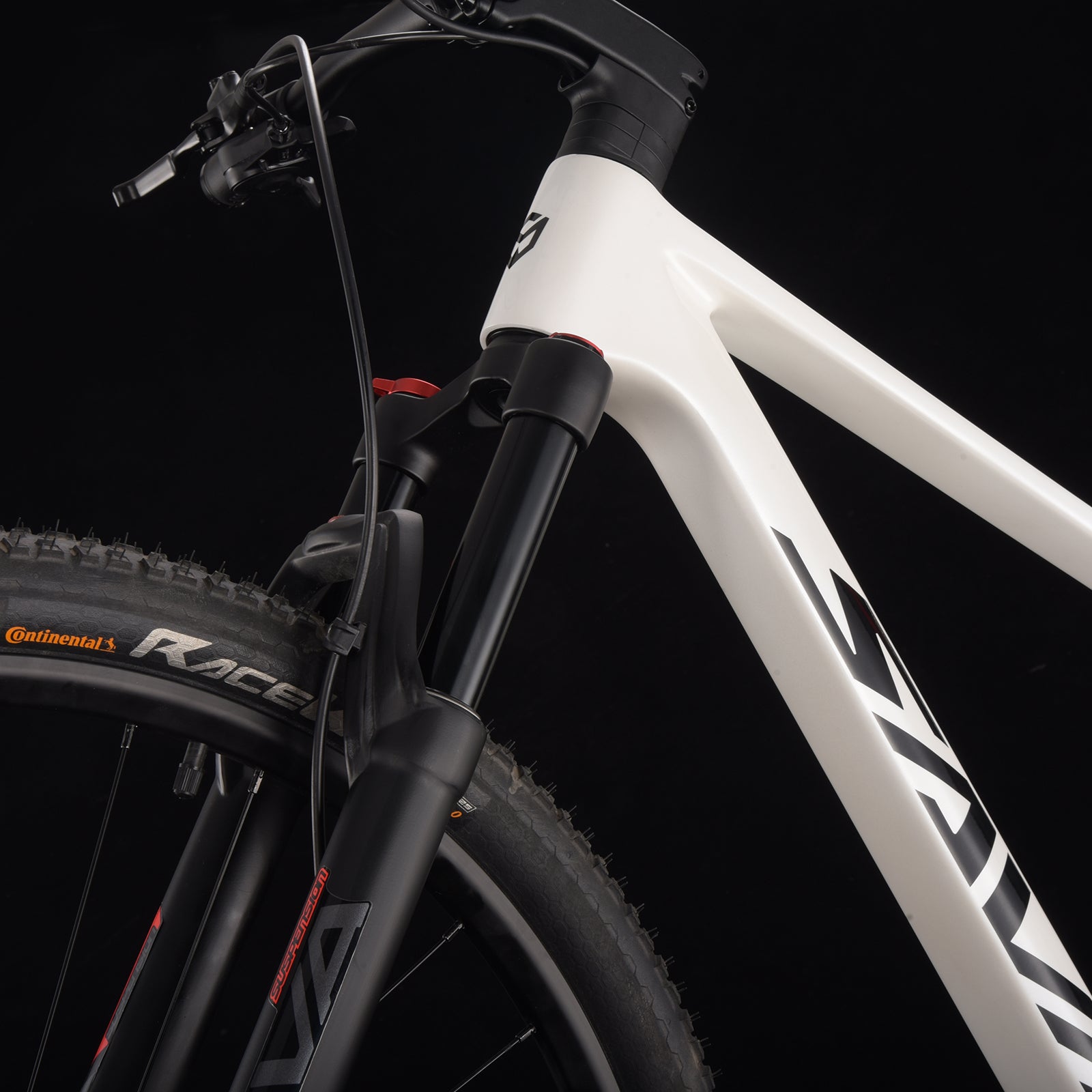

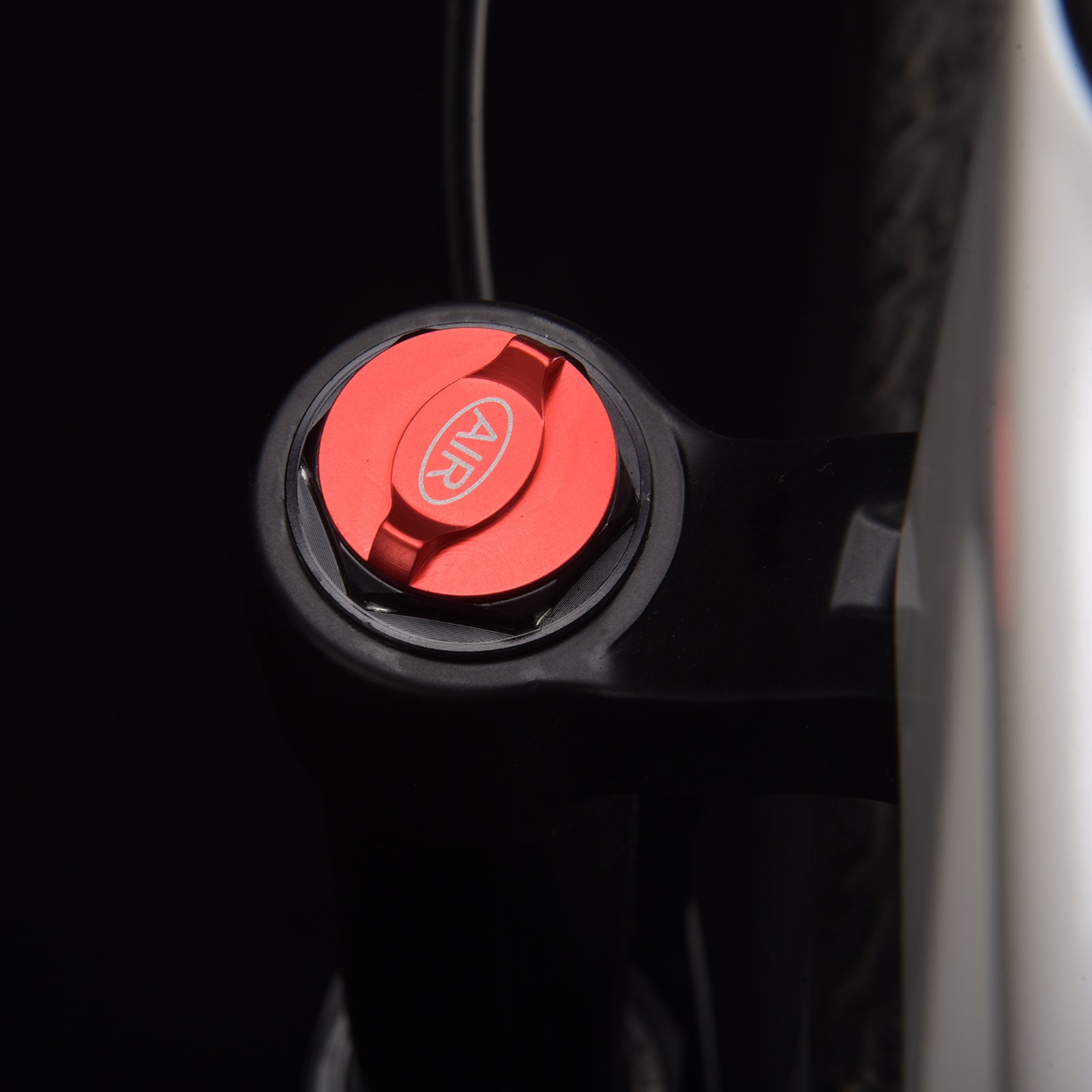

Fork: AIR FORK

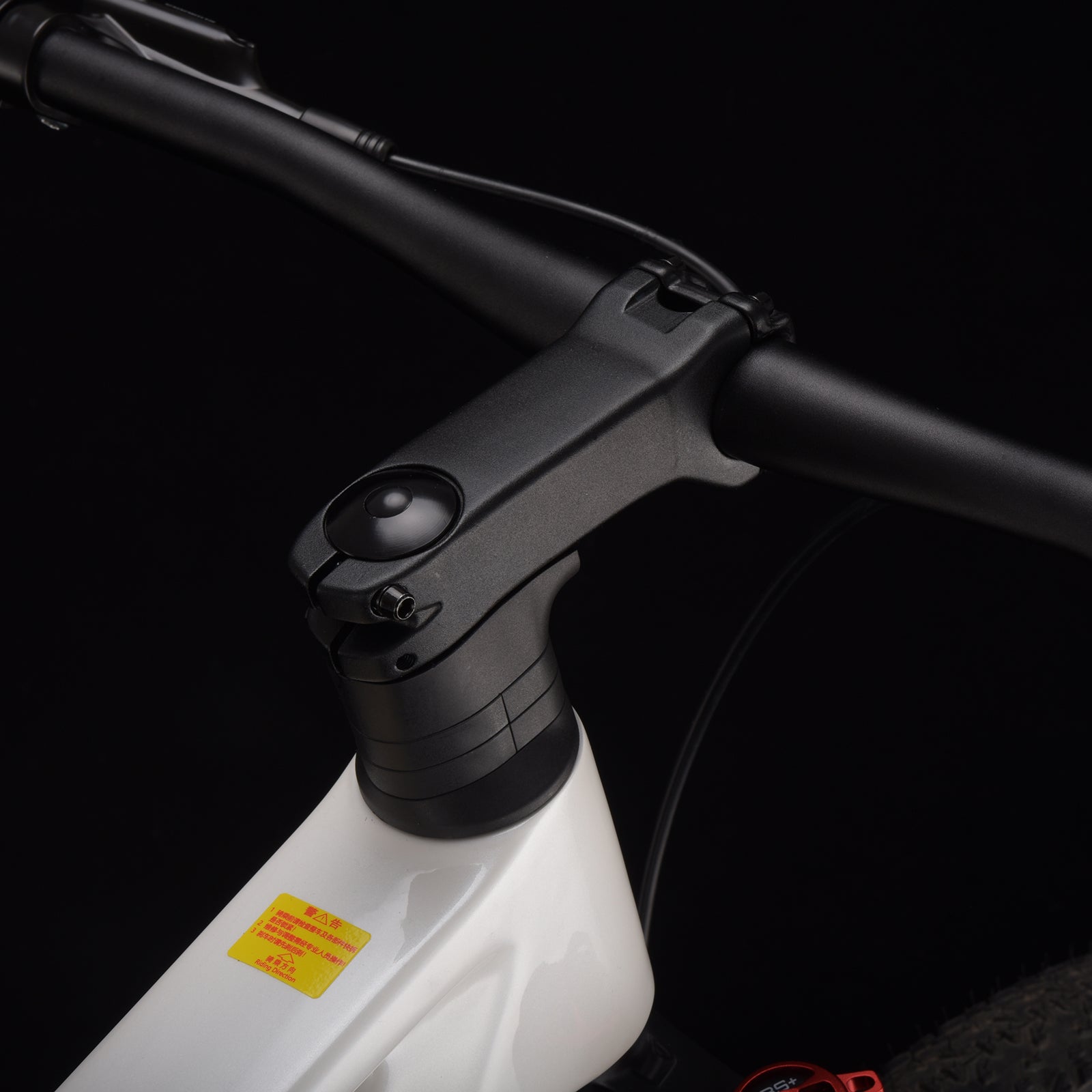

Handlebar: Aluminum

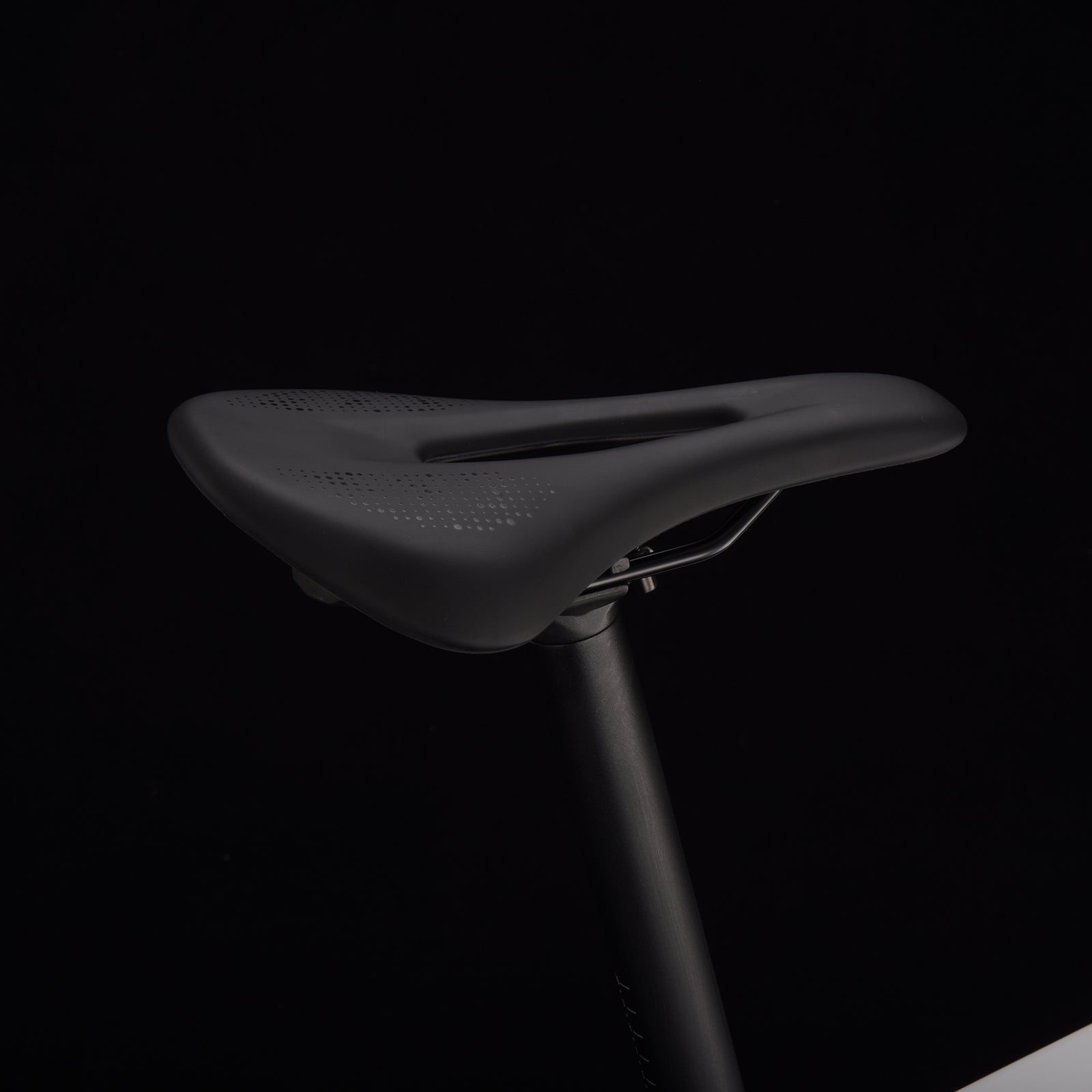

Saddle: Ergonomic Breathable
Seat Post: Aluminum
Derailleur/Brake System:

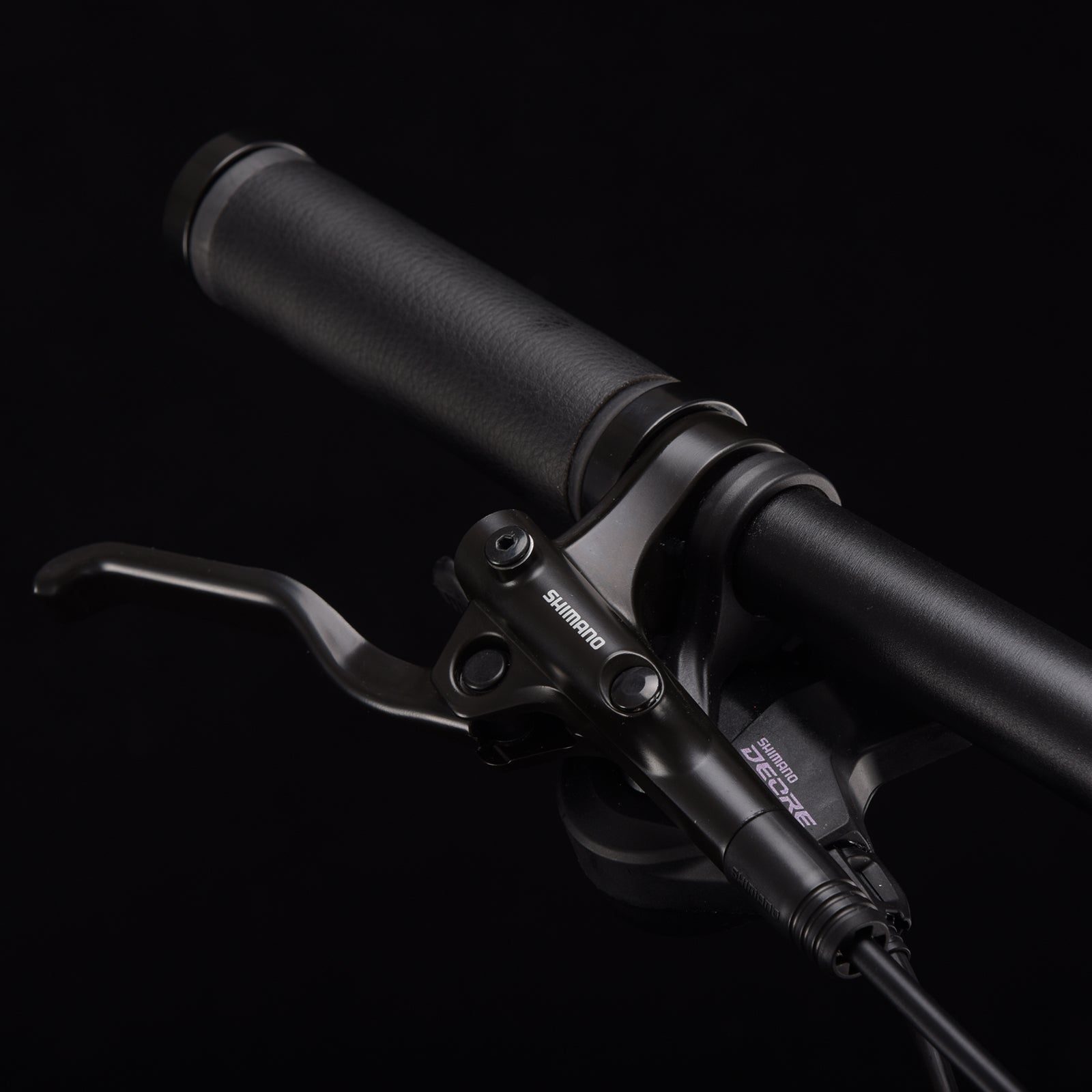

Shift lever:SHIMANO DEORE SL-M6100

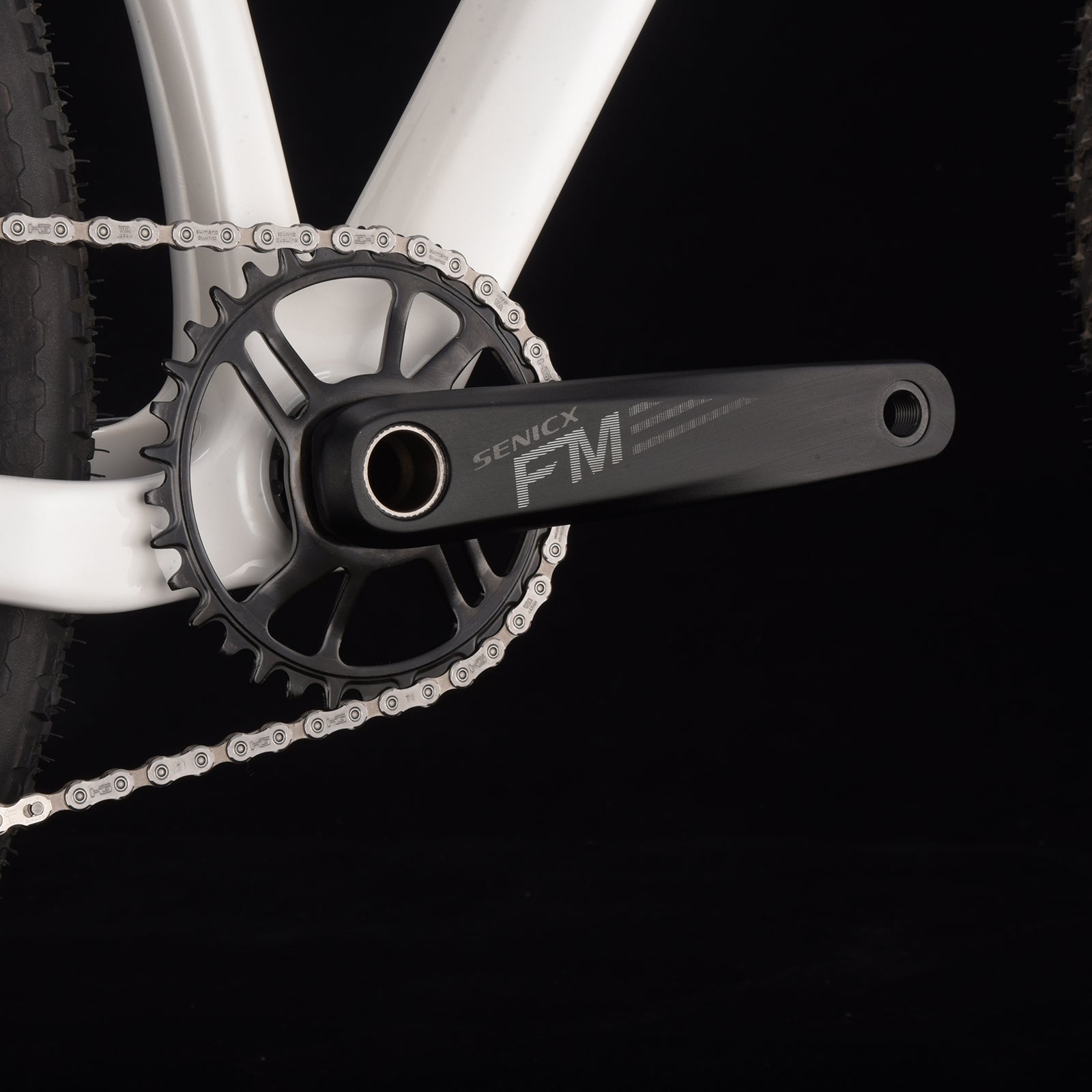

Crank Hollow Crank

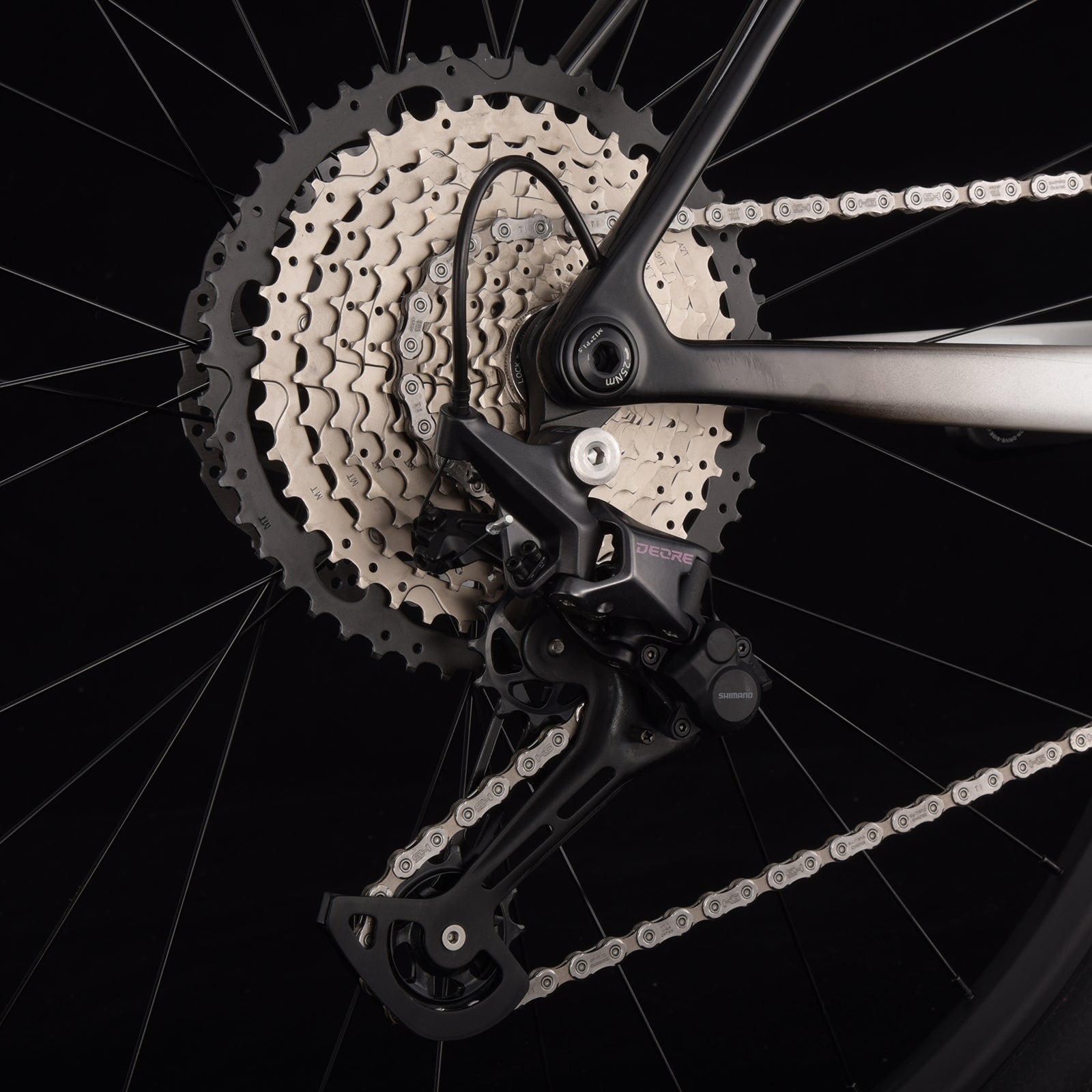

Rear Derailleur: SHIMANO DEORE RD-M6100

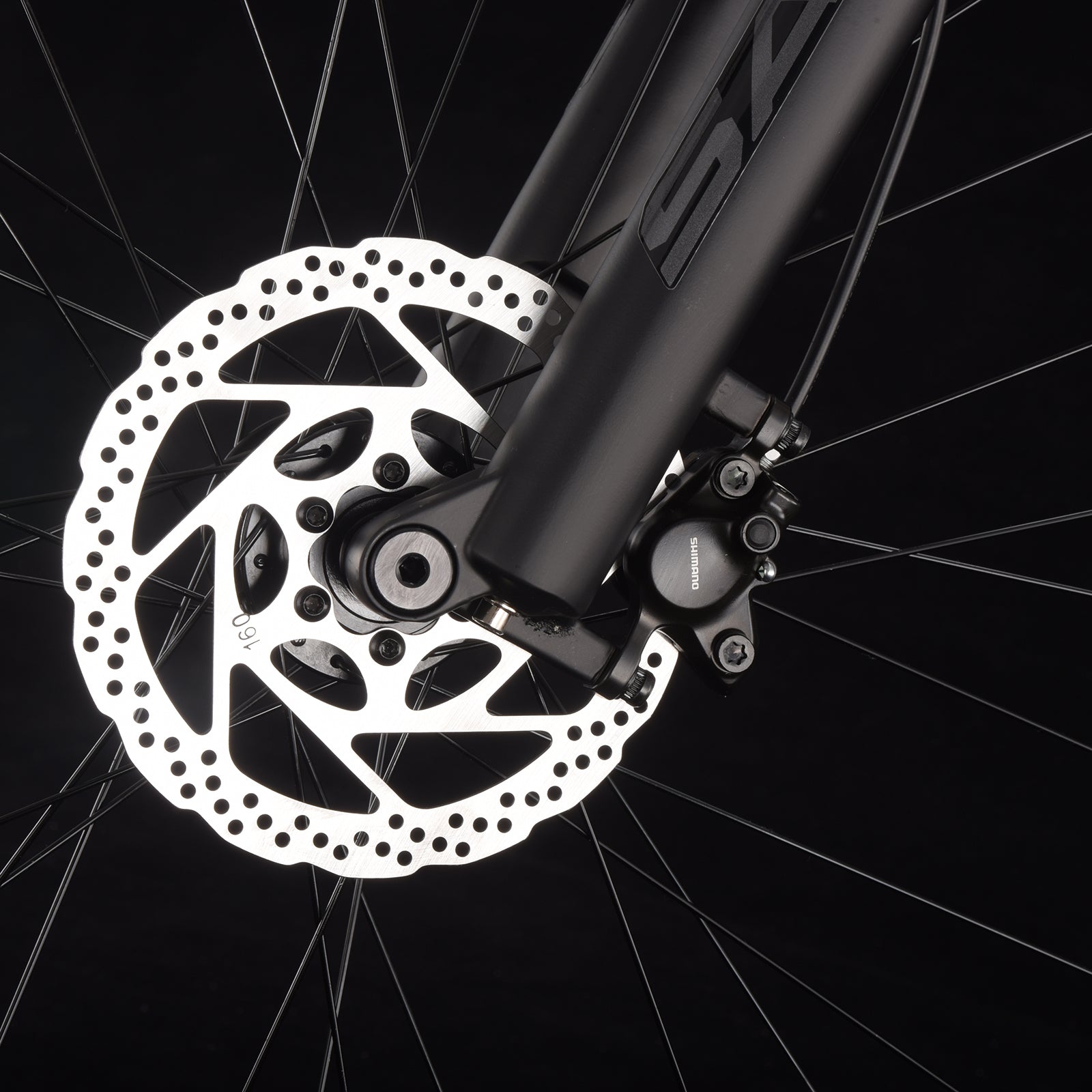

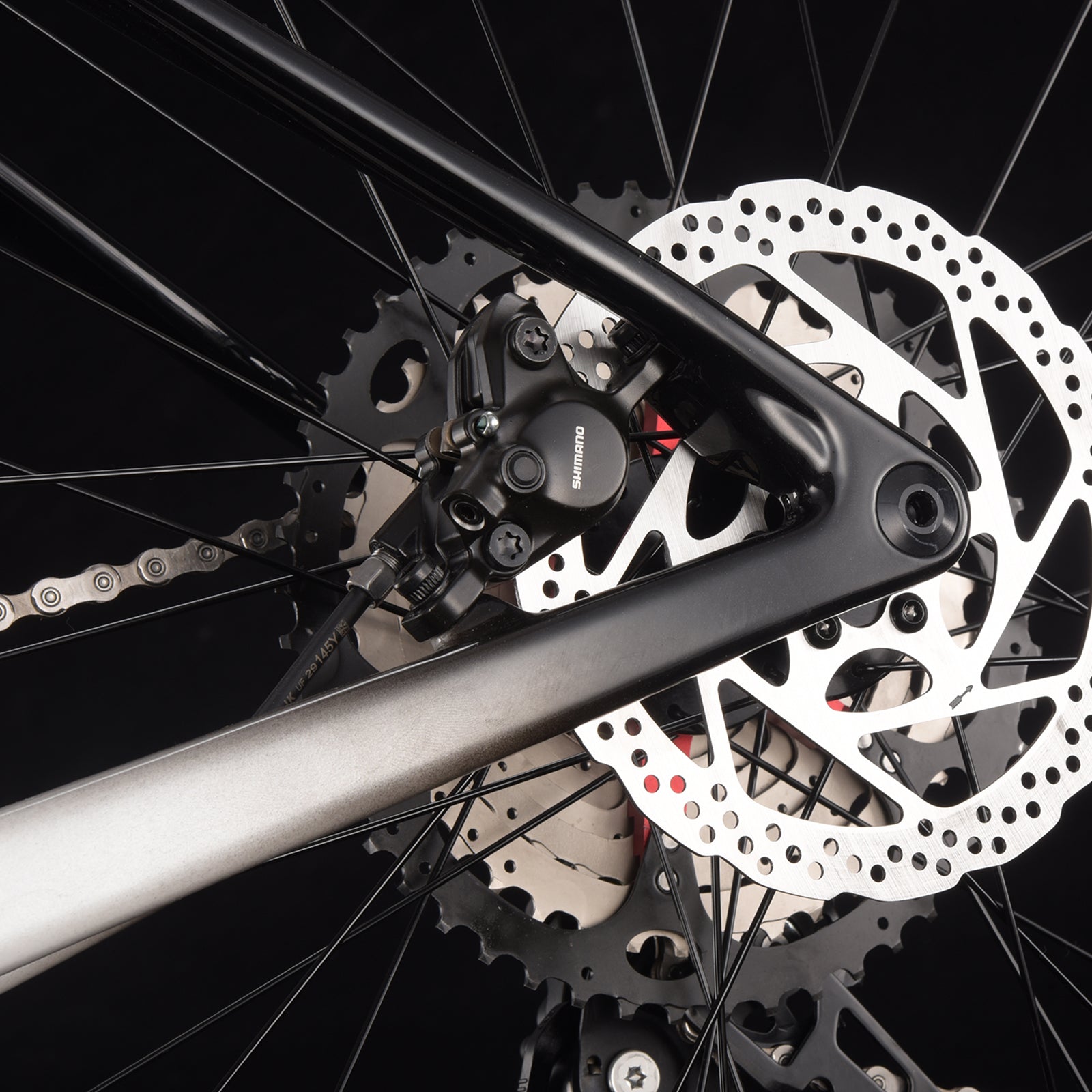

Brakes: SHIMANO MT-200
Transmission Control System:
Freewheel: 12S Mountain Cassette
Chain: KMC
Pedals: Bearing Pedals
Wheelset System:
Rim: Aluminum

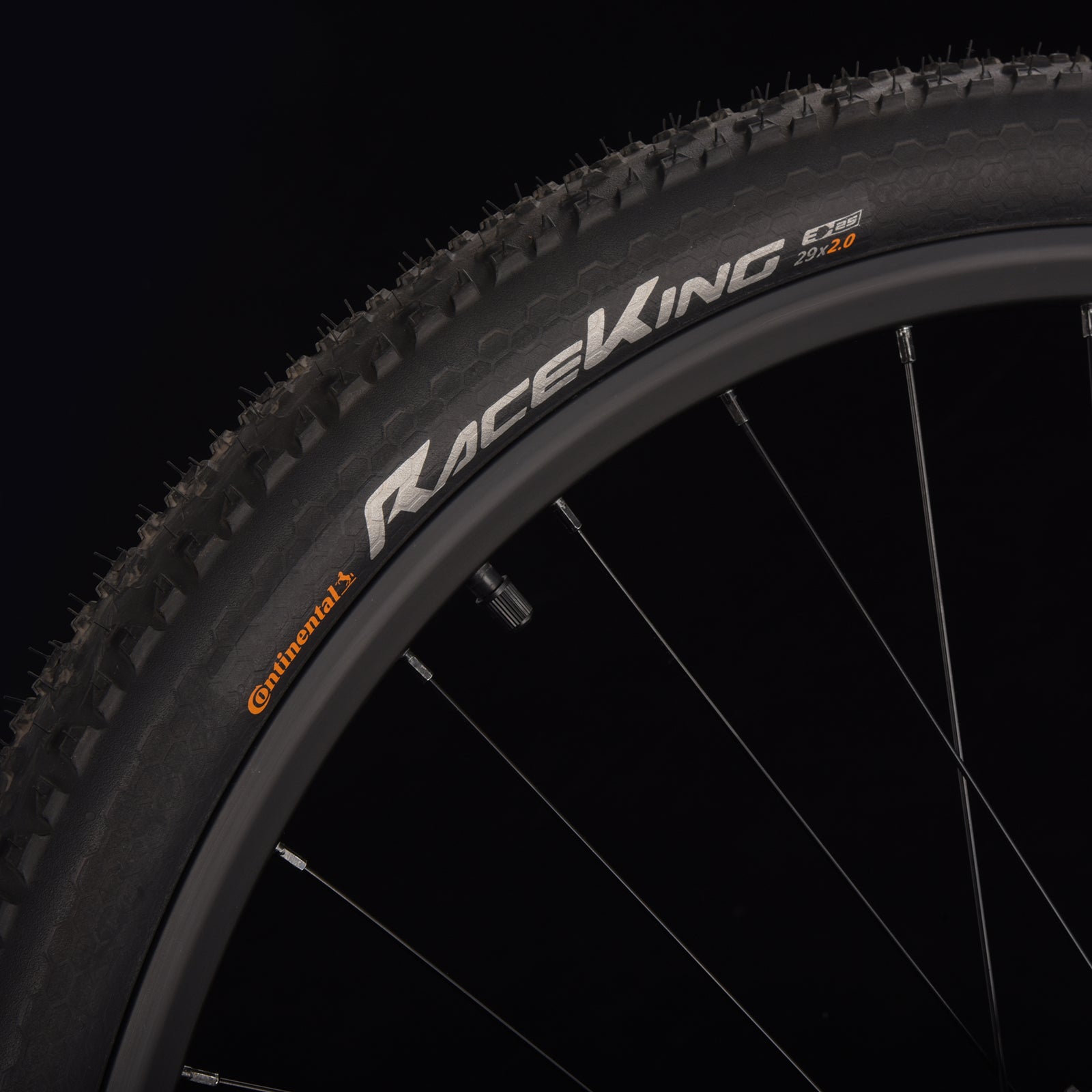

Tires: Continental Tire
Accessories:Multi Assemble tools, User Manual

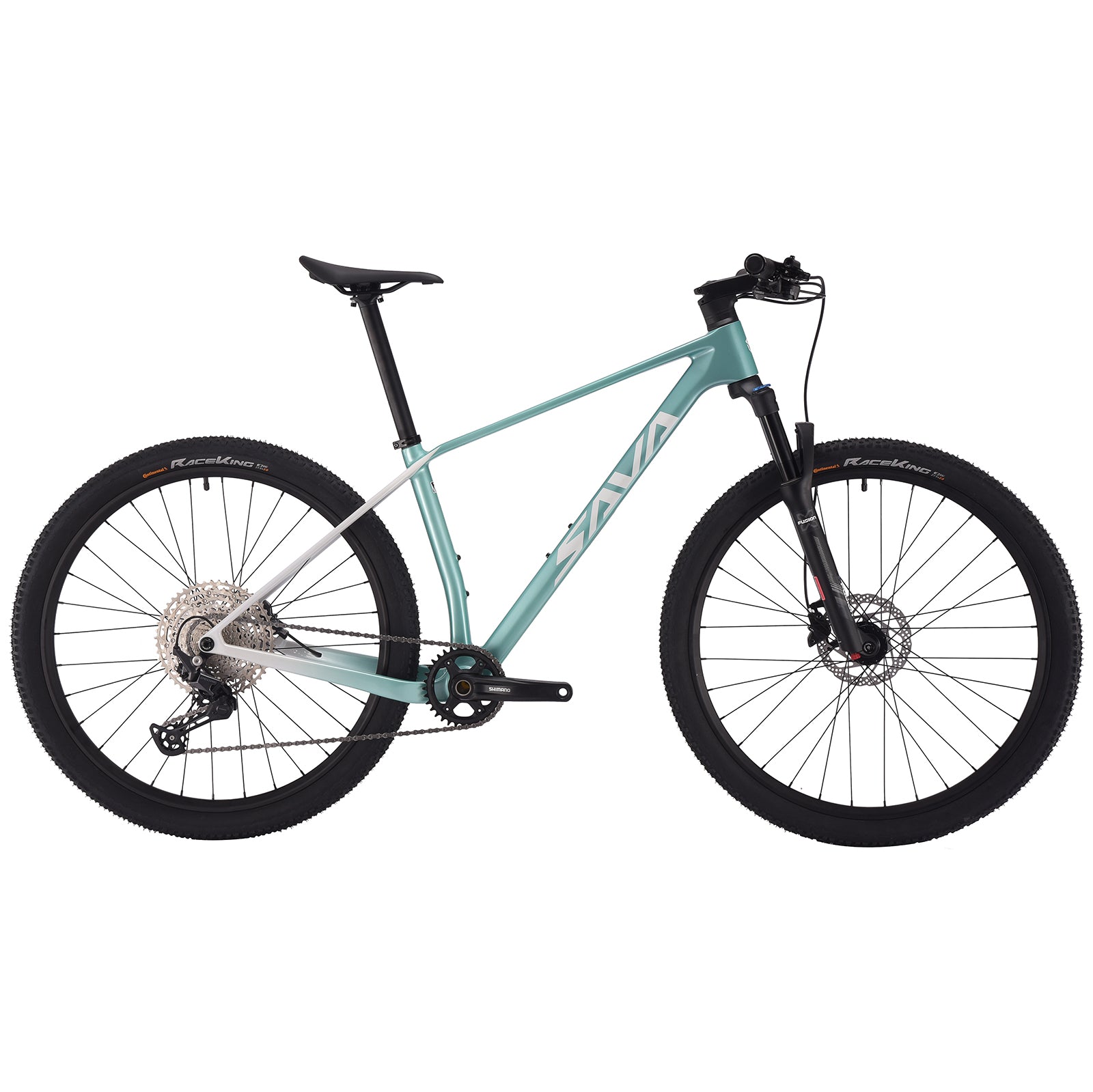

Product Model: Lantop 612 PLUS(M6100-12S)
Wheel Size: 27.5/ 29 inch
Frame Size:15/17/19 inch
Color: Green
weights: 9.69kg
Frame Material: T800 Carbon
Fork: AIR FORK
Handlebar: Aluminum
Saddle: Ergonomic Breathable
Seat Post: Aluminum
Derailleur/Brake System:
Shift lever:SHIMANO DEORE SL-M6100
Disk: SHIMANO FC-MT510
Rear Derailleur: SHIMANO DEORE RD-M6100
Brakes: SHIMANO MT-200
Transmission Control System:
Freewheel: 12S Mountain Cassette
Chain: SHIMANO DEORE M6100
Pedals: Bearing Pedals
Wheelset System:
Rim: Aluminum
Tires: Continental Tire
Accessories:Multi Assemble tools, User Manual
Parameter | 15(S) | 17(M) | 19(L) | 21(XL) |
---|---|---|---|---|
Recommend Height(cm) | 165-175cm | 175 -182cm | 182-188cm | |
Recommend Height(ft/in) | 5‘5"-5’9" | 5‘9"- 6’0" | 6‘0"- 6’2" | |
A Seat Tube (mm) | 394 | 432 | 483 | 533 |
B Top Tube (mm) | 585 | 600 | 618 | 640 |
C BB Drop(mm) | 65 | 65 | 65 | 65 |
D Rear Center(mm) | 435 | 435 | 435 | 435 |
E Seat Angle (°) | 74° | 74° | 74° | 74° |
F Head Angle(°) | 69° | 69° | 69° | 69° |
G Front Center(mm) | 670 | 685 | 704 | 727 |
H Head Tube Length (mm) | 95 | 95 | 105 | 125 |
I Fork Offset(mm) | 44 | 44 | 44 | 44 |
J Reach (mm) | 407.2 | 422.3 | 437.64 | 454.29 |
K Stack (mm) | 619.8 | 619.8 | 627 | 647.7 |
L Frok Lenght(mm) | 515 | 515 | 515 | 515 |
M Wheelbas (mm) | 1086.8 | 1101.9 | 1131.1 | 1155 |
- |
