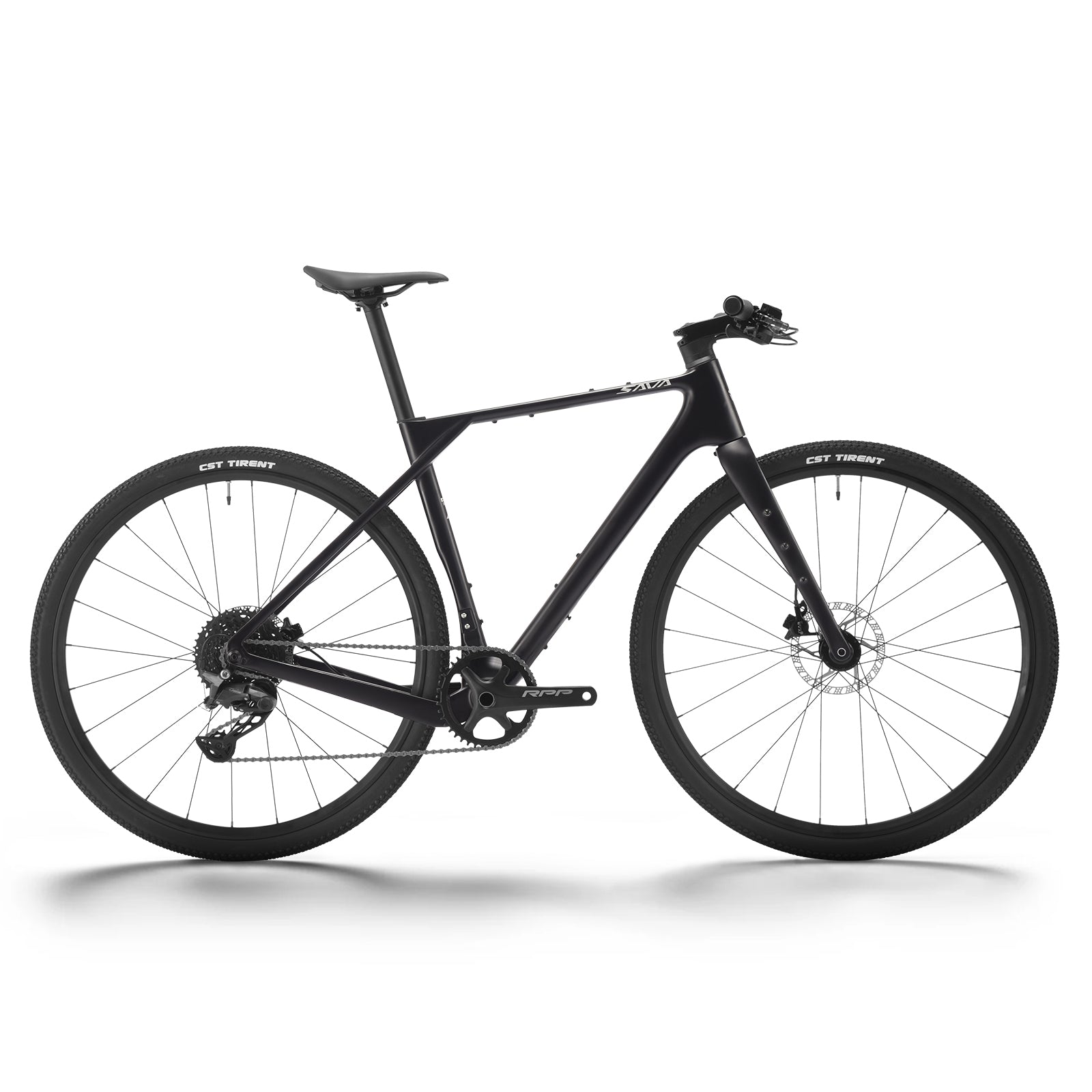

SAVA Gelaro SF6-Classic black

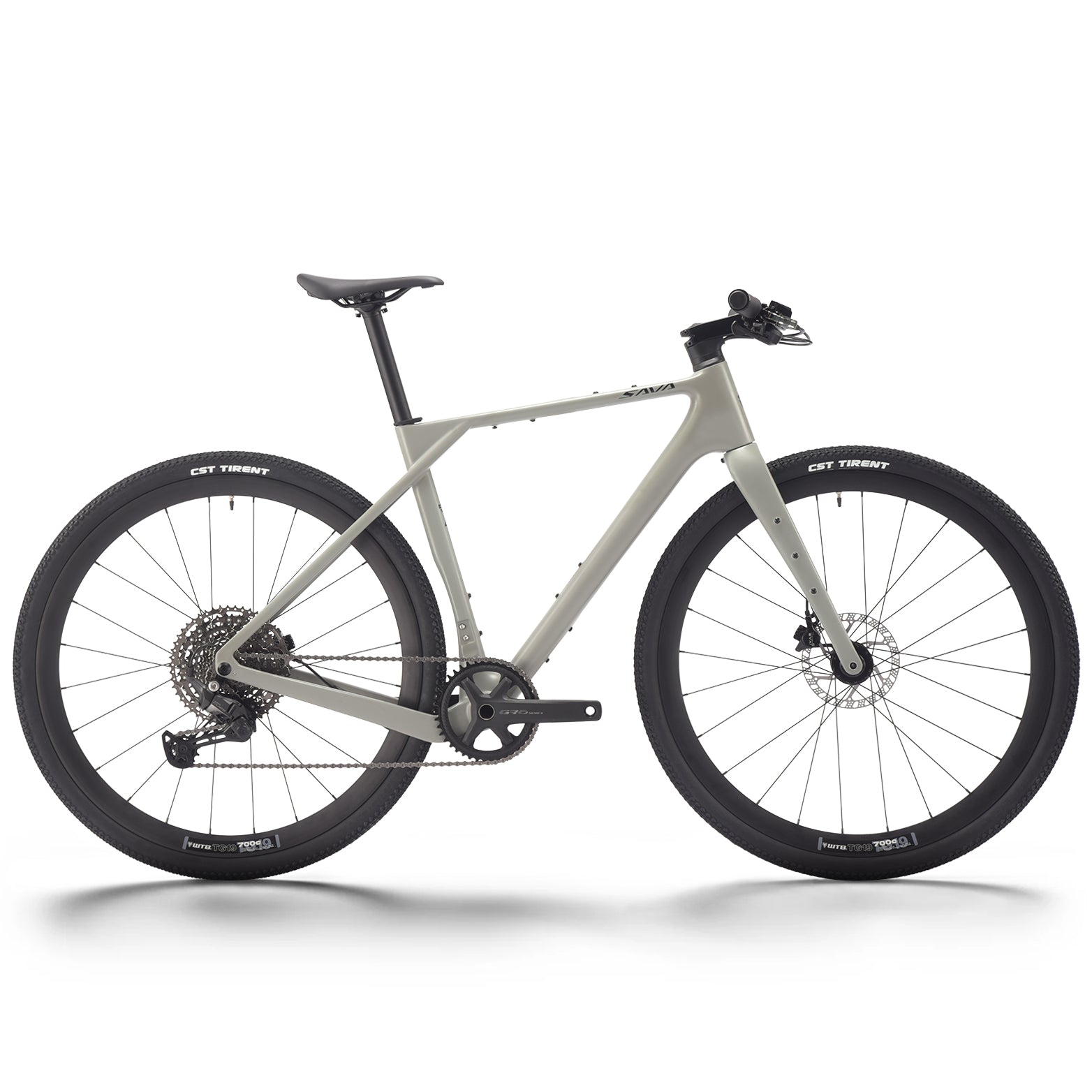

SAVA Gelaro SF6-Mist grey

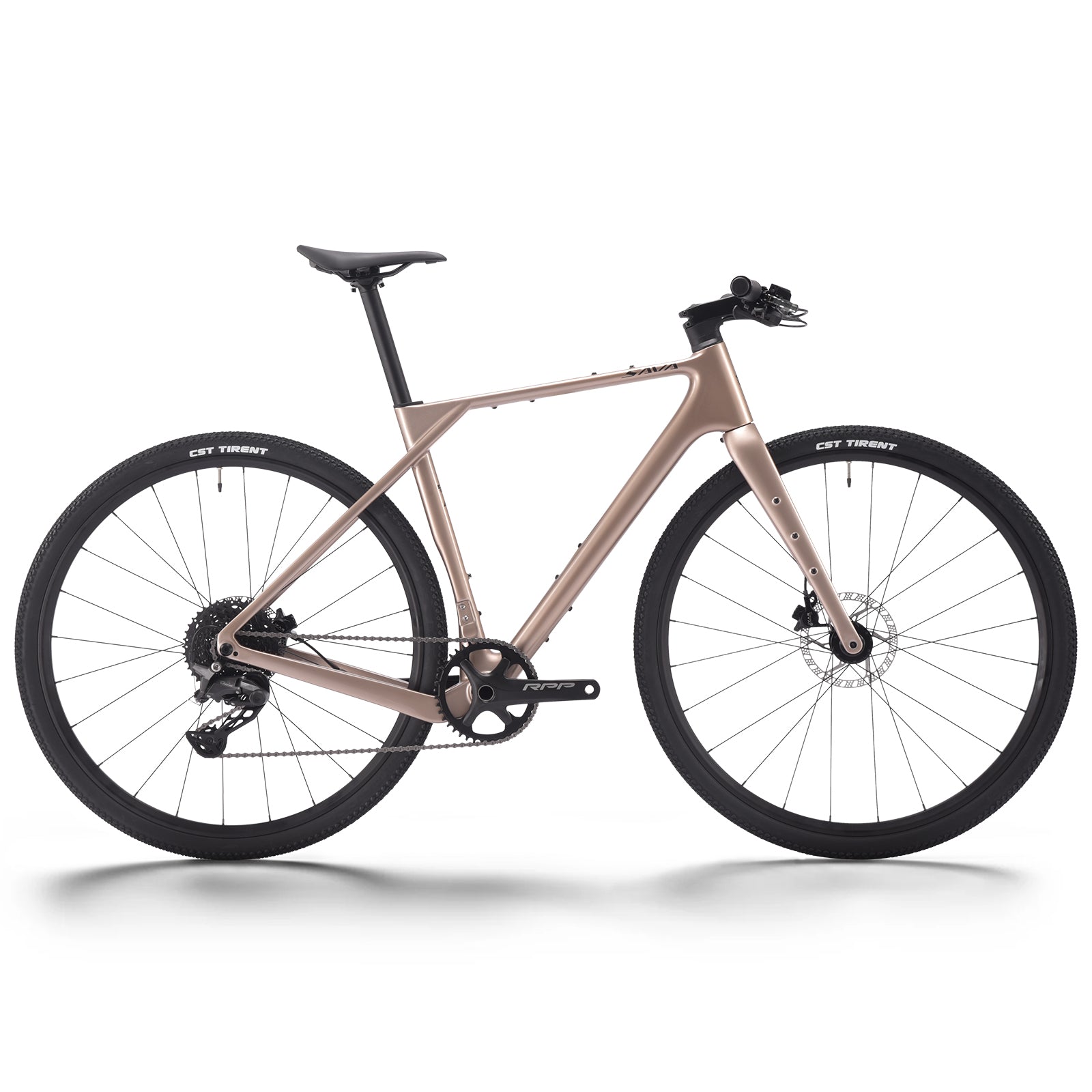

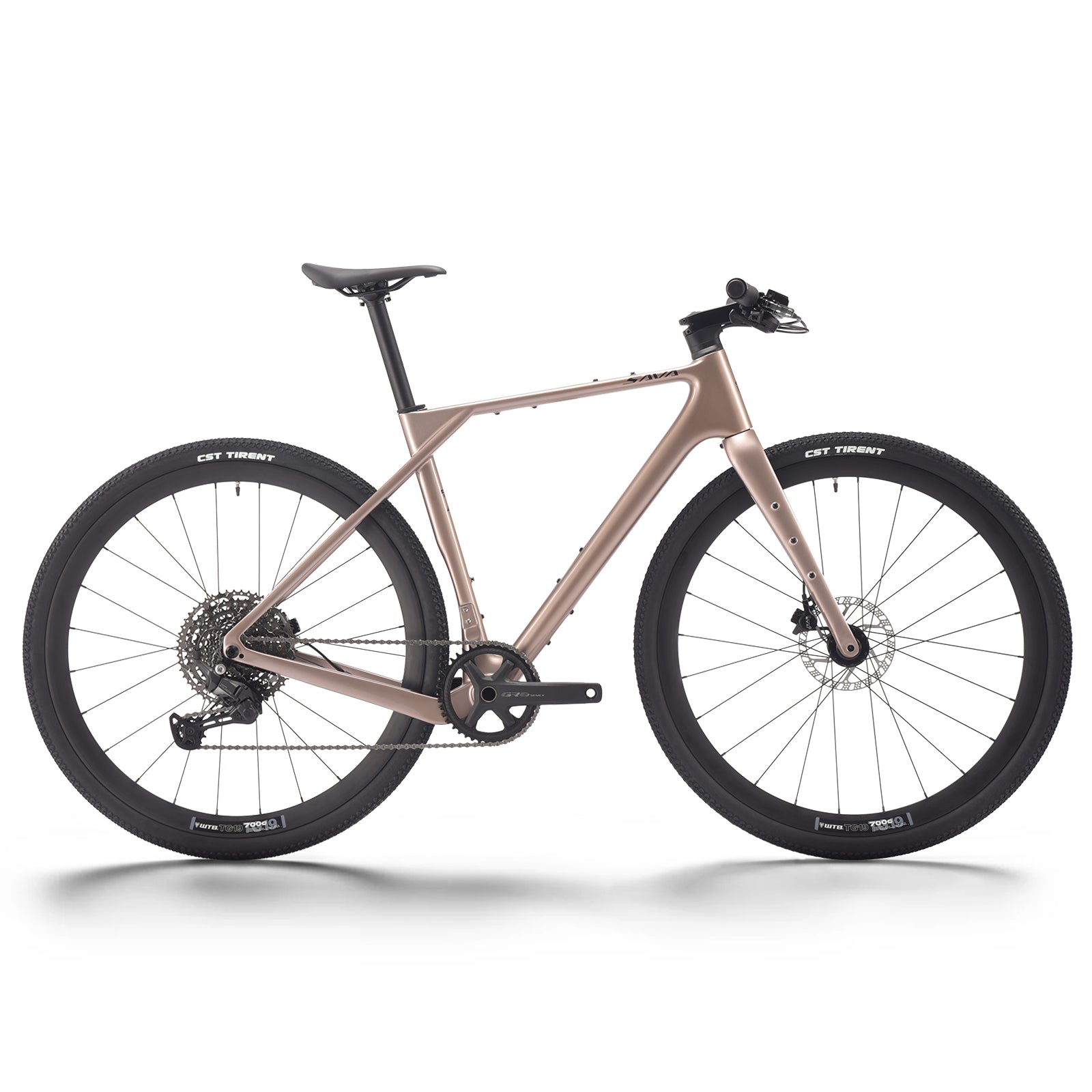

SAVA Gelaro SF6-U6020-Desert Gold

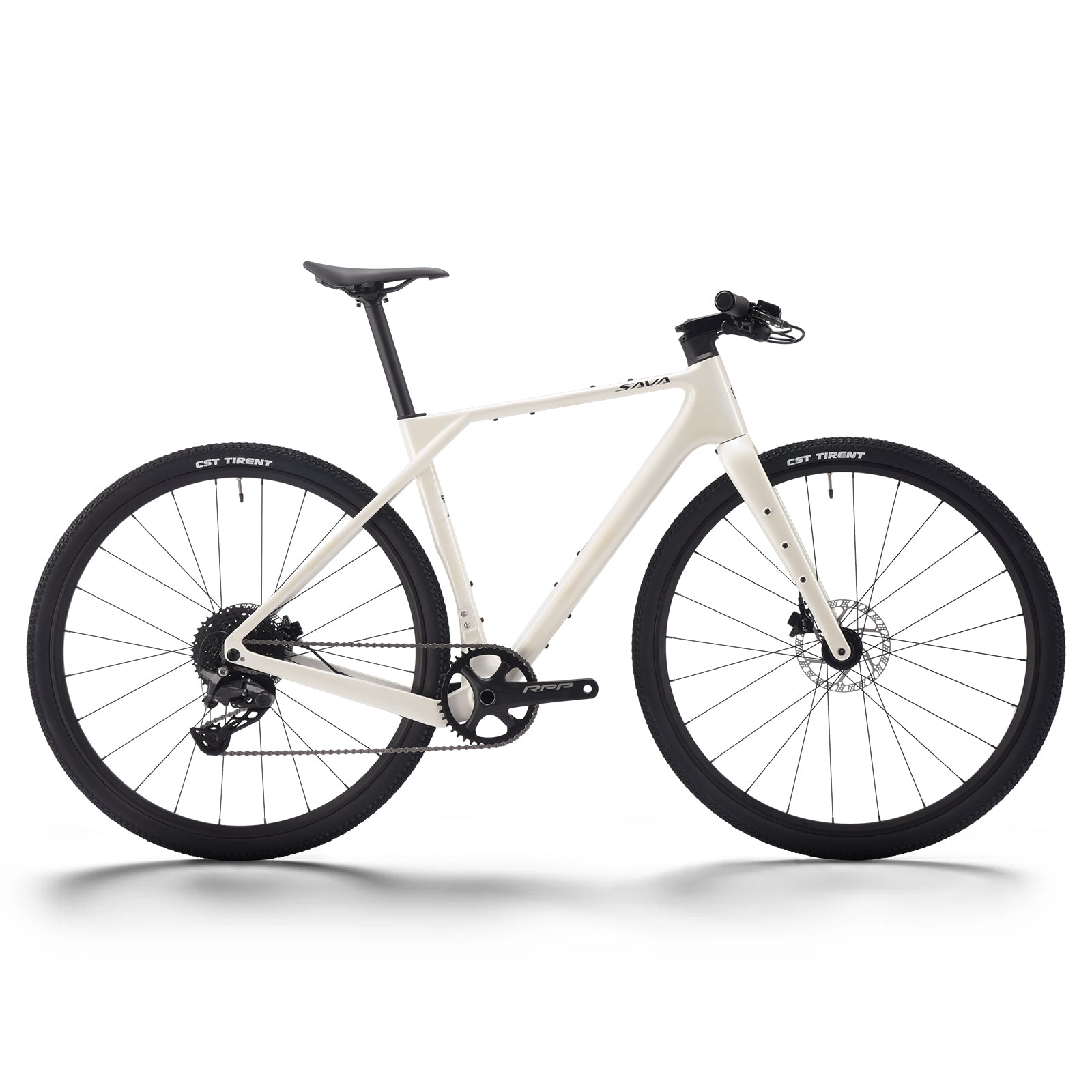

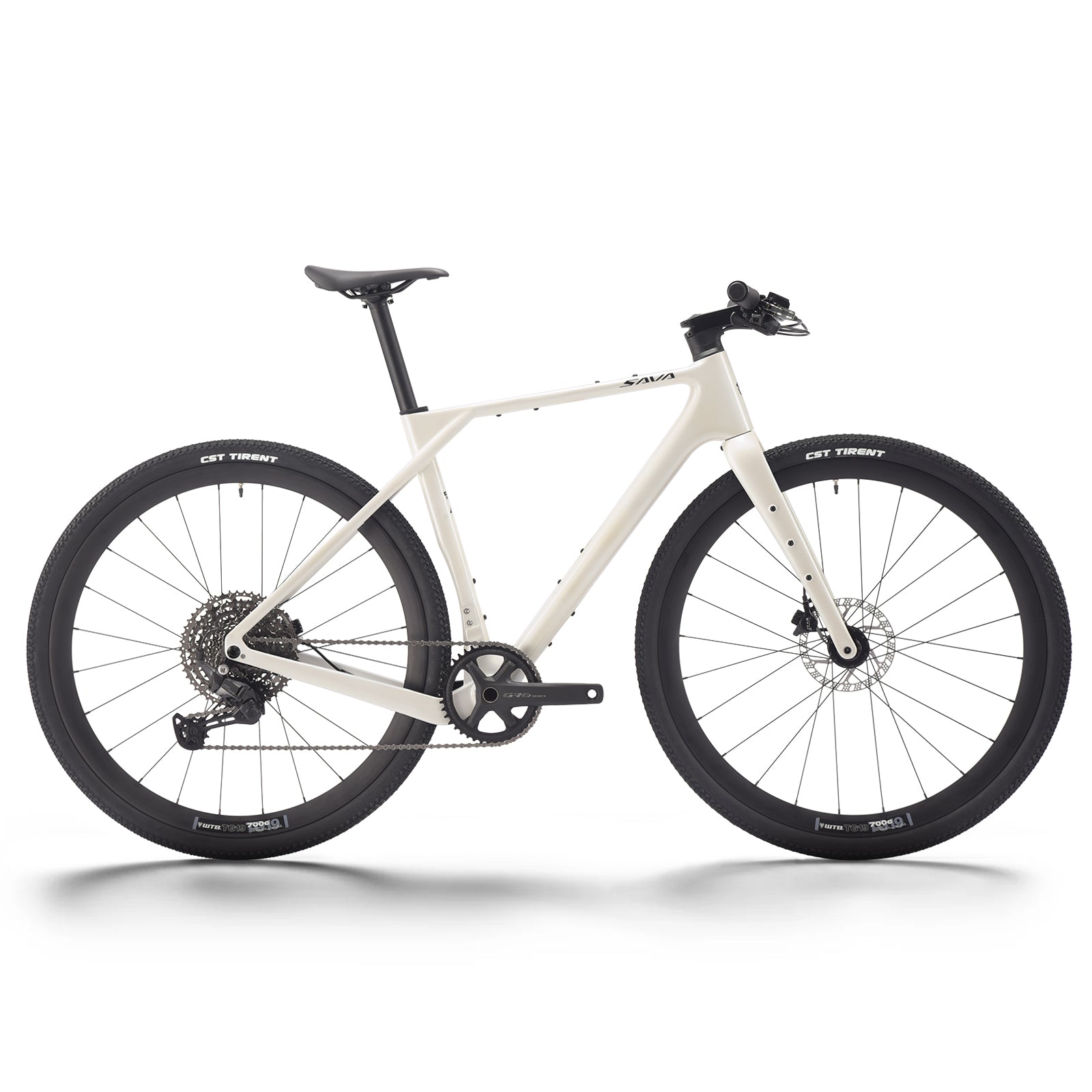

SAVA Gelaro SF6|shimano cues u6020|elegant white

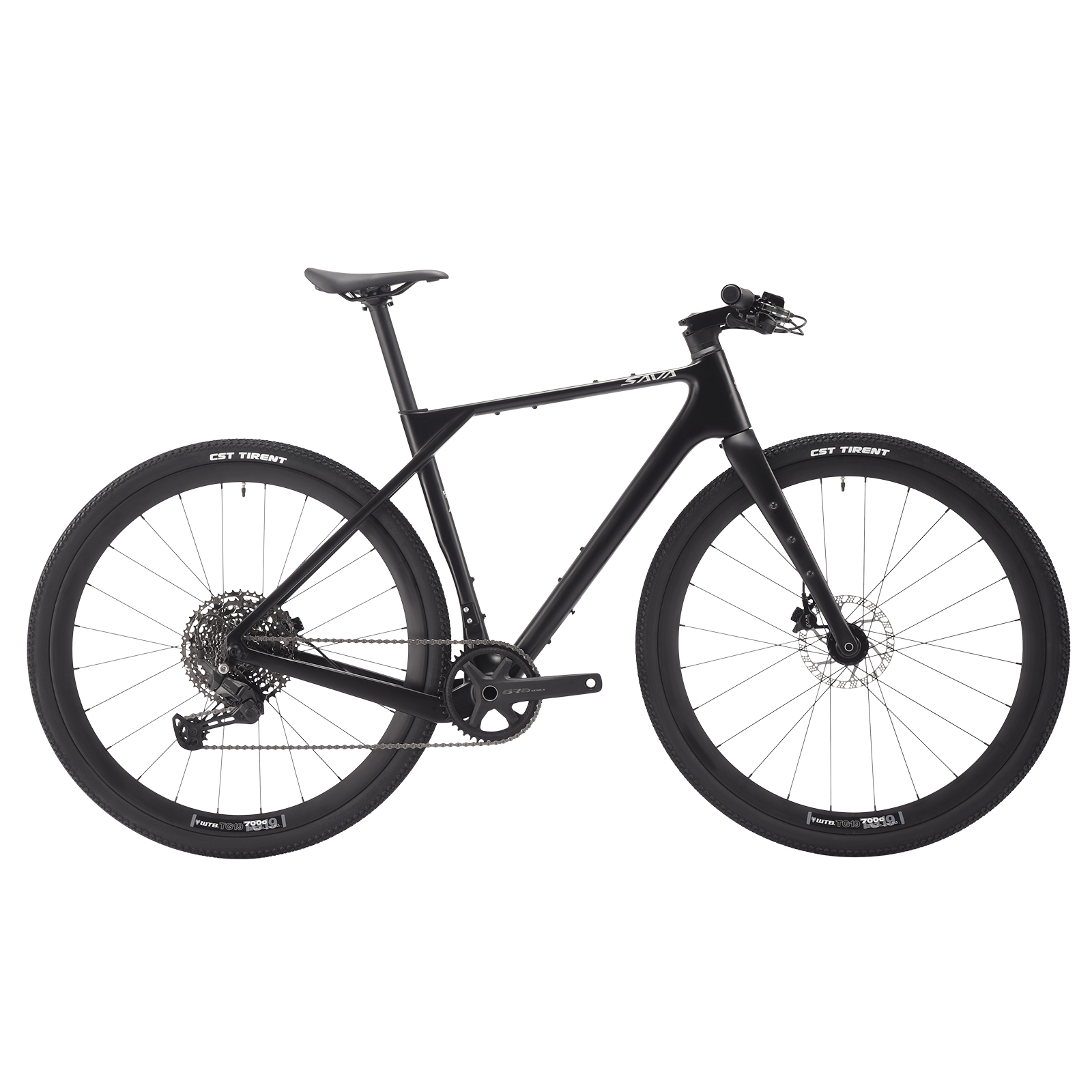

sava gelaro sf6|shimano cues|classc black

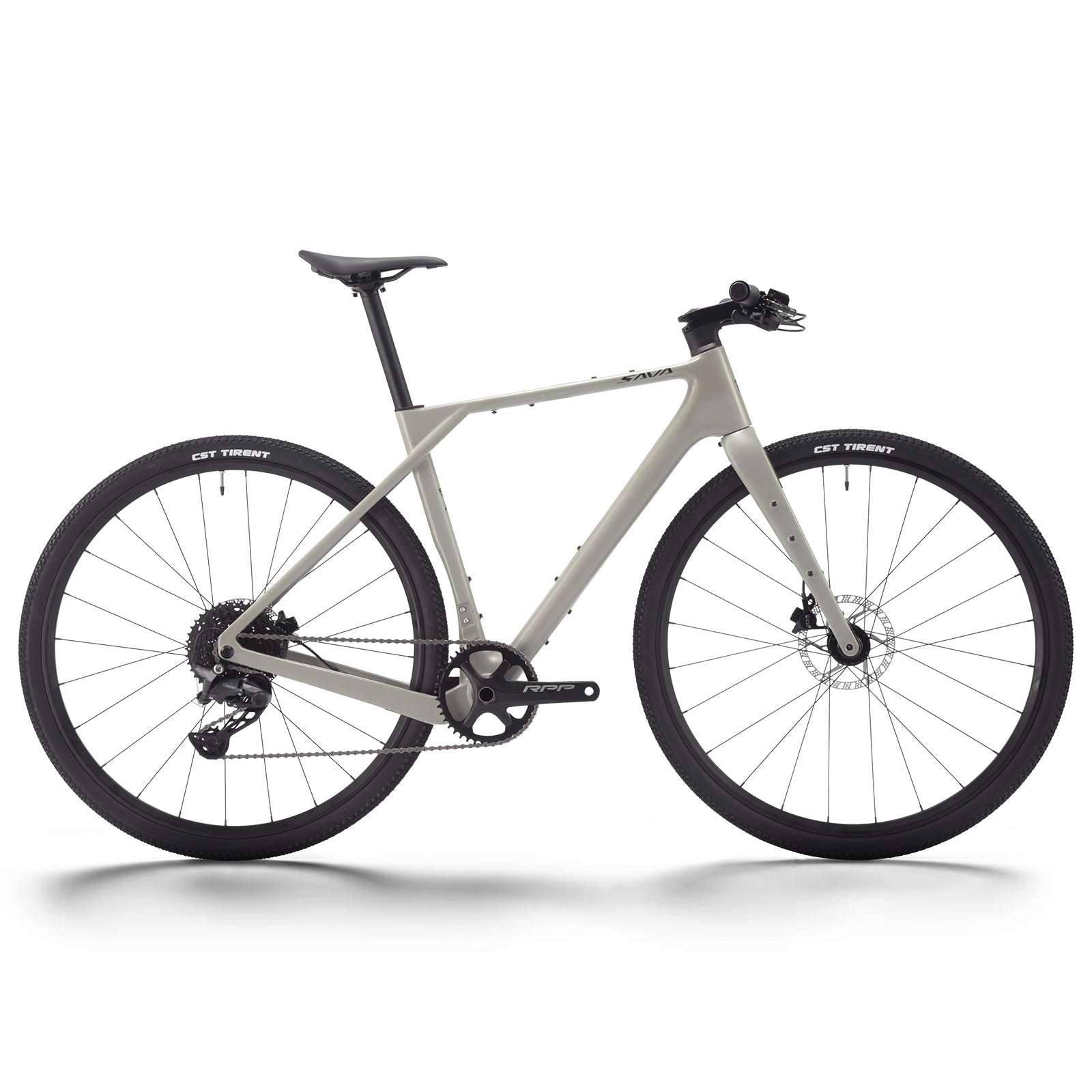

SAVA Gelaro sf6-mist grey
SAVA Gelaro SF6-U6020-Desert Gold
SAVA Gelaro SF6-U6020-Elegant White
Flat handlebar-sava gelaro sf6|cues u6020
carbon fiber fork|sava gelaro sf6|cues u6020
40c tries|sava gelaro sf6|cues u6020
carbon fiber frame|sava gelaro sf6|cues u6020
hollow crankset|sava gelaro sf6|cues u6020
rear fork|sava gelaro sf6|cues u6020
hydraulisc disc brake|sava gelaro sf6|cues u6020
shifter lever|sava gelaro sf6|cues u6020
comfortable saddle|sava gelaro sf6|cues u6020
Gelaro sf6 video
SAVA Gelaro SF6-Classic black
SAVA Gelaro SF6-Mist grey
SAVA Gelaro SF6-U6020-Desert Gold
SAVA Gelaro SF6|shimano cues u6020|elegant white
sava gelaro sf6|shimano cues|classc black
SAVA Gelaro sf6-mist grey
SAVA Gelaro SF6-U6020-Desert Gold
SAVA Gelaro SF6-U6020-Elegant White
Flat handlebar-sava gelaro sf6|cues u6020
carbon fiber fork|sava gelaro sf6|cues u6020
40c tries|sava gelaro sf6|cues u6020
carbon fiber frame|sava gelaro sf6|cues u6020
hollow crankset|sava gelaro sf6|cues u6020
rear fork|sava gelaro sf6|cues u6020
hydraulisc disc brake|sava gelaro sf6|cues u6020
shifter lever|sava gelaro sf6|cues u6020
comfortable saddle|sava gelaro sf6|cues u6020
Gelaro sf6 video

SAVA R11 カーボンファイバー グラベル ロードバイク オールロードバイク 18 スピード

$1,399.00
/
税込み。 送料はチェックアウト時に計算されます。
サイズ
色
Groupset
サイズチャート
 R21 frame geometry
Parameter 470(XS) 490(S) 510(M) 535(L) 550(XL) 580(XXL)
Rider Height(cm)
Below 166cm
166-174cm
 175-180cm
180-186cm
186-192cm
 -
Rider Height(ft/in)
Below5‘5’‘
5‘5’‘-5’8‘’
 5‘8’‘-5’10‘’
5‘10’‘-6‘1’‘
6‘1’‘-6’3‘’
A Seat Tube (mm) 470 480 510 550 580 580
B Top Tube (mm) 512.4 530.1 557.6 576.2 591.9 604.8
C BB Drop(mm) 75 75 75 75 75 75
D Chainstay (mm) 430 430 430 430 430 430
E Seat Angle (°) 74° 74° 73° 73° 73° 73°
F Head Angle (°) 70.3° 70.3° 70.3° 70.3° 70.3° 70.3°
G Front  Center(mm) 582.2 601.1 618.1 638.1 655.8 664.4
H HeadTube (mm) 110 140 160 190 210 220
I Fork Offset (mm) 50 50 50 50 50 50
J Reach (mm) 360 369 380 390 400 410
K Stack (mm) 533.6 561.8 580.6 608.9 627.7 637.1
L Fork Length(mm) 394 394 394 394 394 394
M Wheelbase (mm) 1000.7 1019.8 1037.6 1057.7 1074.4 1087.8

N Standover(mm)
769.8
792.29
810.6
837.97
851.94
869.8
  • 在庫残りわずか - 10 個のアイテムが残っています
  • 途中の在庫
Guarantee safe & secure checkout
  • Free Shipping
  • Home Delivery

カーボン製グラベルバイクのリーダーである SAVA のカーボン製グラベルロードバイクは、平坦な道、砂利道、複雑な道など、冒険的な地形での多用途性、コンプライアンス、長距離走行の効率性を考慮して設計されています。

自転車部品リスト:

モデル: R11-R3000-18S グラベル ディスクブレーキ ロードバイク
推奨サイズは参考値です。 特定のサイズ要件については、注文する前にフレームのサイズ図で測定を確認してください。

165cm～175cmの場合は47cm  5'4''-5'7''

171cm～181cmの場合は51cm 5'6''-5'9''

183cm～193cmの場合は54cm  6 ' -6'3''

189-199cm以上の場合は56cm   6' 2''- 6'5''

SAVA carbon gravel road bike size guide

仕様：

フレームサイズ47cm/51cm/54cm/56cm
ホイールサイズ700C
重さ9.5キロ （重量はサイズによって約5％程度変わります）
最大積載重量150kg
パッケージサイズ1300*200*700
色グレー、グリーン
フレーム素材カーボンファイバー
フォークカーボンファイバー
ハンドルバー合金、幅420×31.8mm
ヘッドセット28.6×41.8-52×39.8mm
幹合金、31.8*28.6*100mm
サドルYBTフォーム
シートポストカーボン 350mm
シフトレバー シマノ ソラ ST-3000
フロントディレイラーシマノ ソラ FD-3000F
リアディレイラーシマノ ソラ RD-3000
ブレーキAR18、140mmブレーキディスク
フリーホイール9速、11-32t
クランクセット50/34T*170mmクランク脚
鎖ケーエムシー110L
ペダルフルアロイペダル
ホイールセット700*14G*28H F/V 22.5*30mm
ハブXY、スルーアクスルシステム：M12*100 /M12*142
タイヤCST、700*40 C1870N
アクセサリーマルチアセンブルツール、ユーザーマニュアル


標準ブレーキは左手でフロントブレーキ、右手でリアブレーキを操作するように設定されていますが、変更をご希望の場合はお知らせください。

バイクの詳細:

SAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure BikeSAVA R11 Carbon Fiber Gravel Road Bike All-terrain Cross-Country Racing Bicycle 18 Speed Disc Brake Adventure Bike

SPECIFICATIONS:

Model 2025 SAVA Gelaro SF6 R21-U6020-10S 2025 SAVA Gelaro SF6 R21-U6000-11S
Weight About 10.4kg（22.9lbs） About 10.4kg（22.9lbs）
Frame size 47cm,49cm,51cm,53cm,55cm,58cm 47cm,49cm,51cm,53cm,55cm,58cm
Color Mist Grey,Desert Gold,Elegant White,Classic Black Mist Grey,Desert Gold,Elegant White,Classic Black



FRAMESET

bicycle frame Frame R21 frame T800 Carbon Fiber R21 ,T800 carbon fiber
bicycle fork Fork  R21 fork,T800 carbon fiber R21,T800 carbon fiber
bicycle seatpost Seat post Aluminum,31.6*350mm Aluminum,31.6*350mm
bicycle headset Headset JY,Bearing JY,Bearing

DRIVETRAIN

rear derailleur Rear Derailleur SHIMANO CUES RD-U6020-10,SGS 10-SPEED SHIMANO CUES RD-U6000
crankset Crankset RPP-FD16S-TT,11/128*42T*170mm FC-GR6-A1 NW-42TSteel*170MM
cassette Cassette CS-M6010 11-40T SHIMANO CS-LG400-11,CUES,11-SPEED, 11-13-15-17-20-23-26-30-36-43-50T
shift lever Shifters SHIMANO CUES SL-U6000-10R, SHIMANO SL-U6000-11R
Brakes IV015,Hydraulic Disc Brake IV015,Hydraulic Disc Brake
chain Chain SHIMANO CN-LG500 SHIMANO CN-LG500

WHEELSETS

bicycle wheel Wheels Aluminum,DA-26,29*24H*14G Aluminum,700C*24H 19*24.5*36MM
bicycle rotors Rotors  160MM  160MM
bicycle tires Tires 700*40C 1870N DK27 700*40C 1870N DK27
bicycle hubs Hubs

M12*14G/24H

 M12*14G/24H
COMPONENTS
flat handlebar Handlebar Aluminum ,Flat bar,φ22.2*31.8*680mm 9°*H10 Aluminum ,Flat bar,φ22.2*31.8*680mm 9°*H10
bicycle saddle Saddle YBT-K785,pu YBT-K785,pu
bicycle pedal Pedal Aluminum, 9/16” universal(free include) Aluminum, universal 9/16”

The standard brake is set to control the front brake with the left hand and the rear brake with the right hand, please let us know if you want to change it.

 R21 frame geometry
Parameter 470(XS) 490(S) 510(M) 535(L) 550(XL) 580(XXL)
Rider Height(cm)
Below 166cm
166-174cm
 175-180cm
180-186cm
186-192cm
 -
Rider Height(ft/in)
Below5‘5’‘
5‘5’‘-5’8‘’
 5‘8’‘-5’10‘’
5‘10’‘-6‘1’‘
6‘1’‘-6’3‘’
A Seat Tube (mm) 470 480 510 550 580 580
B Top Tube (mm) 512.4 530.1 557.6 576.2 591.9 604.8
C BB Drop(mm) 75 75 75 75 75 75
D Chainstay (mm) 430 430 430 430 430 430
E Seat Angle (°) 74° 74° 73° 73° 73° 73°
F Head Angle (°) 70.3° 70.3° 70.3° 70.3° 70.3° 70.3°
G Front  Center(mm) 582.2 601.1 618.1 638.1 655.8 664.4
H HeadTube (mm) 110 140 160 190 210 220
I Fork Offset (mm) 50 50 50 50 50 50
J Reach (mm) 360 369 380 390 400 410
K Stack (mm) 533.6 561.8 580.6 608.9 627.7 637.1
L Fork Length(mm) 394 394 394 394 394 394
M Wheelbase (mm) 1000.7 1019.8 1037.6 1057.7 1074.4 1087.8

N Standover(mm)
769.8
792.29
810.6
837.97
851.94
869.8

1.自転車の発送元:

場所:
1つの。 米国倉庫からの発送 米国（ハワイ、プエルトリコを除く）にのみ発送可能です。
b. ヨーロッパの倉庫から発送 ヨーロッパ諸国にのみ発送可能
c. 中国の工場から出荷世界中に発送可能

2. 配送時間、配送方法、配送料

米国の倉庫から発送:

国

配送方法

配送時間

送料

税

 アメリカ合衆国

フェデックス、UPS

約3〜5営業日

無料

無料


SAVA工場から発送:

知らせ：ご注文をお受けした後。通常、生産、組み立て、デバッグ、梱包、発送には6〜8営業日かかります（一部の新モデルは10〜13営業日かかる場合があります）。

国

到着予定時刻

配送方法

税

アメリカ合衆国

約10～16営業日

SF、フェデックス

無料

カナダ

現在カナダではご利用いただけません





メキシコ

約10～16営業日

SF、UPS

顧客の支払い

EU諸国

について 12～18営業日

UPS、DHL

無料

アジア

約8～15営業日

SF、EMS

無料

オーストラリア

約15～25営業日

専用ロジスティクス

顧客の支払い

英国

約12～18営業日

DPDA の

顧客の支払い

南アメリカ

約20～35営業日

専用ロジスティクス

顧客の支払い

アフリカ

約20～35営業日

専用ロジスティクス

顧客の支払い



EU倉庫から発送:

オーストリア、ベルギー、チェコ

共和国、ポーランド、ポルトガル、

ルーマニア、セルビア、デンマーク、スロバキア、

スロベニア、スペイン、スウェーデン、スイス、

トルコ、フィンランド、フランス、ギリシャ、

ハンガリー、イタリア、ノルウェー、オランダ、

DHL、DPD

約3〜7営業日

送料無料

非課税



注：上記の配送時間は、過去の配送記録に基づいて設定されたものであり、不可抗力の要因が発生した場合は、配送が遅れる可能性がありますので、ご了承ください。
