Why you will love it
- T800 carbon fiber frame, seat post, fork
- Shimano 105 R7000 Groupset
- Semi-mechanical disc brake
- Internal cable routing design
- Wind tunnel design frame
- KMC chain
- 700C*28C Continental tires
Enjoy your ride

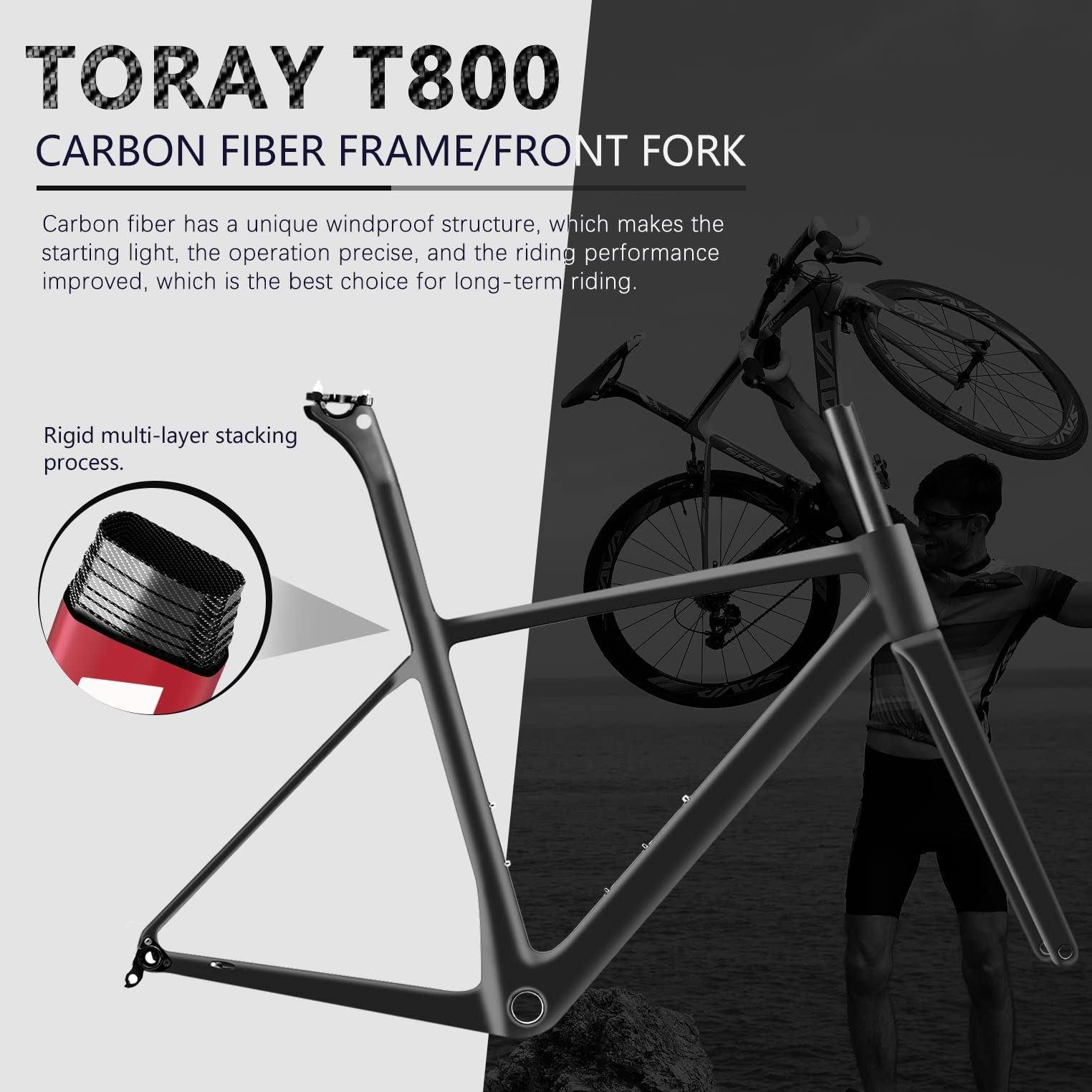

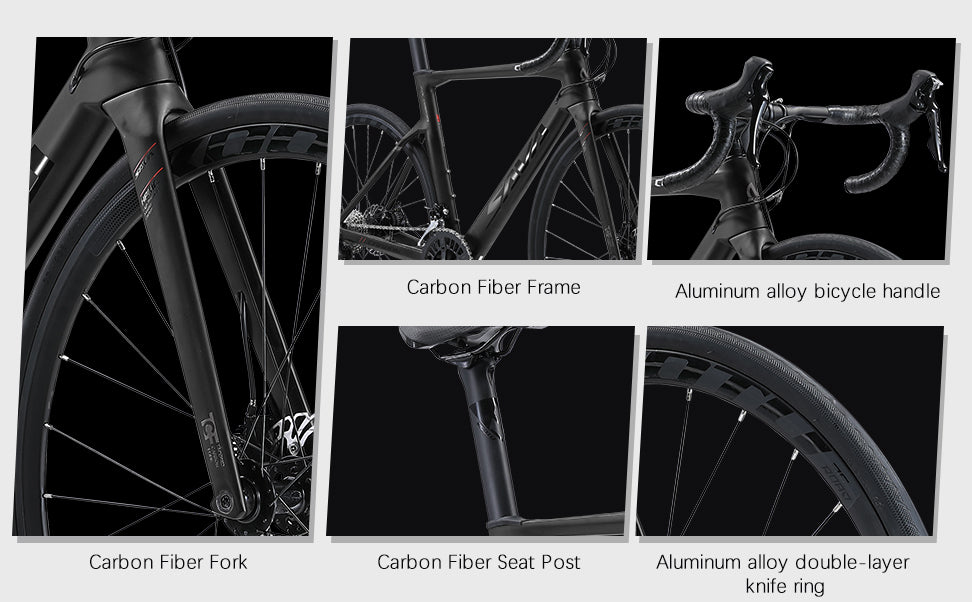

Lightweight carbon fiber frame
With T800 carbon fiber frame, fork, seatpost
Carbon fiber hardness test
Strong, durable, rigid

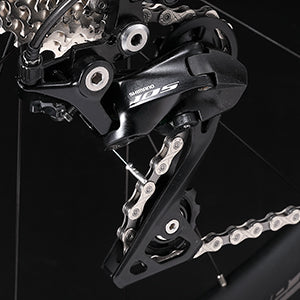

Shimano 105 R7000 groupset
Provide smooth gear shifting and shifting experience

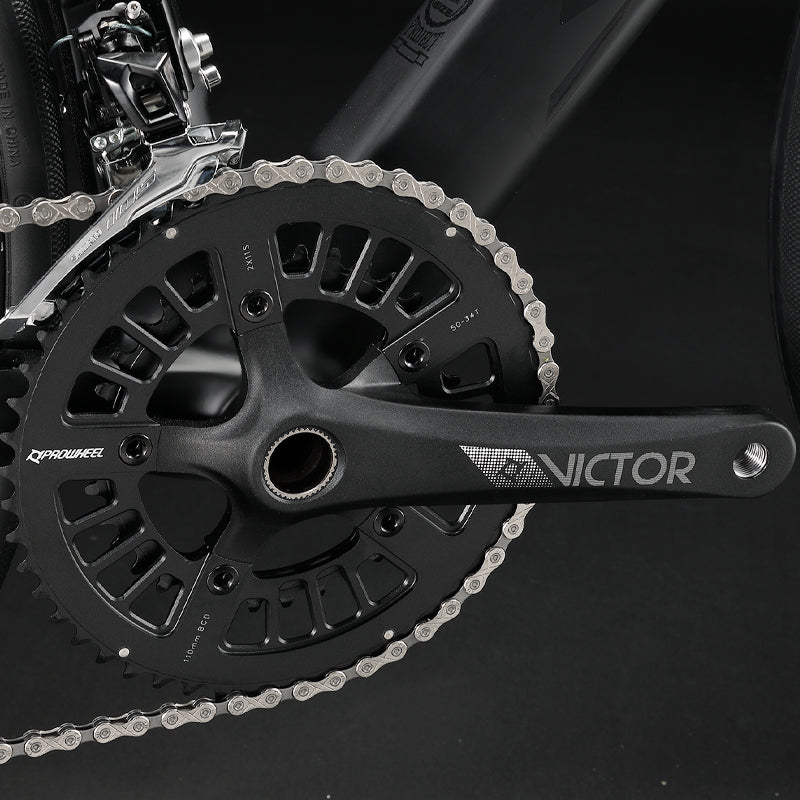

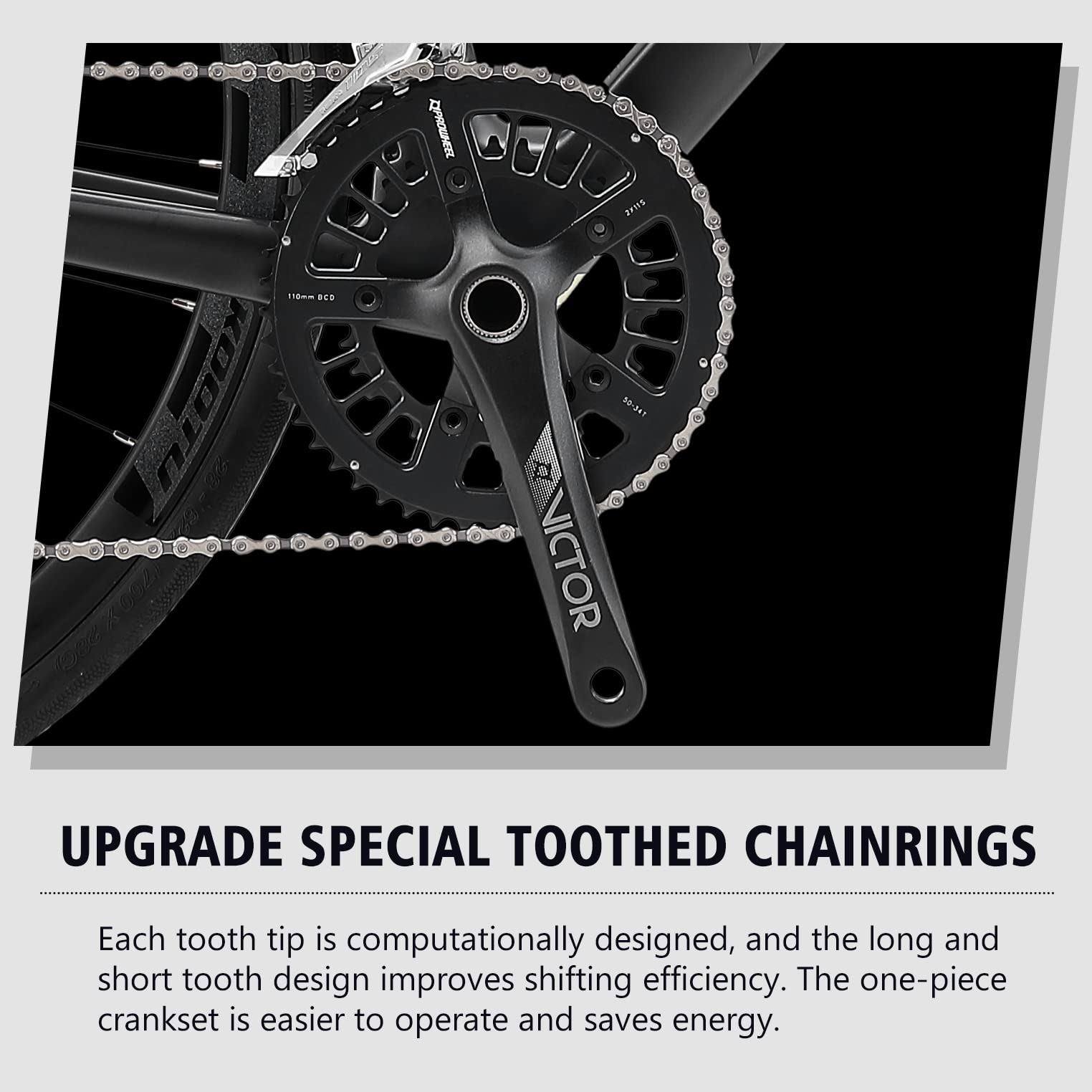

One piece crankset
Hollow integrated crankset lighter in weight, with greater bearing capacity and less deformation after being subjected to force. The power transmission is greatly increased, and the riding is faster

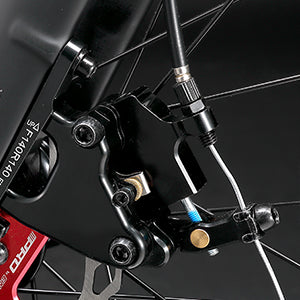

Big circle disc brake
Provide a long-lasting and stronger fasting power, better than conventional v-brake system

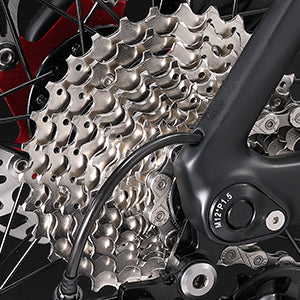

Shimano 105 R7000 cassette
The R7000 cassette can be used in a variety of road and mixed road ratios, high-performace rider-tuned gearing with a wider gear selection

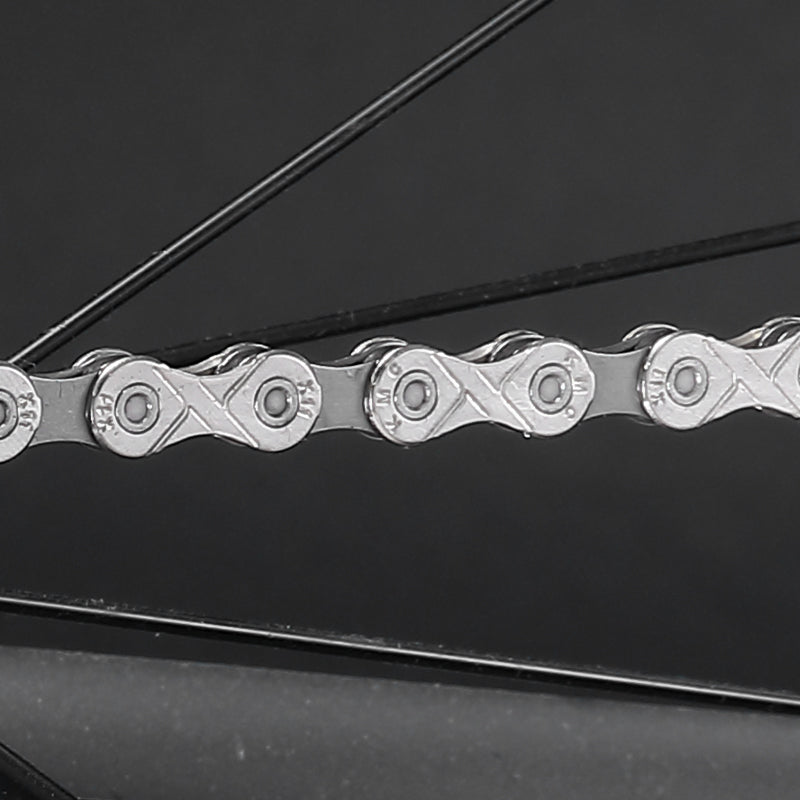

KMC X11 chain
High quality and good shifting performance
700C*28C CST tires
Excellent grip, a great product that professional player desire
Model |
R08-R7000-22S |
Wheel Size |
700C |
Frame Size |
47cm/51cm/54cm/56cm |
Frame material |
T800 Carbon, M12*142 |
Fork |
T800 Carbon Fiber, M12*100 |
Gross weight |
10kg |
Load capacity |
150KG |

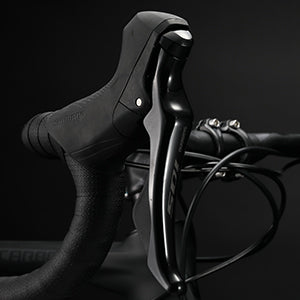

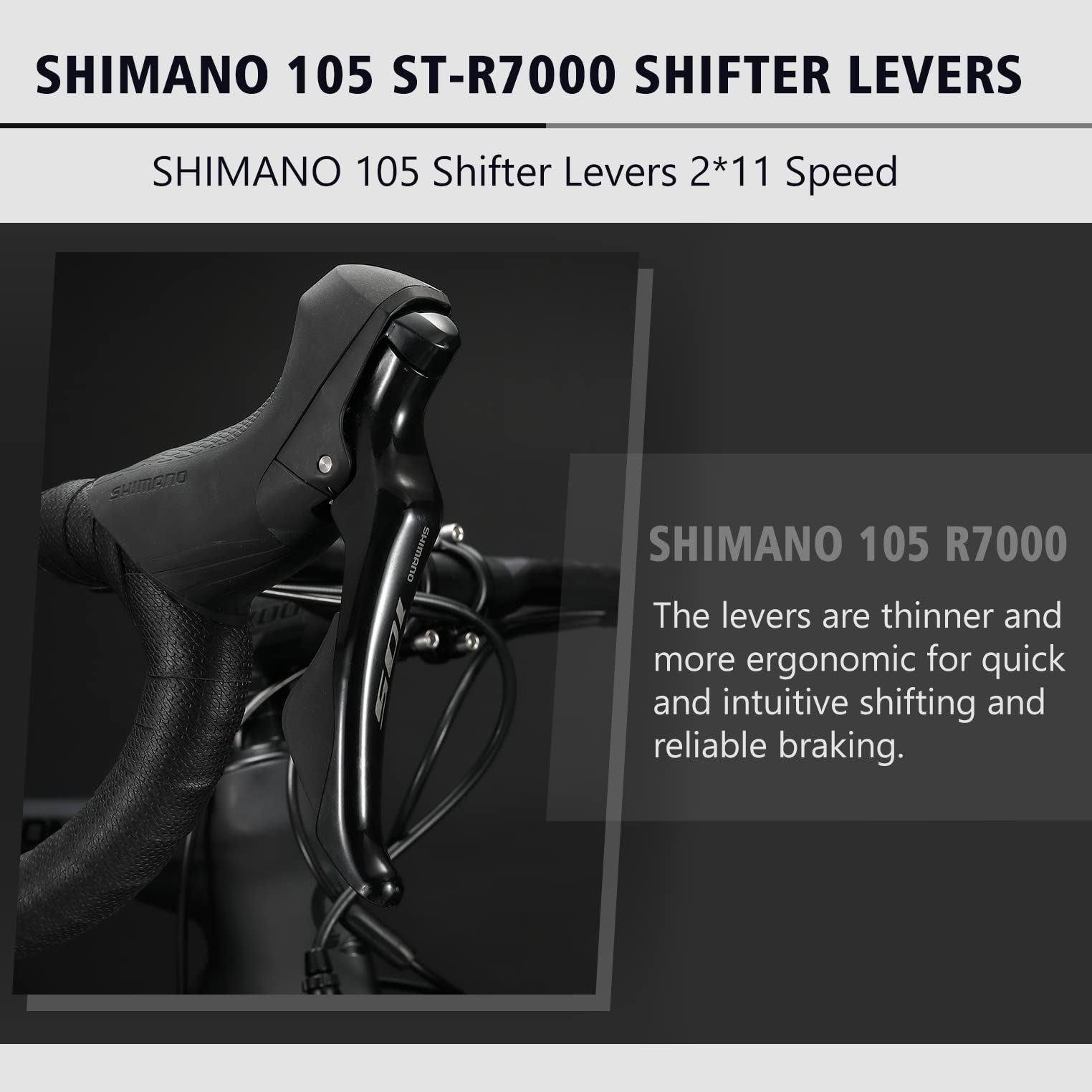

Shift lever |
SHIMANO ST-R7000, 2*11 Speed |

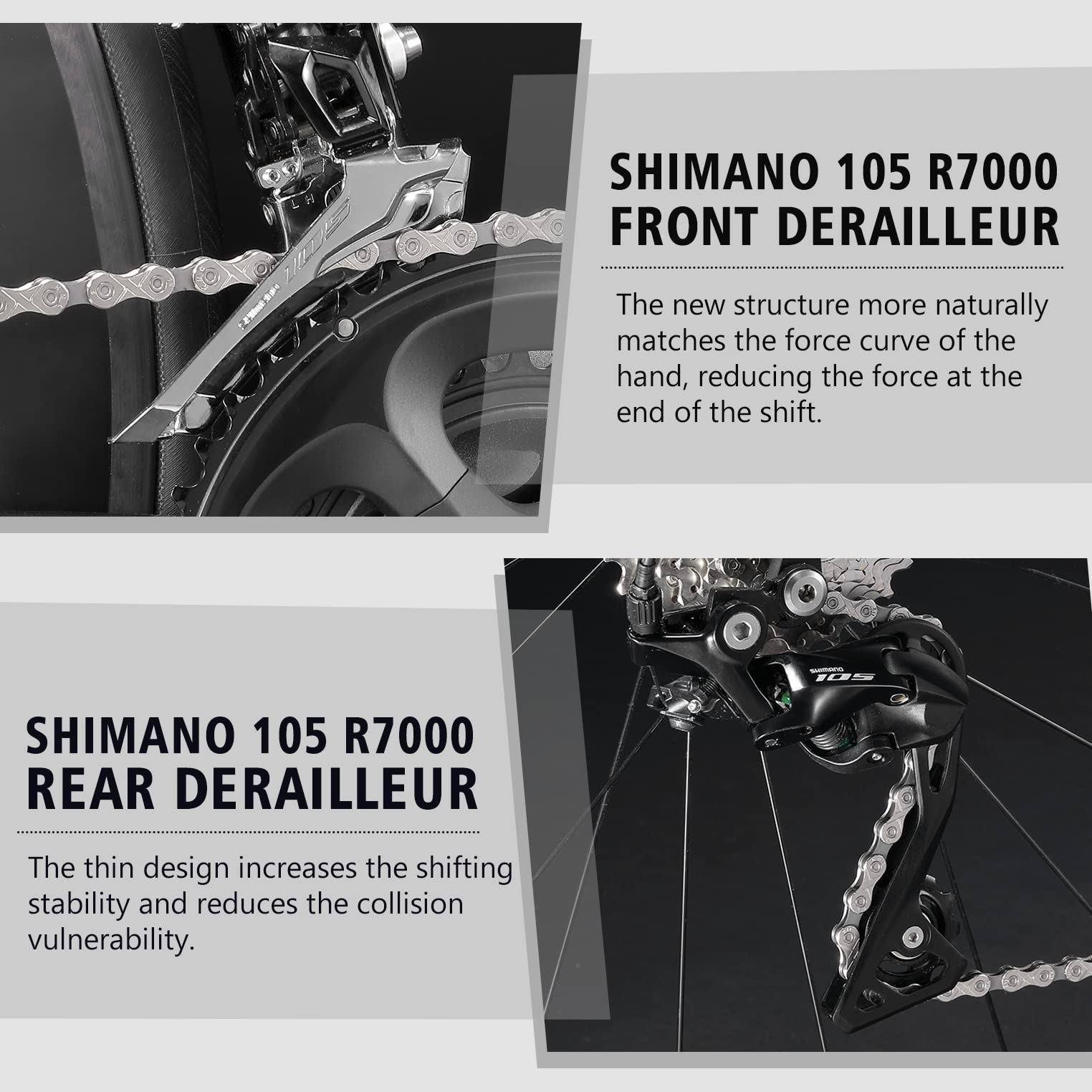

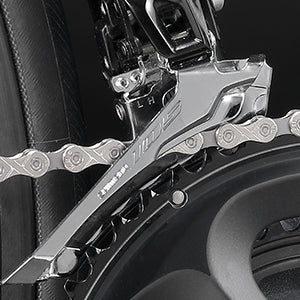

Front Derailleur |
SHIMANO FD-R7000-L, 11-SPEED, DOWN-SWING |
Rear Derailleur |
SHIMANO RD-R7000, GS |
Flywheel |
CS-R7000, 11-SPEED, 11-30T, BULK |
Crankset |
PROWHEEL VICTOR-621C-TT 34/50T*170mm. |
Brake caliper |
Pro A8000 ED Semi-mechanical brake |
Pedal |
LP-658A, 9/16BR black |
Chain |
KMC X11 110L, 11-speed |
Handlebar |
AL, 420 mm x 31.8 mm |
Stem |
Aluminum, 31.8 mm x 100mm |
Saddle |
YBT-6035 |
Seat post |
Carbon 350mm |

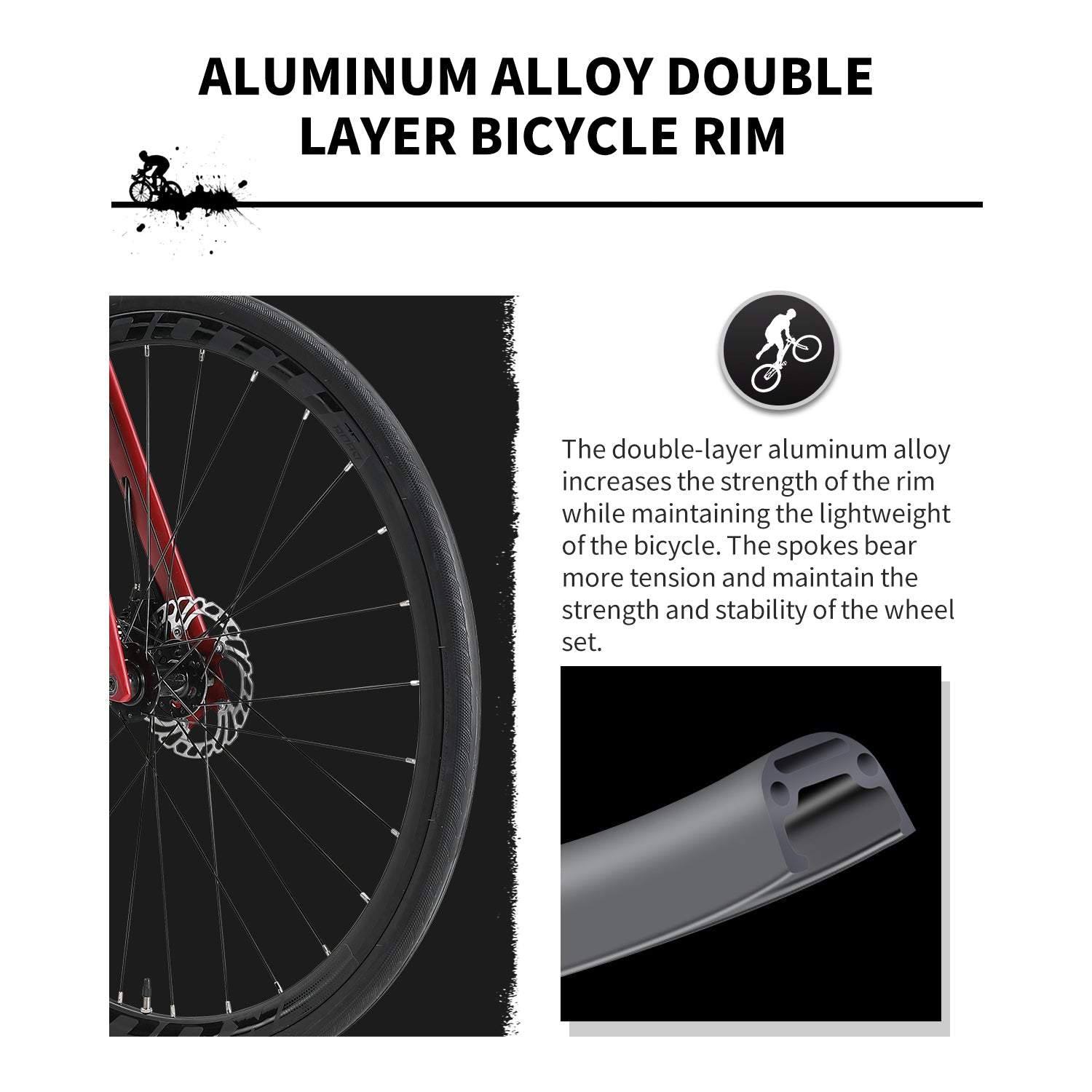

Rim |
700*14G*28H F/V 22.5*30MM |

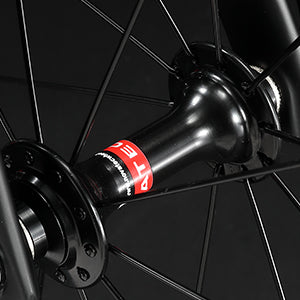

Front hub |
CHOSEN DA8596B-M12-100 14G*28H M12*100 |
Rear hub |
CHOSEN DA4467B-142 14G*28H M12*142 |
Tires |
CST C1808 700*28C DK27 |
The standard brake is set to control the front brake with the left hand and the rear brake with the right hand, please let us know if you want to change it.

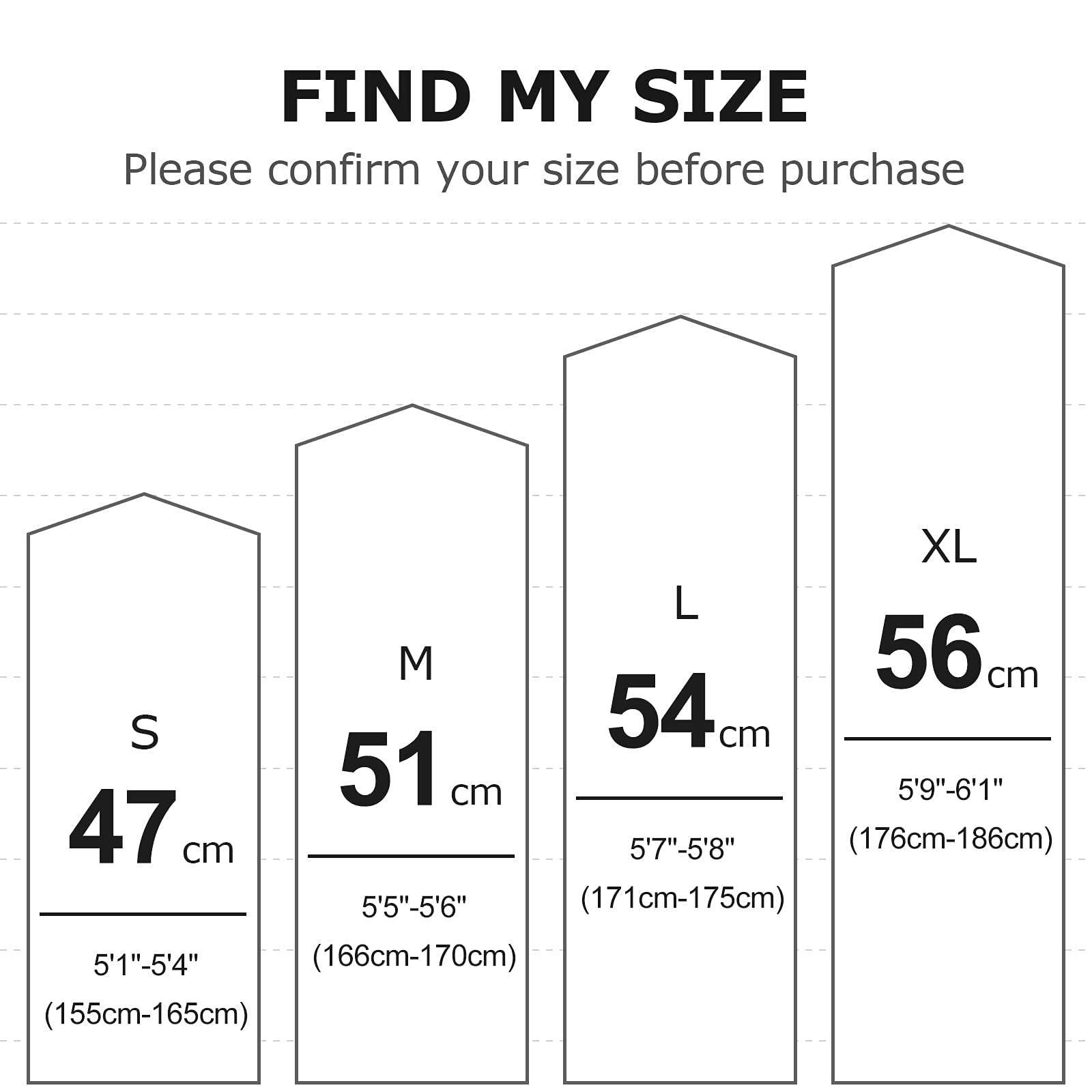

Frame size | Recommend size(cm) | Ft+In |
47cm |
158-165cm |
5'2" - 5'5" |
51cm |
166-175cm |
5'5" - 5'9'' |
54cm |
176-185cm |
5'9" - 6'1'' |
56cm |
186-190cm |
6'1"- 6'3" |
